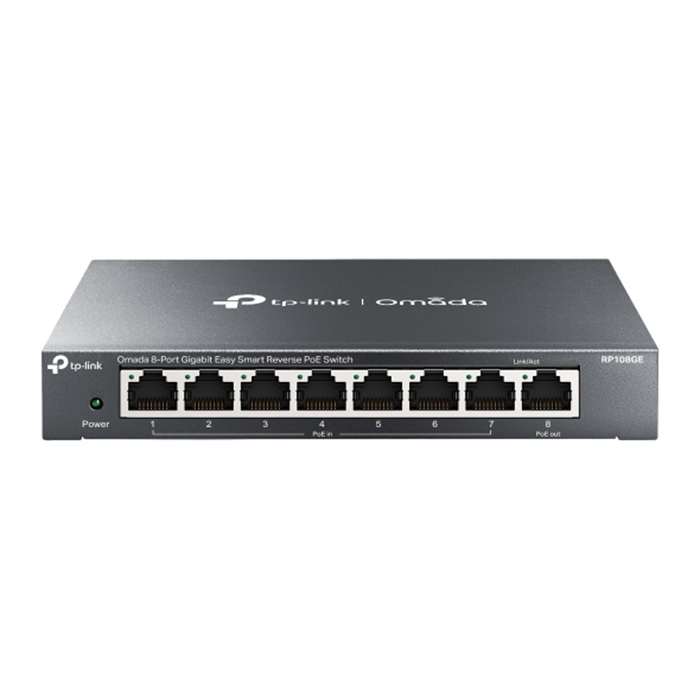

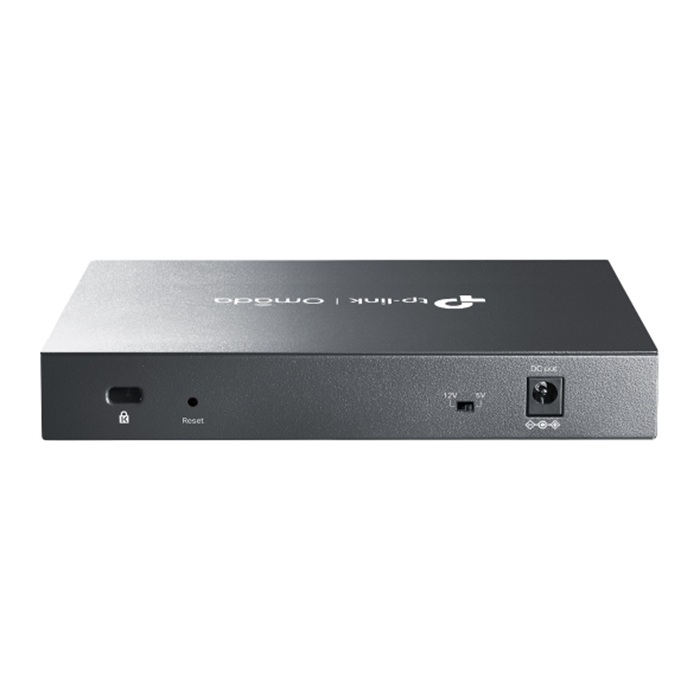

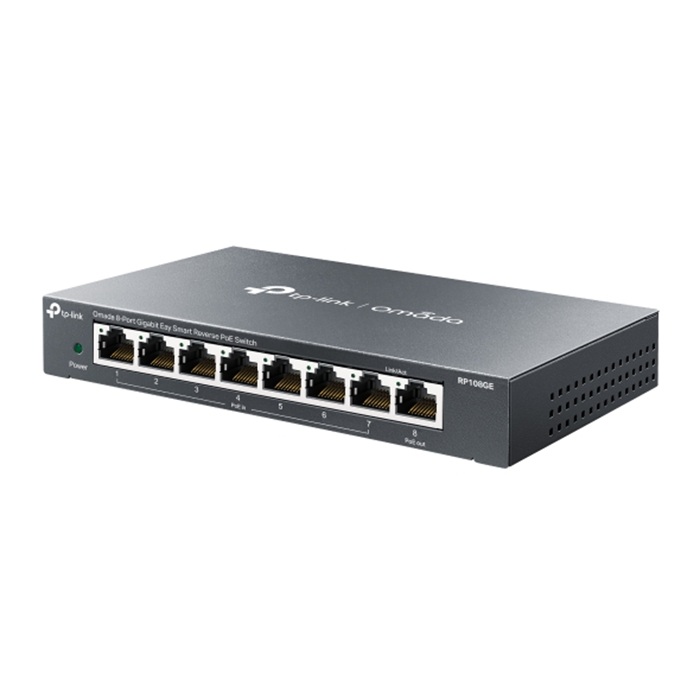

TP-Link Omada RP108GE 8-Port Gigabit Easy Smart Reverse PoE Switch
7× PoE inputs and 1× Gigabit PoE output.
DC output with switchable 5V/12V.
Web UI and utility-based management.
Energy-efficient design reduces power consumption.
Durable metal casing.
| Standards and Protocols | CSMA/CD |
| Interface | • 7× Passive PoE-in RJ45 Ports • 10/100/1000Mbps Auto-Negotiation • Voltage: 24/48 V (mixture is not supported) • Power pin of Ethernet cable: 4/5+ 7/8- • 1× Passive PoE-out RJ45 Port: • 10/100/1000Mbps Auto-Negotiation • Voltage: depending on the input voltage of PoE-in ports • Power pin of Ethernet cable: 4/5+ 7/8- • 1× DC Output Port • Voltage: 5/12 V |
| Network Media | • 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) • 100Base-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) • 1000Base-T: UTP category 5e cable (maximum 100 m) EIA/TIA-568 100 Ω STP (maximum 100 m) |
| LED | Power, Link/Act LED |
| Packet Forwarding Rate | 11.9 Mbps |
| Mac Address Table | 4 K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| IEEE Standards | IEEE802.3ab, IEEE802.3i, IEEE802.3p IEEE802.3q, IEEE802.3x, IEEE802.3u |
| Data Rates | • Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) • Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) • Gigabit Ethernet: 2000 Mbps (Full Duplex) |
| Dimensions (W × D × H) | 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm) |
| Max. Power Consumption | • 3.98 W (with no PD connected) • 18.01 W (24 V with PD connected) • 32.74 W (48 V with PD connected) |
| Max. Heat Dissipation | • 13.57 BTU/h (with no PD connected) • 61.41 BTU/h (24 V with PD connected) • 111.64 BTU/h (48 V with PD connected) |
