Tplink SG2005P-PD Best price in Dubai UAE

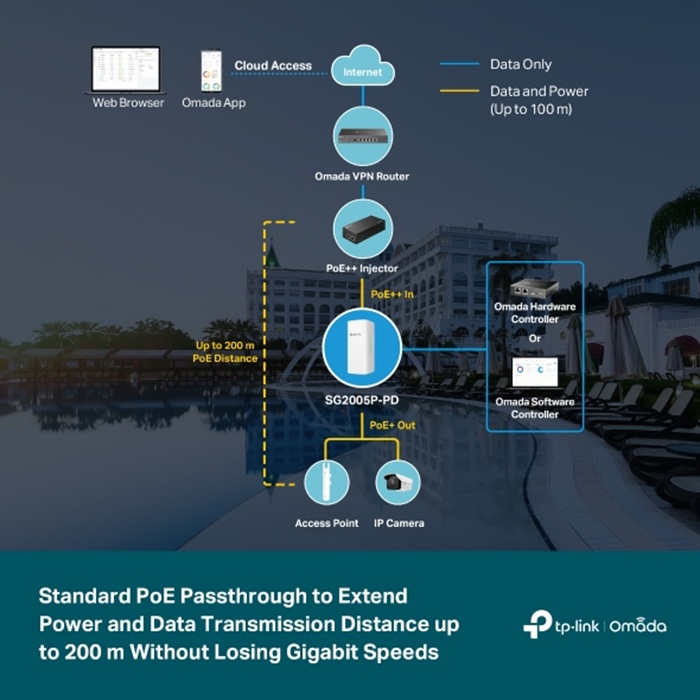

Extends PoE transmission distance up to 200 m at Gigabit speeds.

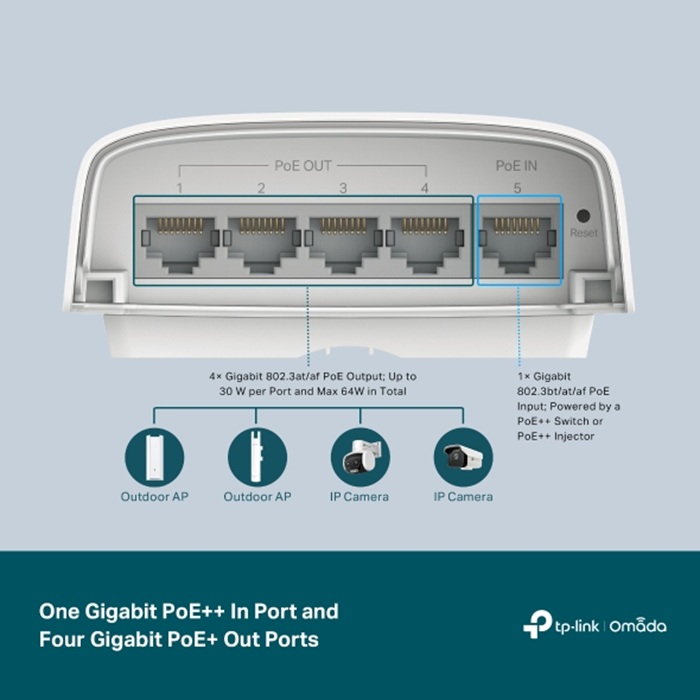

1× Gigabit PoE++ input and 4× PoE+ output ports.
PoE output budget up to 64 W, depending on the power source.
IP55 weatherproof enclosure with UV and 4 kV lightning protection.
Operates in temperatures from -40°C to 60°C.
Tplink SG2005P-PD Buy with Best Price from authorized supplier for TP-Linkproducts in UAE TP-Link Omada SG2005P-PD 5-Port Gigabit Smart PoE Switch with PoE++ Input Distributor for Africa dsrtech.ae, TP-Link Dubai
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | Obtain Power from 802.3af/at/bt PoE Source |
| PoE Ports (RJ45) | • PoE In Port: Port 5, Compliance with 802.3af/at/bt • PoE Out Ports: Ports 1–4, compliance with 802.3af/at PoE • PoE Power Budget: – 64 W when powered by 802.3bt Type 4 (90 W) – 44 W when powered by 802.3bt Type 3 (60 W) – 19 W when powered by 802.3at – 6 W when powered by 802.3af |
| Dimensions (W × D × H) | 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
| Max. Power Consumption | 71.5 W (when powered by 802.3bt Type 4 (90 W)) |
| Max. Heat Dissipation | 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
