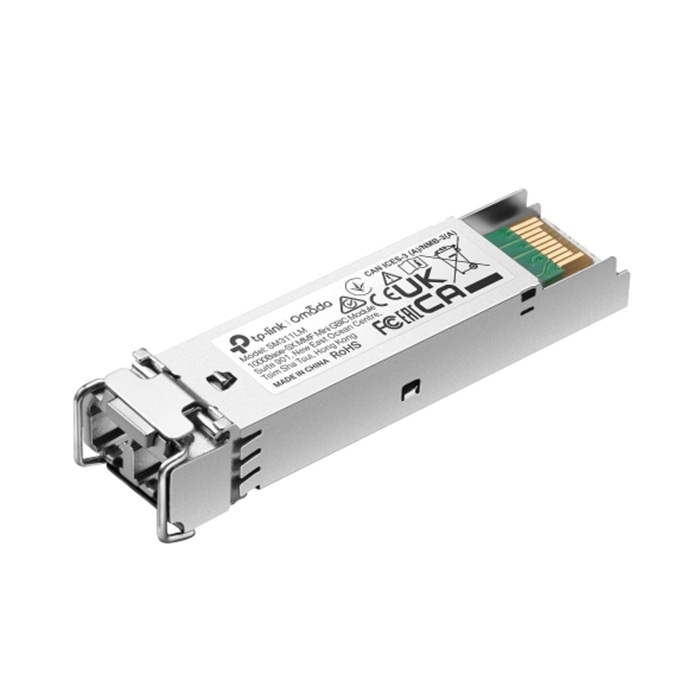

TP-Link Omada SM311LM 1000BASE-SX Multi-Mode Fiber Mini GBIC Module
Multi-mode MiniGBIC (SFP) module.
Supports Digital Diagnostic Monitoring (DDM).
Complies with SFP-MSA standards.
Hot-pluggable design.
Operating temperature: 0–70°C.
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850 nm |
| Dimensions (W × D × H) | 2.2 × 0.5 × 0.5 in (55.4 × 13.7 × 12.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550 m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Hardware Features | • DDM • SFP-MSA • Hot Swappable |
| Package Content | • SM311LM • Installation Guide |
| Environment | • Operating Temperature: 0℃~70℃ (32℉~158℉) • Storage Temperature: -40℃~80℃ (-40℉~176℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
