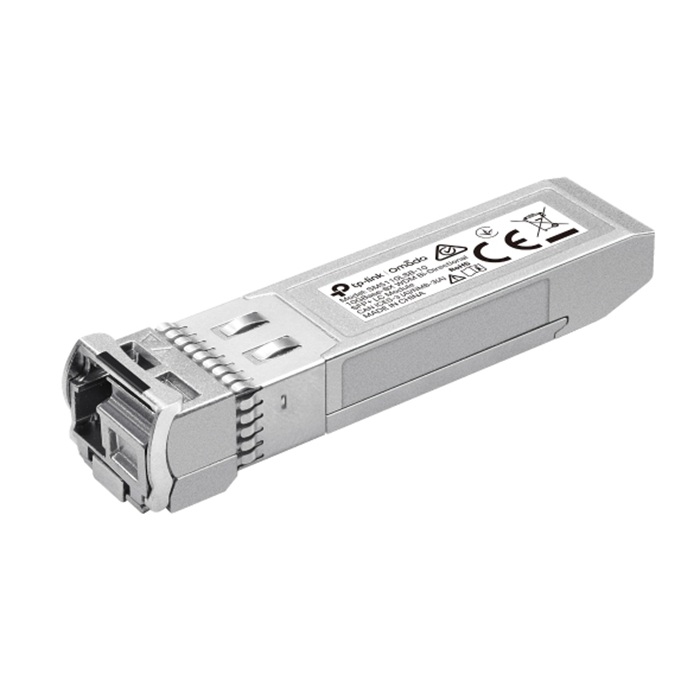

TP-Link Omada SM5110LSB-10 10GBase-BX Bi-Directional WDM SFP+ LC Module
Single-mode SFP+ LC transceiver.
WDM bidirectional transmission over a single fiber.
Hot-pluggable design.
Supports Digital Diagnostic Monitoring (DDM).
Complies with 10G SFP+ MSA standards.
Compatible with SG3428X and SG3452X switches.
| Standards and Protocols | • IEEE 802.3ae • SFF 8431, SFF 8432, SFF-8472 |
| Wave Length | • TX: 1270 nm • RX: 1330 nm |
| Power Supply | 3.3V |
| Fiber Type | 9μm/125μm Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10.3125 Gbps |
| Connector | LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0°C to 70°C (32–158 ℉) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH non-condensing • Storage Humidity: 5% to 90% RH non-condensing |
