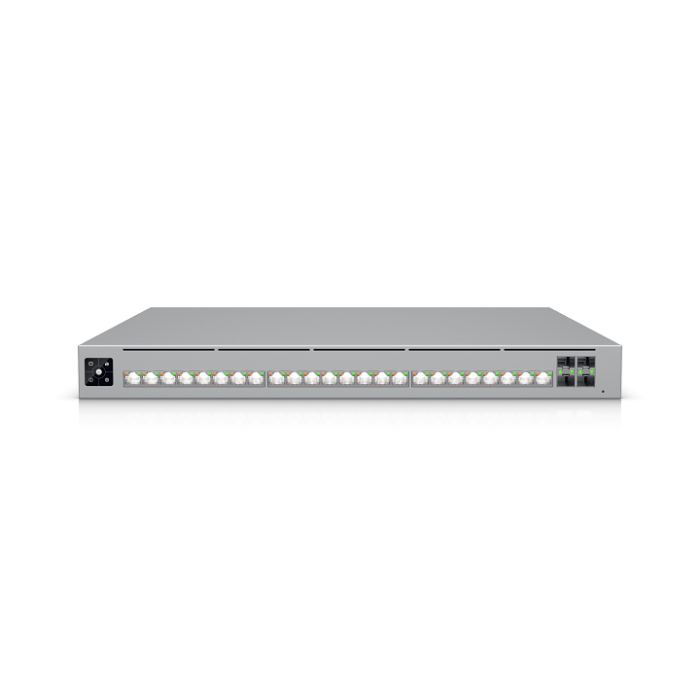

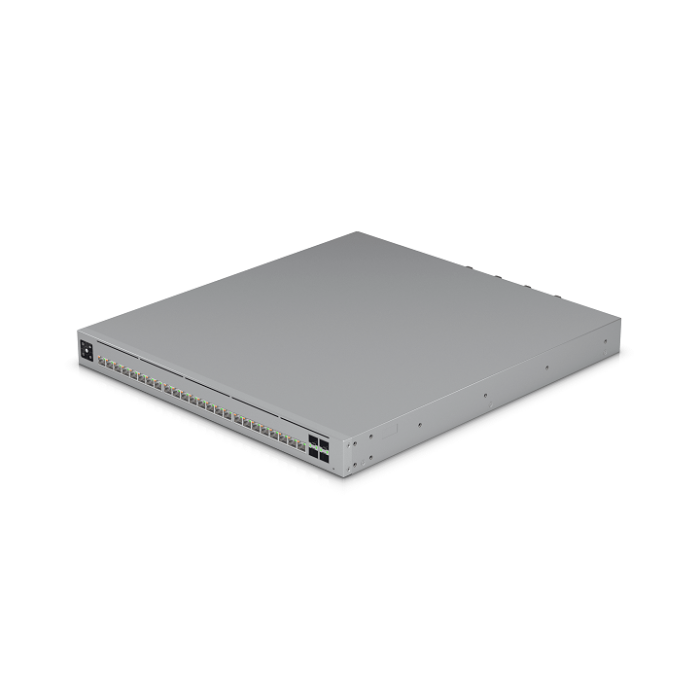

Ubiquiti ECS-24S-PoE Enterprise Campus 24S PoE Enterprise-grade 24-port Layer 3 Etherlighting PoE+++ Switch
Enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
| Dimensions | 442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5") |
| Port Layout |
1 GbE RJ45: 1 (1G/100M/10M) 2.5 GbE RJ45: 8 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45: 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 4 (25G/10G/1G) 100G QSFP28: 2 (100G) Console: 1 |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability |
200–240V AC: 1,050W 100–120V AC: 850W |

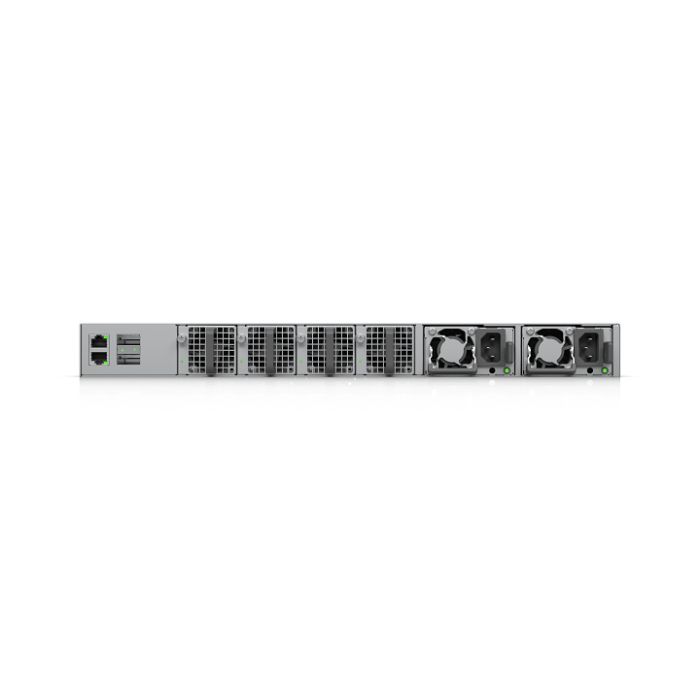

| Redundancy | Switch Stacking, (2) Hot-Swappable PSUs, (4) Hot-Swappable Fans |
| Layer 3 | Yes |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| Layer 3 Table Size |
ARP Entries: 128,000 IPv4 Routes: 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists |
IPv4: 256 MAC: 256 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing | Yes |
| Static Routing | Yes |
| Layer 2 Features | |
| Supported Features | LACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), Advanced IGMP Config (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection |
| Hardware | |
| PoE Ports | PoE+++ × 24 |
| Max PoE Wattage per Port | PoE+++: 90W |
| Max Power Consumption | 150W (Excluding PoE Output), 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet, OOB Management port, Serial Console, AR |
| Heat Dissipation | 511.8 BTU/hr (Excluding PoE Output) |
| Weight |
9.2 kg (20.3 lb) without mounting brackets 9.3 kg (20.5 lb) with mounting brackets |
| Enclosure Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks (650–1,000 mm depth) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules |
| ESD Protection | Air: +12kV, Contact: +12kV |
| Operating Temperature | -5 to 40C (23 to 104F) |
| Operating Humidity | 10 to 90% noncondensing |
| LEDs | Ethernet, System |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
