Ubiquiti Ethernet Surge Protection Outdoor - ETH-SP-G2
ESD protection for outdoor high-speed networks.
Protects outdoor Ethernet devices

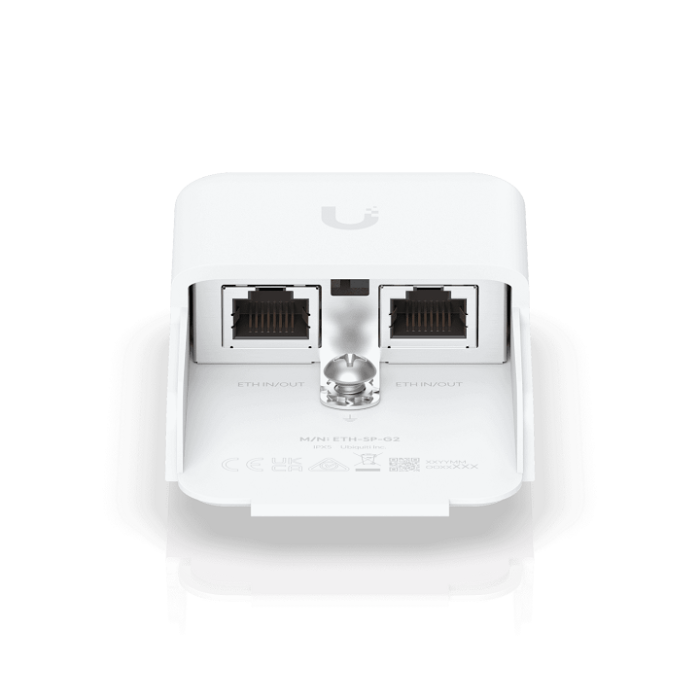

(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with 2.5 GbE networks
| Ethernet Surge Protector Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3 in) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | 2 x RJ45 female connectors |
| Data Line Protection | Up to 2.5 Gbps |
| PoE Support | Yes |
| Electrical & Surge Protection | |
| DC Spark-Over Voltage | 90 V 100 V/s |
| Max. Impulse Spark-Over Voltage | 700 V 1 kV/µs |
| Discharge Current | 10 kA+ |
| Insulation Resistance | Max. 1 G 50 V |
| Capacitance | Max. 1.0 pF 1 MHz |
| ESD Protection | Absorbs transient current with response to surge voltage from 100 V/s to 1 kV/µs |
| Environmental | |
| Operating Temperature | -30 to 65C (-22 to 149F) |
| Operating Humidity | 10 to 90% non-condensing |
| Compliance | |
| Shock & Vibration Certification | ETSI EN 300 019-1-4 |
