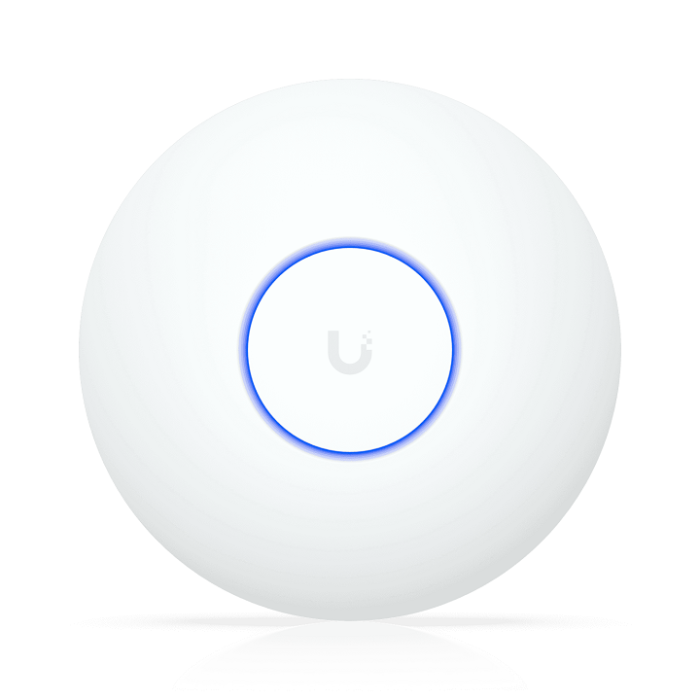

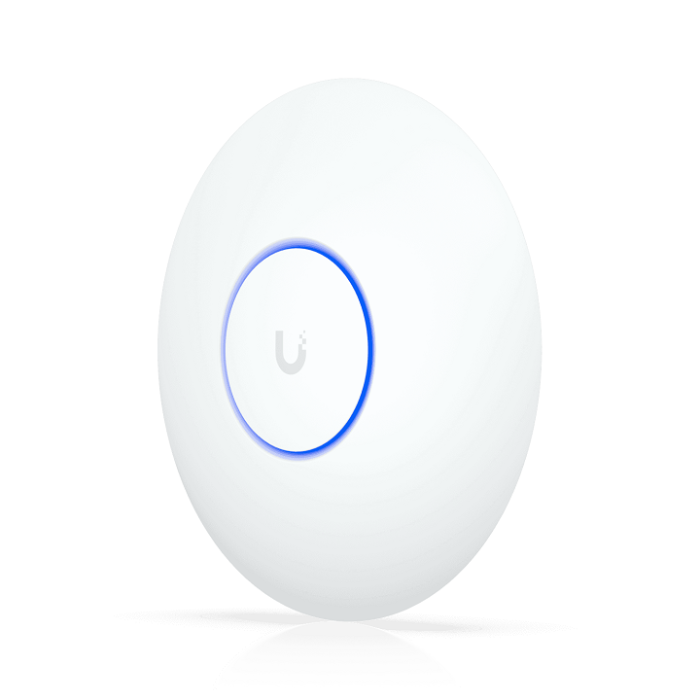

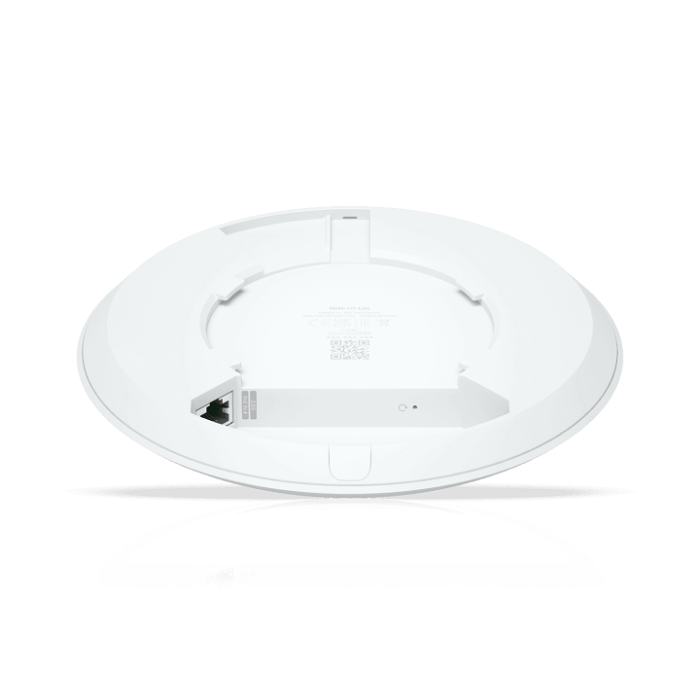

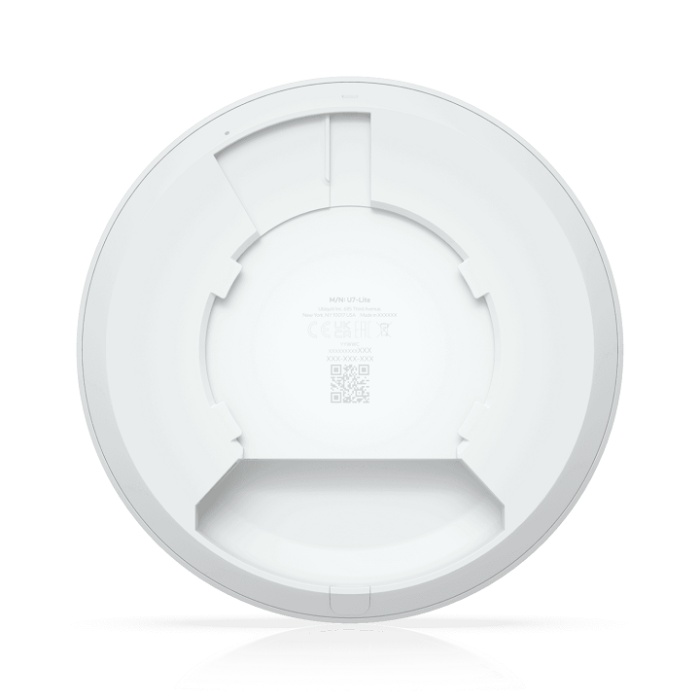

Ubiquiti U7 Lite Ceiling-Mounted WiFi 7 Access Point - U7-Lite
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
| Device Specifications | |
|---|---|
| Dimensions | 171.5 × 33 mm (6.8 × 1.3") |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE |
| Performance | |
| MIMO |
5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per radio |
| Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps – 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
| Wireless & Network Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal |
Custom Branding (Landing Page) ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| PPSK (Private Pre-Shared Key) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LEDs | System (White/Blue) |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, Anatel: 02143-25-08356 |
| Ambient Operating Temperature | -30 to 40C (-22 to 104F) |
| Ambient Operating Humidity | 5% to 95% noncondensing |
| Software Requirements | |
| UniFi Network Application | Version 9.0.114 and later |
| Mobile App (iOS) | 10.20.2 and later |
| Mobile App (Android) | 10.21.7 and later |
