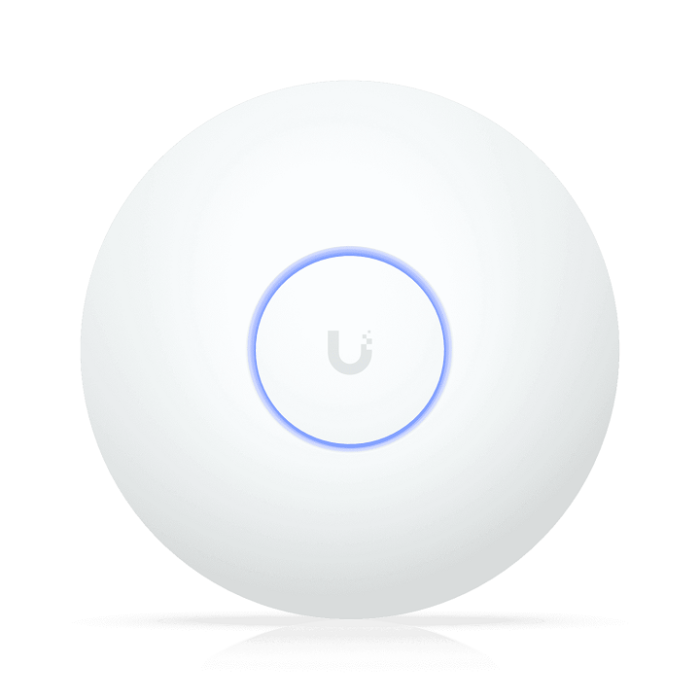

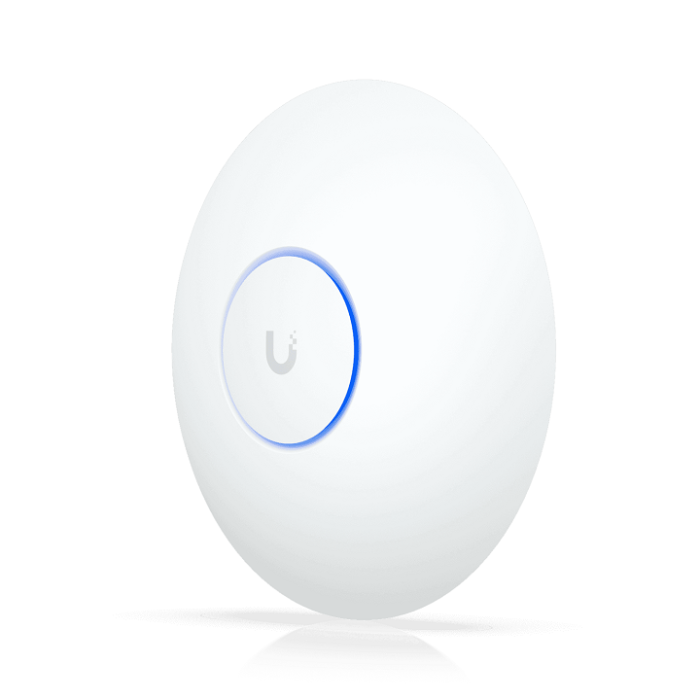

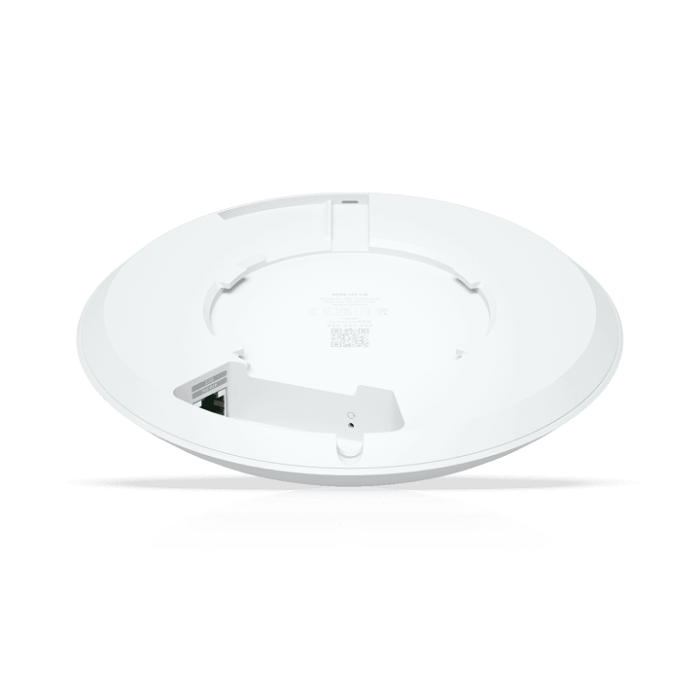

Ubiquiti U7 Long-Range Ceiling-Mount WiFi 7 Access Point - U7-LR
Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
| Device Specifications | |
|---|---|
| Dimensions | 175.7 × 43 mm (6.9 × 1.7") |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance | |
| MIMO |
5 GHz: 3×3 (DL/UL MU-MIMO) 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5 GHz: 4.3 Gbps (BW160) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
5 GHz: 6 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
5 GHz: 27 dBm 2.4 GHz: 26 dBm |
| Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps (MCS0–MCS13, NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps – 3.6 Gbps (MCS0–MCS11, NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps – 2.6 Gbps (MCS0–MCS9, NSS1/2/3, VHT 20/40/80/160) 802.11n: 6.5 Mbps – 450 Mbps (MCS0–MCS23, HT 20/40) |
| Wireless & Network Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal |
Custom Branding ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| PPSK (Private Pre-Shared Key) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 14W |
| Includes PoE Adapter | — |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System (White/Blue) |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, Anatel: 04071-25-08356 |
| Ambient Operating Temperature | -30 to 50C (-22 to 122F) |
| Ambient Operating Humidity | 5% to 95% noncondensing |
| Software Requirements | |
| UniFi Network Application | Version 9.1.120 and later |
| Mobile App (iOS) | 10.20.2 and later |
| Mobile App (Android) | 10.21.7 and later |
