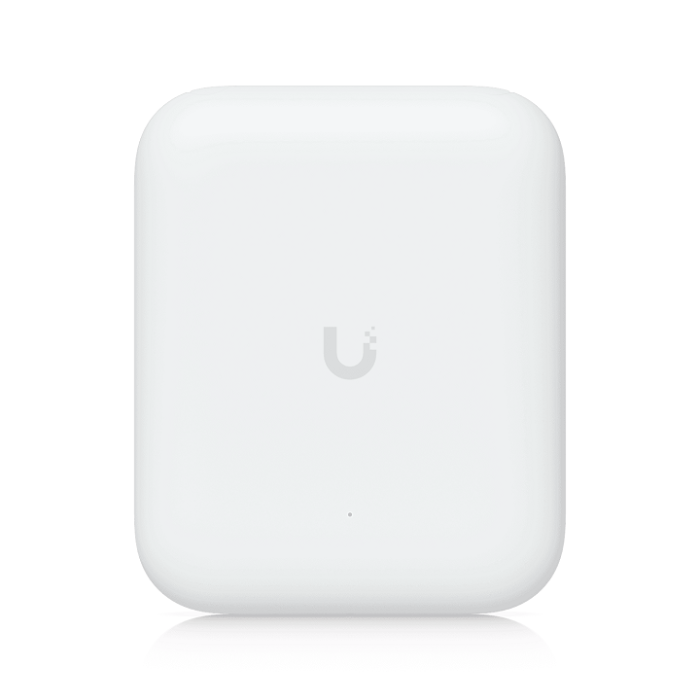

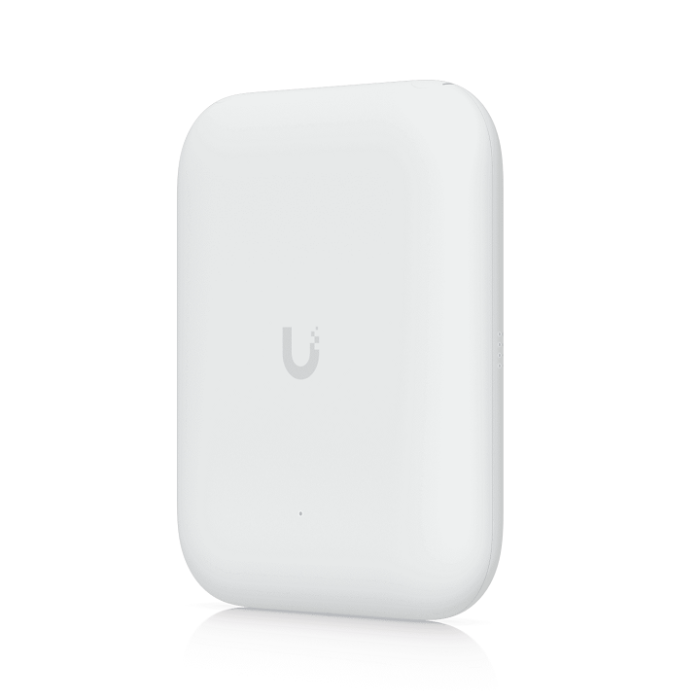

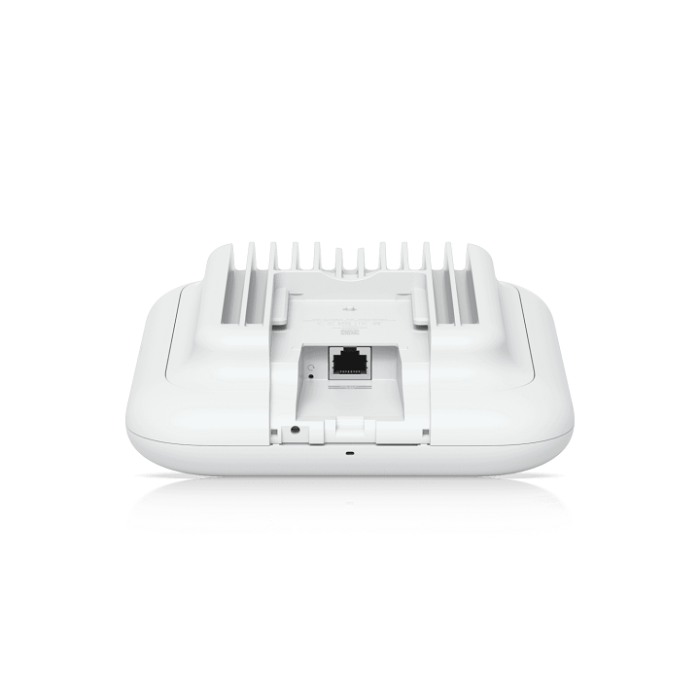

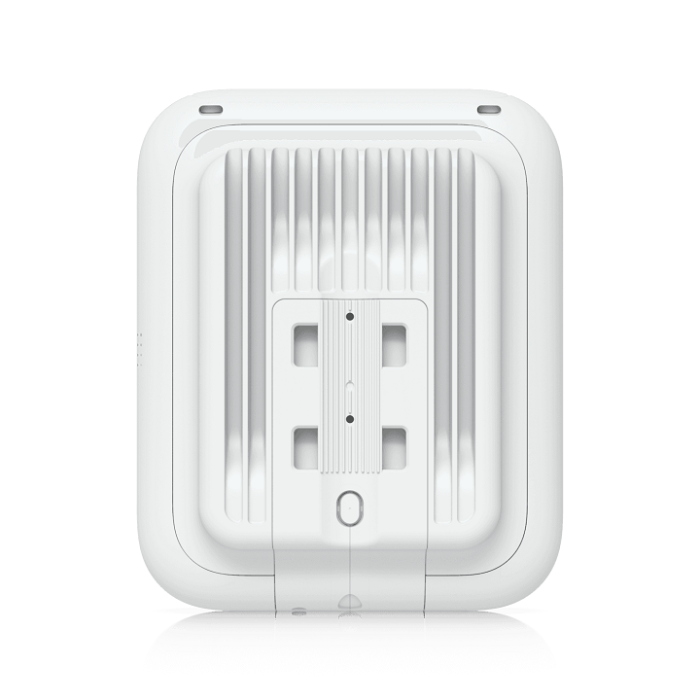

Ubiquiti U7 Outdoor WiFi 7 Access Point - U7-Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
| Technical Specifications | |
|---|---|
| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| Pole Mount Diameter | 25–60 mm (1–2.36") |
| Wind Survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE+ |
| Power Supply | UniFi PoE Switch |
| Supported Voltage Range | 42.5–57V DC |
| Max Power Consumption | 19W |
| Max TX Power | |
| 2.4 GHz | 23 dBm |
| 5 GHz | 26 dBm |
| 6 GHz | - |
| MIMO | |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | - |
| Throughput Rate | |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | 4.3 Gbps (BW240) |
| 6 GHz | - |
| Antenna | |
| 2.4 GHz Gain | Directional internal: 8 dBi / External omni: 3 dBi |
| 5 GHz Gain | Directional internal: 12.5 dBi / External omni: 4 dBi |
| 6 GHz Gain | - |
| 2.4 GHz Beamwidth | 90 Degrees |
| 5 GHz Beamwidth | 45 Degrees |
| 6 GHz Beamwidth | - |
| Antennas | (1) Directional internal antenna, (2) External omni antennas, (2) RP-SMA connectors for external antenna |
| Additional Features | |
| LEDs | (1) Power: white/blue, (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
