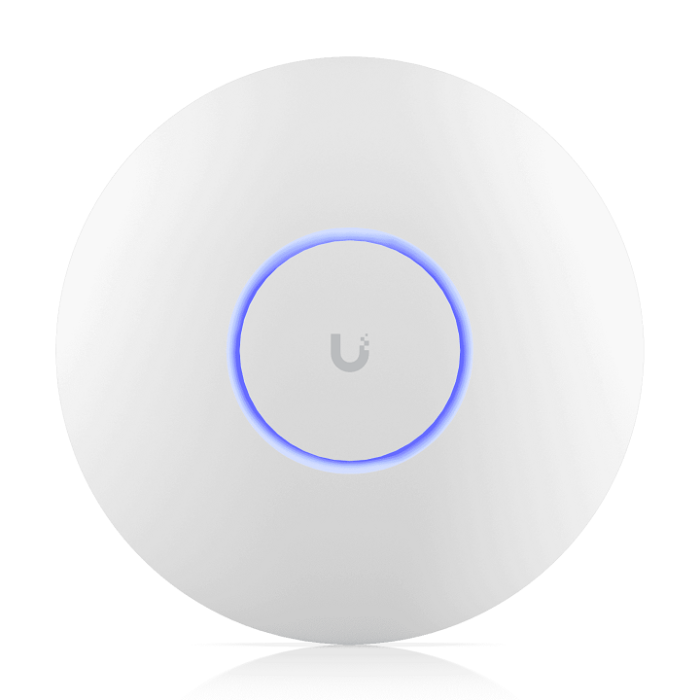

Ubiquiti U7 Pro Ceiling-mounted WiFi 7 Access Point - U7-Pro
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
| UniFi WiFi 7 Access Point Specifications | |
|---|---|
| Physical | |
| Dimensions | 206 x 46 mm (8.1 x 1.8") |
| Coverage Area | 140 m (1,500 ft) |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Ambient Operating Temperature | -30 to 40C (-22 to 104F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| WiFi & Performance | |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 6 |
| Max. Client Count | 300+ |
| MIMO (6 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (5 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2 x 2 (DL/UL MU-MIMO) |
| Maximum Data Rates | |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 6 GHz | 5.8 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 6 GHz | 23 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Networking | |
| Uplink | 2.5 GbE RJ45 |
| Power Method | PoE+ |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 44—57V DC |
| Channel Bandwidth | 20/40/80/160/240/320 MHz (varies per standard) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11r/k/v | ✓ |
| Guest Portal + Authentication Options | ✓ (Custom Branding, Vouchers, Payment, PPSK, etc.) |
| Client Isolation & Security | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic VLAN | ✓ |
| Regulatory & Compliance | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| LEDs | System (White/Blue) |
| Software | |
| Management | Ethernet |
| Application Requirements | UniFi Network Version 8.0.28 and later |
