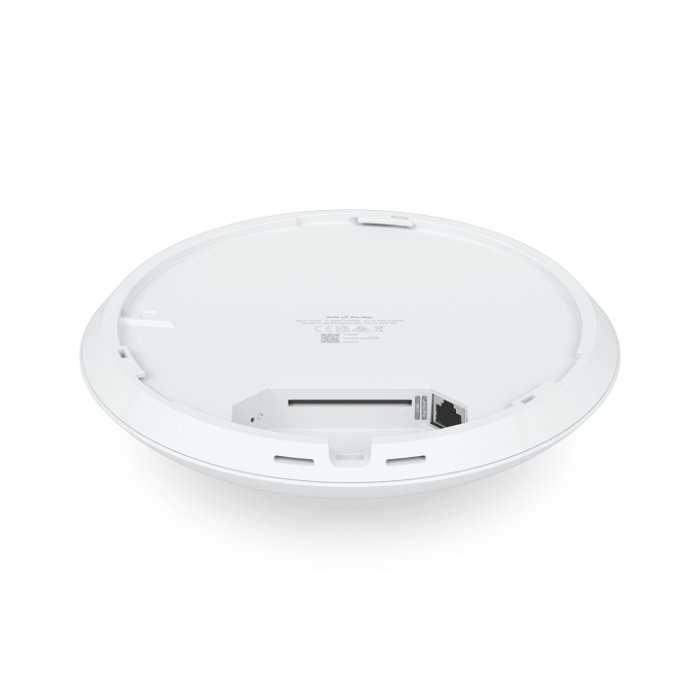

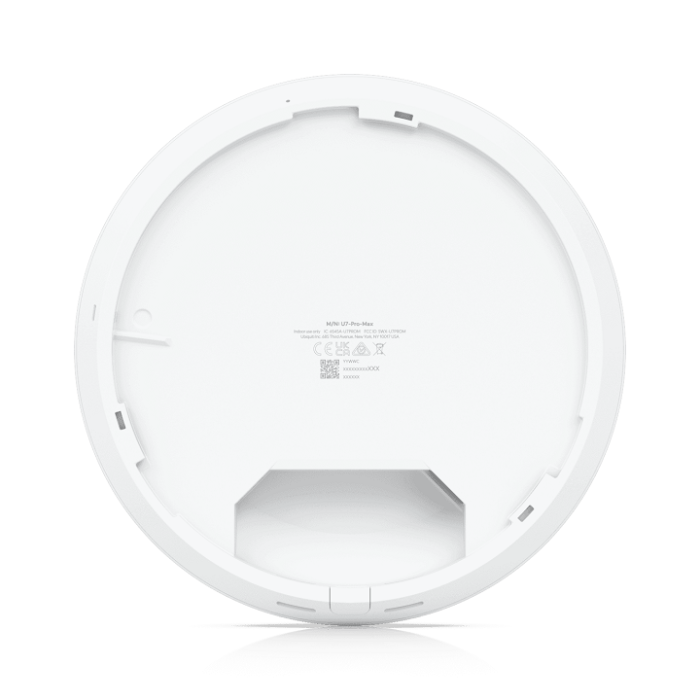

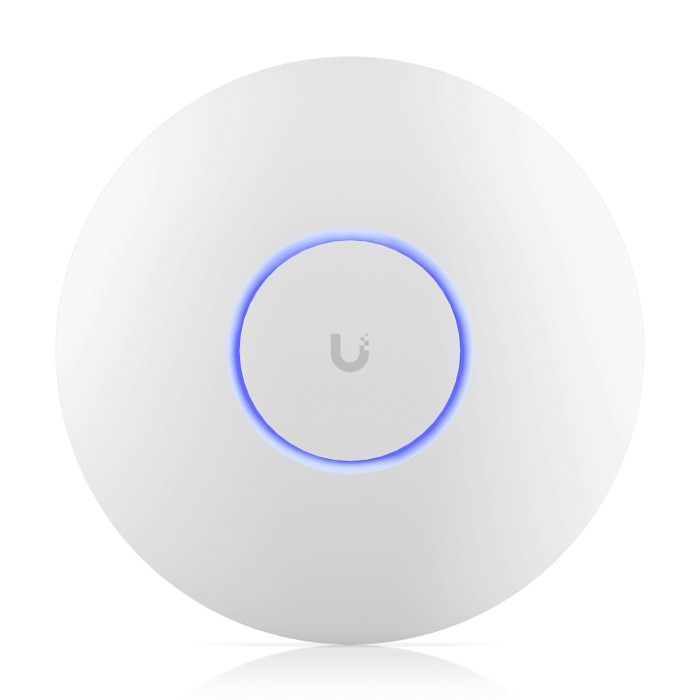

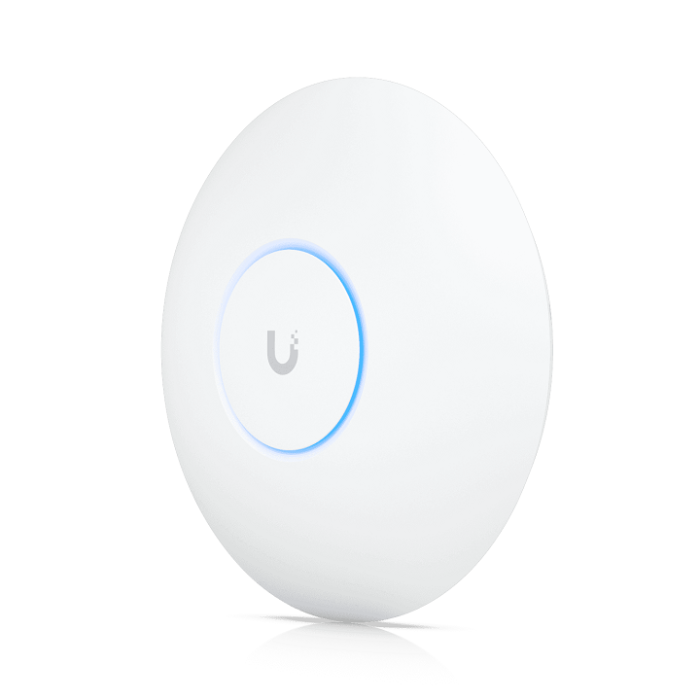

Ubiquiti U7 Pro Max Ceiling-mounted WiFi 7 Access Point - U7-Pro-Max
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
| Device Specifications | |
|---|---|
| Dimensions | 206 × 46 mm (8.1 × 1.8") |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO |
6 GHz: 2×2 (DL/UL MU-MIMO) 5 GHz: 4×4 (DL/UL MU-MIMO) 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz: 5.8 Gbps (BW320) 5 GHz: 8.6 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 5.9 dBi 5 GHz: 6 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 23 dBm 5 GHz: 29 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7) 6 GHz: 7.3 Mbps – 5.8 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps – 8.6 Gbps (MCS0–MCS13, NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6/6E) 7.3 Mbps – 4.8 Gbps (MCS0–MCS11, NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps – 3.4 Gbps (MCS0–MCS9, NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps – 600 Mbps (MCS0–MCS31, HT 20/40) |
| Wireless & Network Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Real-Time Spectral Analysis | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal |
Custom Branding ✓ Voucher Authentication ✓ Payment Authentication ✓ External Portal ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| PPSK (Private Pre-Shared Key) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 25W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System (White/Blue) |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 08959-24-08356 |
| Operating Frequency |
US/CA: 2400–2472 MHz U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz U-NII-5 to U-NII-8: 5925–7125 MHz Worldwide: 2400–2483.5 MHz 5150–5725 MHz 5925–7125 MHz |
| Ambient Operating Temperature | -30 to 50C (-22 to 122F) |
| Ambient Operating Humidity | 5% to 95% noncondensing |
| Software Requirements | |
| UniFi Network Application | Version 8.2.93 and later |
