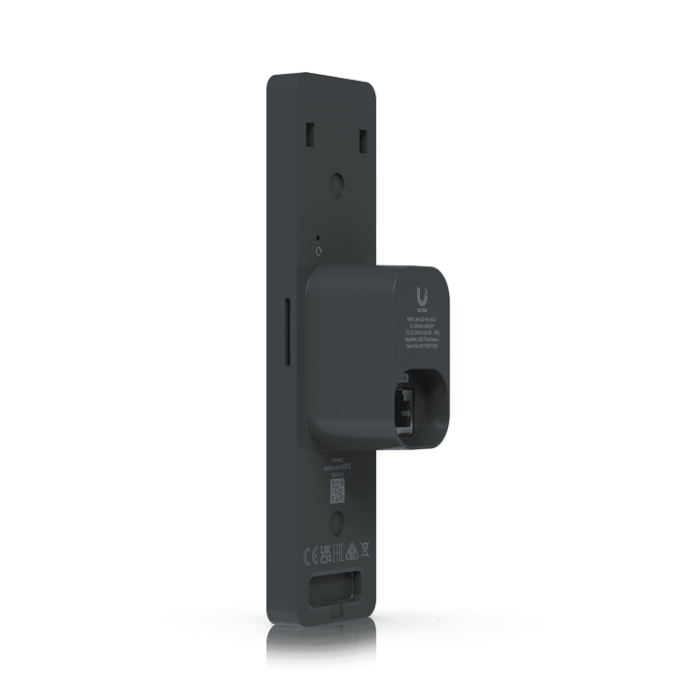

Ubiquiti G2 Reader Pro Indoor/Outdoor NFC Reader - UA-G2-Pro-Black - Black
Second generation, indoor/outdoor NFC reader and intercom.
| Mechanical | |
|---|---|
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | Wall, gang box |
| Weatherproofing | IP55 |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method |
PoE UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 6W |
| ESD/EMP Protection | Air: +15kV, Contact: +8kV |
| Sensor | Proximity sensor |
| Camera | 4000 x 3000, 12 MP, 30 FPS |
| View Angle | H: 96.67, V: 123.15, D: 153.11 |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 1.5W |
| LEDs | R / G / B / W, Flash |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm |
| NFC Standards | ISO 14443A, ISO 14443B, ISO 15693 |
| NFC Technology |
NFC Tag Types 1, 2, 3, 4, 5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Operating Environment | Outdoor use |
| Operating Temperature |
Device: -30 to 45 C (-22 to 113 F) Display: -10 to 45 C (14 to 113 F) Display turns off outside display temperature range; other functions remain operational (Firmware v1.3.28+) |
| Operating Humidity | 5 to 90% noncondensing |
| Compliance & Standards | |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement |
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. Intended to comply with ANSI/NFPA 70, Article 725.121 (Class 2 and Class 3 Circuits). |
| PoE Cabling Requirements |
Minimum recommended: Cat 5e 26 AWG (0.13 mm) for patch cords 24 AWG (0.21 mm) for horizontal or riser cable |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| LED System States | |
| System LED |
Steady blue: Adopted / device ready Steady white: Pending adoption Blinking white/blue: Firmware upgrading Strobing red: Emergency lockdown |
| Software | |
| Management Application | UniFi Access (Version 1.5.9 and later) |
