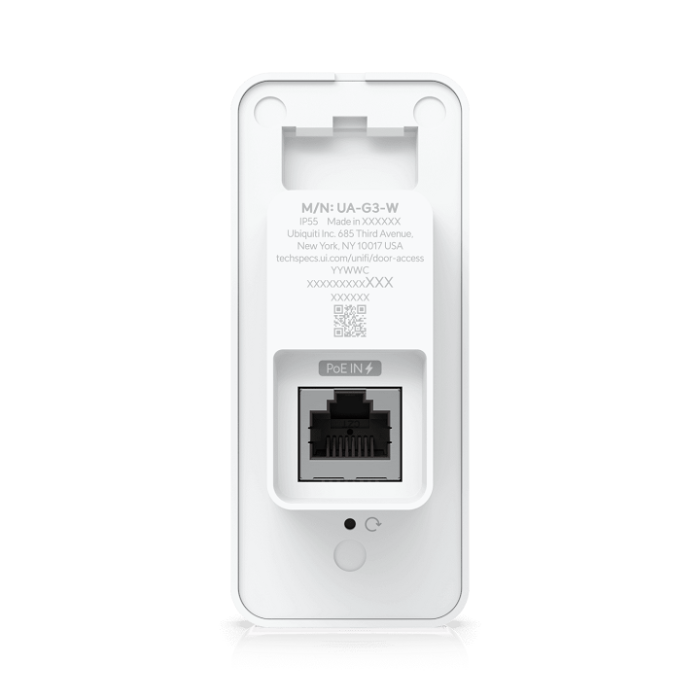

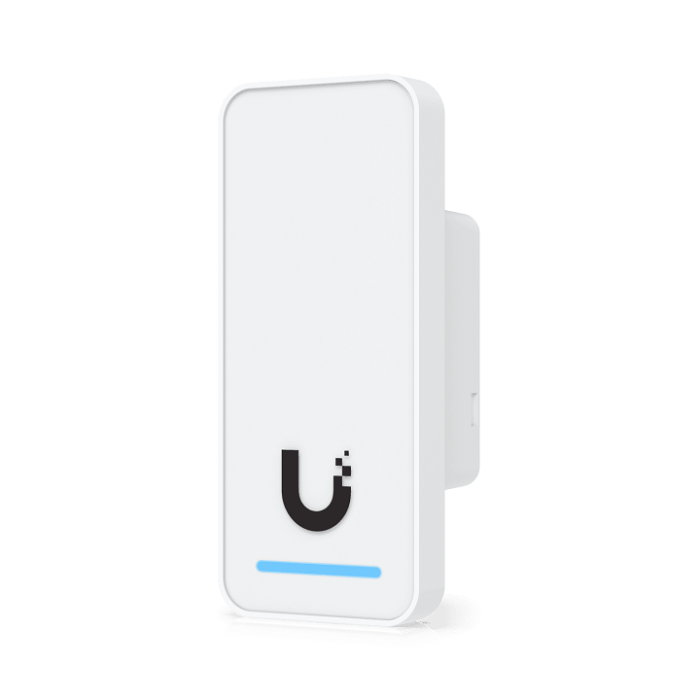

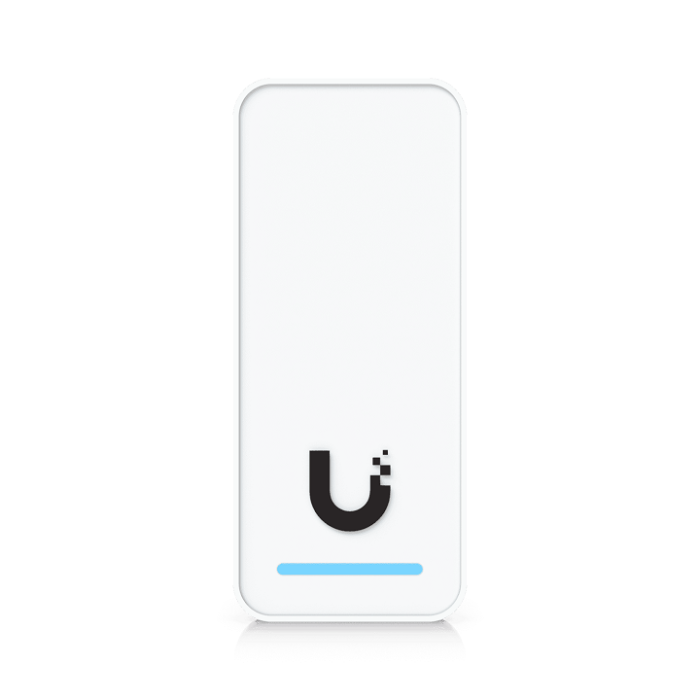

Ubiquiti G3 Reader Access Reader - UA-G3-W - White
Compact third-generation access reader with Touch Pass support.
| Overview | |
|---|---|
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| NFC Card & Keyfob Access | ✓ |
| Apple / Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Handwave Request to Exit | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP55 |
| Mechanical | |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting |
In-wall, gang box (Included) Junction box (Optional) |
| Hardware | |
| Indoor / Outdoor Use | Yes |
| Operating Temperature | -30 to 45C (-22 to 113 F) |
| Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1, NFC |
| Power Method |
PoE UL 294 Power-limited Class 2 PSU UL 60950-1 / 62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD / EMP Protection | Air: +15kV, Contact: +8kV |
| Sensors | Proximity sensor |
| Speaker | ✓ |
| LEDs | R / G / B / W |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology |
ISO/IEC 14443A / 14443B / 15693 / 18092 (ECMA 340) MIFARE Classic / MIFARE DESFire Sony FeliCa (ID only) NFC Forum Tags: T1T, T2T, T3T, T4T, T5T ECP 2.0 |
| Compliance & Standards | |
| PoE Cabling Requirements |
Minimum recommended: Cat 5e 26 AWG (0.13 mm²) for patch cords 24 AWG (0.21 mm²) for horizontal or riser cable |
| UL 294 Statement |
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. Intended to comply with ANSI/NFPA 70, Article 725.121 (Class 2 and Class 3 Circuits). |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-G3, V01 |
| Software | |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
