Ubiquiti UA-Hub-Door Best price in Dubai UAE
A single-door mechanism that provides complete entry and exit control via connected Access Readers.

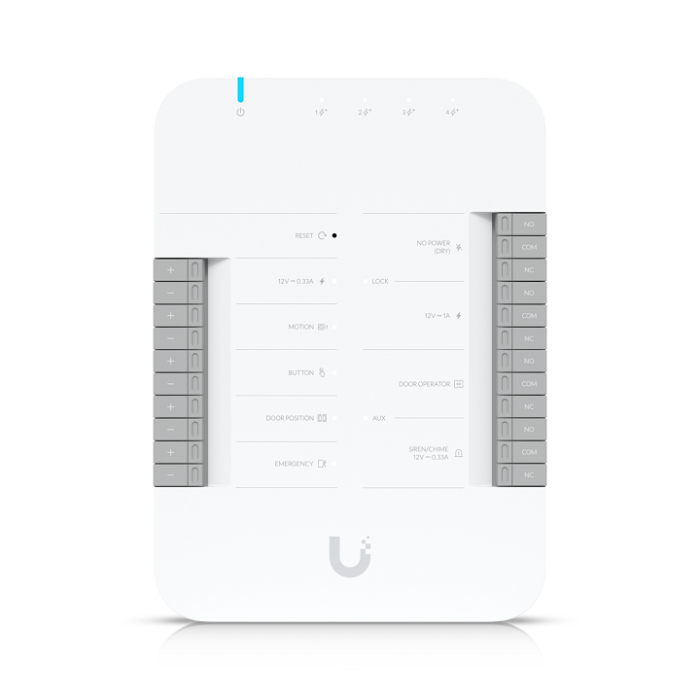

#1: (2) Lock terminals (12V and Dry)
#2: (2) AUX terminals for an external siren and automatic door opener
#3: (4) Additional inputs (sensors and buttons)

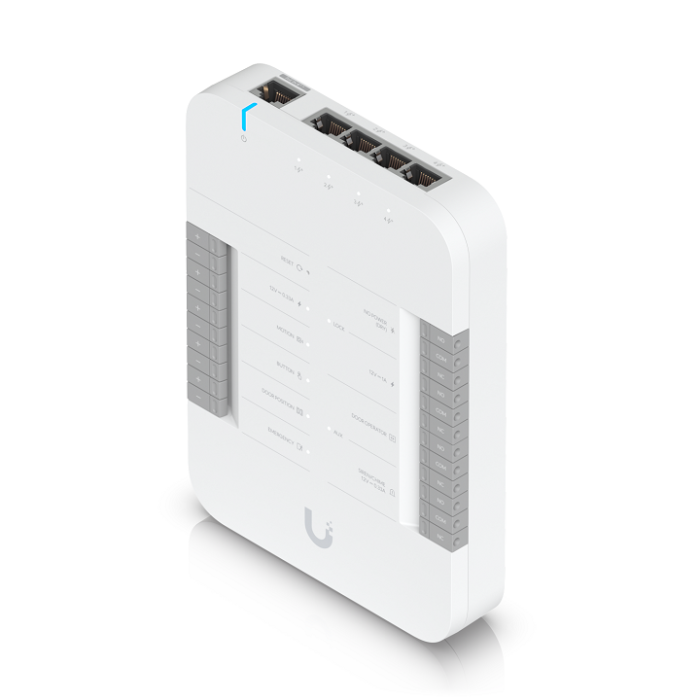

#4: Connect and power using PoE++
#5: Connect to two UniFi Access readers and two UniFi Protect camera or UniFi Protect Chime
Ubiquiti UA-Hub-Door Buy with Best Price from authorized supplier for Ubiquitiproducts in UAE Ubiquiti UniFi Access Door Hub - UA-Hub-Door Distributor for Africa dsrtech.ae, Ubiquiti Dubai
| General Specifications | |
|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3 in) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Indoor / Outdoor Use | Indoor only |
| UniFi Application & Compliance | |
| Management Application | UniFi Access |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |
| NDAA Compliant | Yes |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Inputs & Outputs | |
| Input Terminals |
(2) Door exit request (1) Door position (1) Emergency |
| Digital Inputs |
Request to exit Request to enter Remote release Door position sensor |
| Dry Output Relay |
Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay |
Lock: 12V DC, 1A Aux: 12V DC, 0.33A Line: 12V DC, 0.33A |
| Power & Networking | |
| Power Method | PoE++ |
| PoE Interface |
(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Networking Interface | (5) 10/100/1000 Base-T |
| Max Power Consumption |
30W (without PoE output) 50W (with PoE output) |
| Environmental | |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Operating Humidity | 5 to 95% non-condensing |
| Other | |
| LEDs | W / B |
| Buttons | Factory reset (1) |
| CAN/ULC-60839-11-1 Grade | Grade 1 |
| Document Reference | UA-Hub-Door002, V01 |
| Software Information | Software version available at https://unifi.ui.com |
