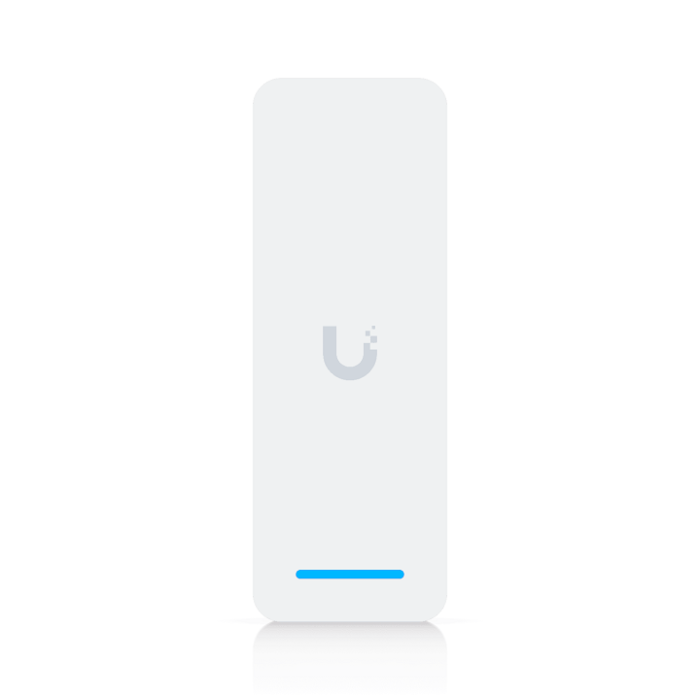

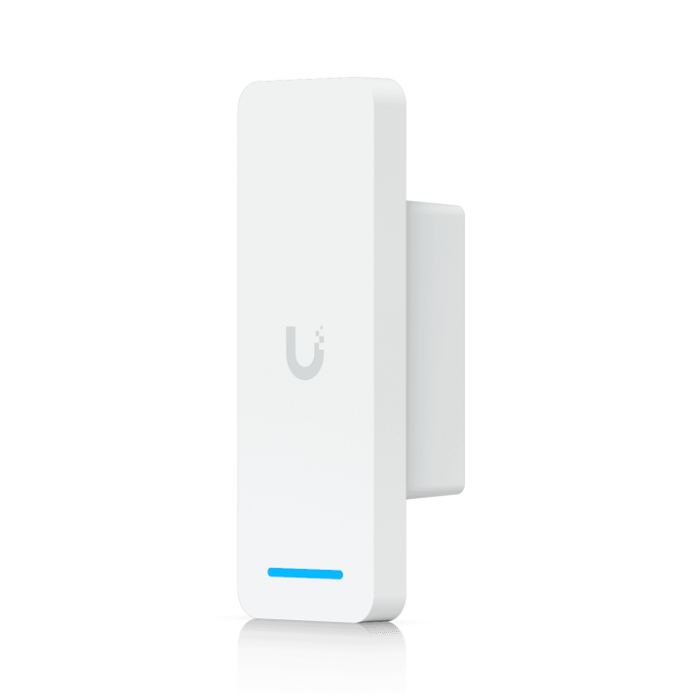

Ubiquiti Access Ultra - UA-Ultra
An access reader with a built-in hub for complete, single-door entry control from one device.
| General Specifications | |
|---|---|
| Dimensions | 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5 in) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |
| Mounting |
Wall mount, gang box mount (included) Junction box (optional) |
| Weatherproofing | IP55 |
| Access & Compliance | |
| NFC Card & Keyfob Access | Yes |
| Mobile Unlock | Yes |
| Maximum User Count | 3,000 |
| NDAA Compliant | Yes |
| Tamper Switch | Yes |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Certifications |
CE, FCC, IC, Anatel (06371-24-08356), SRRC, UL 294, CAN/ULC-60839-11-1 |
| Hardware & Connectivity | |
| Indoor / Outdoor Use | Yes |

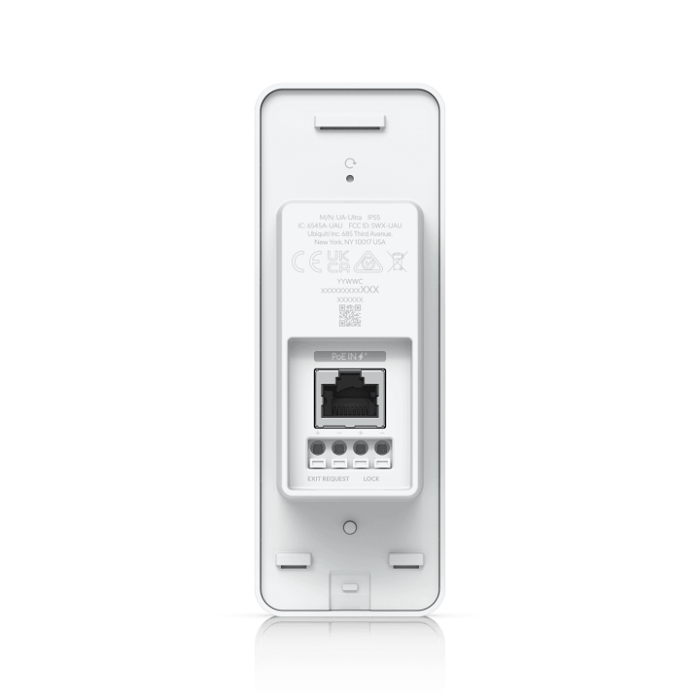

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity |
BLE 4.2 Ethernet |
| Speaker | Yes |
| LEDs | R / G / B / W |
| Button | Factory reset (1) |
| Power | |
| Power Method | PoE+ |
| Supported Voltage Range | 44–57V DC |
| Max Power Consumption | 18W |
| Powered Output Relay | Lock: 12V DC, 1A |
| ESD / EMP Protection | Air: +8kV, Contact: +4kV |
| NFC Specifications | |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 50 mm (1.95 in) |
| NFC Technology |
ISO 14443A / 14443B / 15693 NFC Tag Types 1–5 |
| Supported NFC Cards |
MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Environmental | |
| Operating Temperature | -30 to 40 C (-22 to 104 F) |
| Operating Humidity | 5 to 90% non-condensing |
| Other | |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Document Reference | UA-Ultra, V01 |
| Software Information | Software version available at https://unifi.ui.com |
