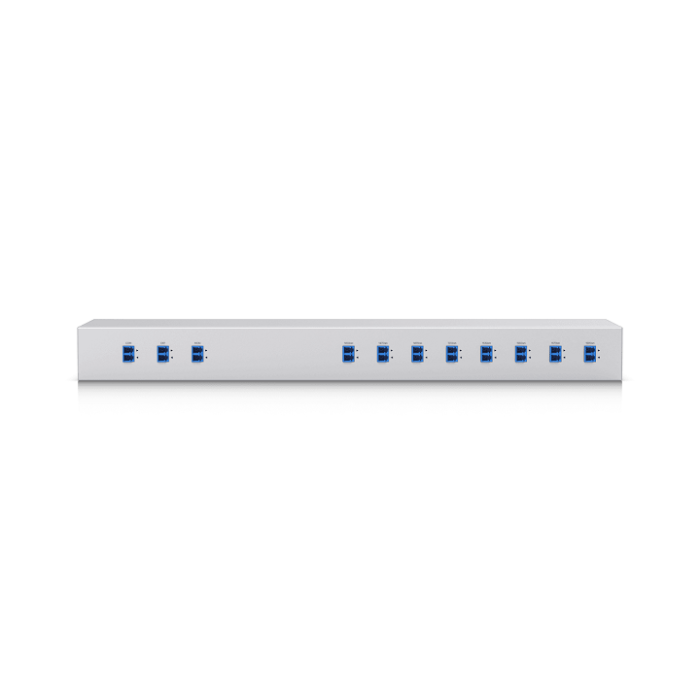

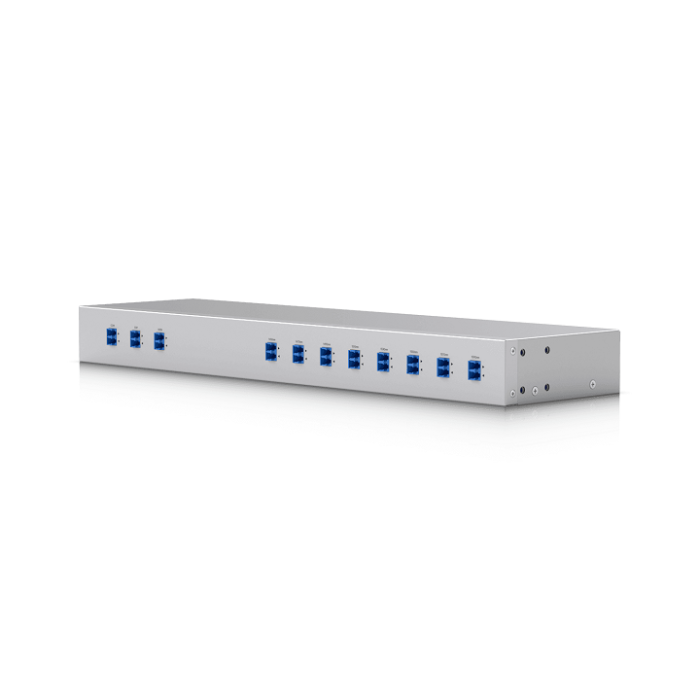

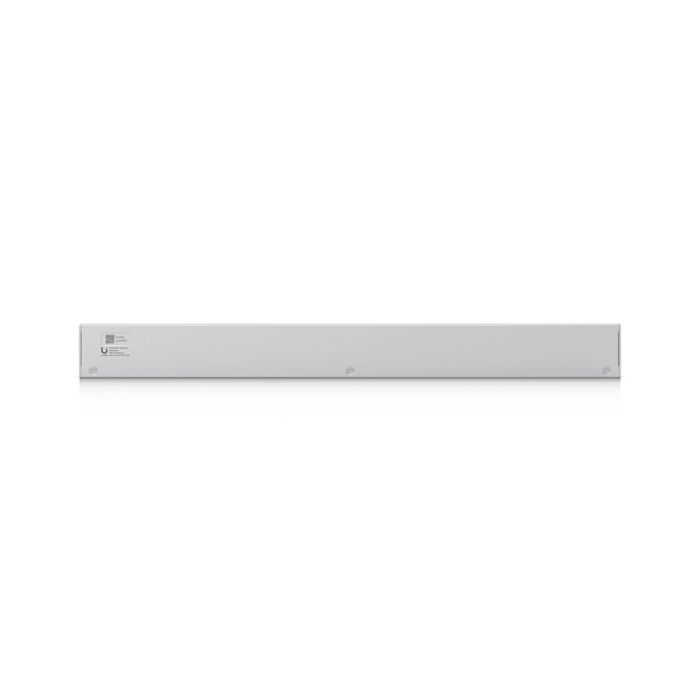

Ubiquiti CWDM Mux Demux 8 - UACC-CWDM-8
Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
(8) 1450 to1590 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
(1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
| Specification | Details |
|---|---|
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
| Enclosure Material | SGCC steel |
| Weight | 1.4 kg (3.2 lb) |
| Pigtail and Connector Type |
COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC |
| Connector |
(1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450–1590 nm (LC/UPC) |
| Fiber Type | SMF-28e |
| Fiber Length | > 0.5 to 1 m |
| Isolation |
Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB |
| Channel Count | 8 CH Mux/Demux |
| Channel Center Wavelength | 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm |
| Min. Channel Passband | +6.5 nm |
| Insertion Loss | < 2.5 dB (Max.) |
| Return Loss | 50 dB (Min.) |
| Max. Power Handling | 500 mW |
| Max. Passband Ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Max. Polarization Mode Dispersion | 0.1 ps |
| Min. Directivity | 55 dB |
| Ambient Storage Temperature | -40 to 90C (-40 to 194F) |
| Ambient Operating Temperature | -30 to 75C (-22 to 167F) |
