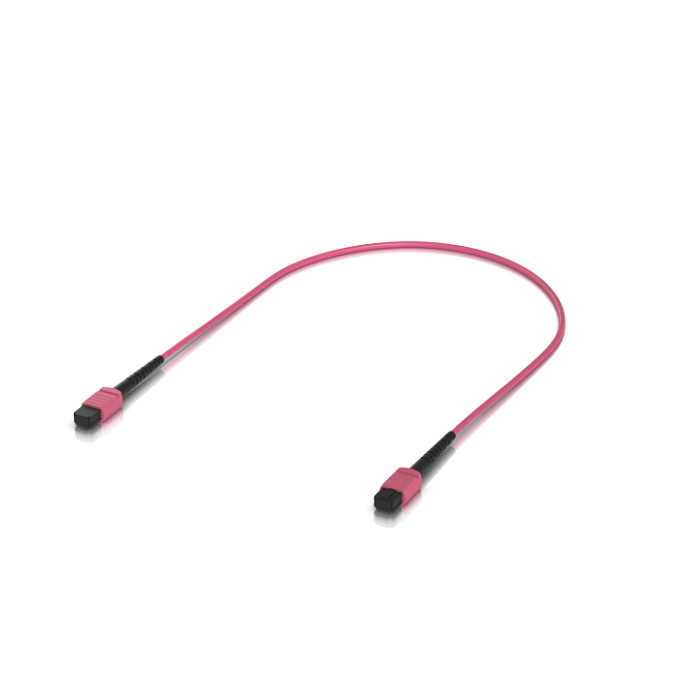

Ubiquiti OM4 MPO-12 UPC Fiber Patch Cable - UACC-OFC-MA-MPMP-0.5M
Indoor OM4 multi-mode fiber patch cable with MPO-12 Type B UPC connectors designed for 100G applications.
OM4 multi-mode fiber
MPO-12 Type B UPC connectors
Cable length: 0.5 to 100 m
| General | |
|---|---|
| Available Lengths |
0.5, 1, 3, 5, 10, 15, 30, 60, 100 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
| Pack Options |
Single Unit 10-Pack (0.5 / 1 / 3 m) |
| Connector | (2) MPO-12 Type B UPC |
| Operating Environment | Indoor |
| Cable Specifications | |
| Fiber Mode | OM4 |
| Jacket Diameter | 3 mm (0.12") |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Rose |
| Wavelength | 850 nm |
| Insertion Loss | < 0.6 dB |
| Return Loss | > 20 dB |
| Repeatability | < 0.1 dB |
| Durability | < 0.2 dB (1,000 matings) |
| Operating Temperature | -40 to 75C (-40 to 167F) |
