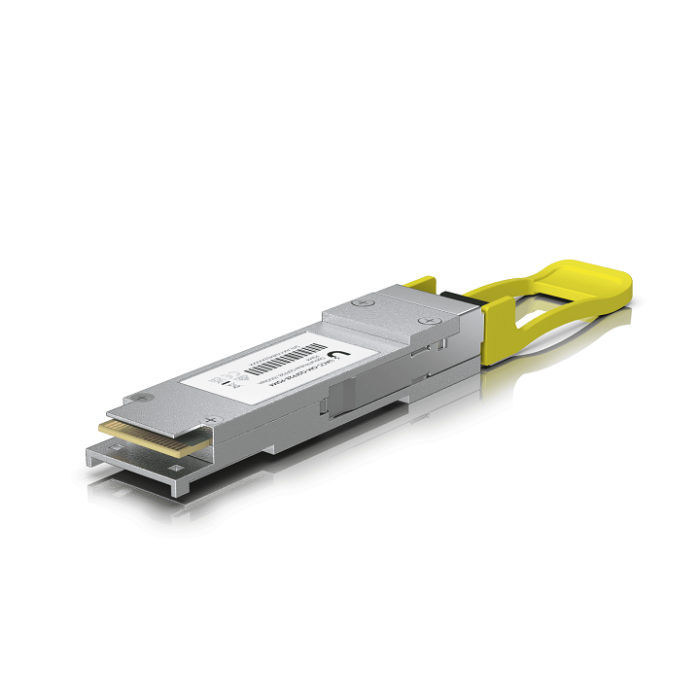

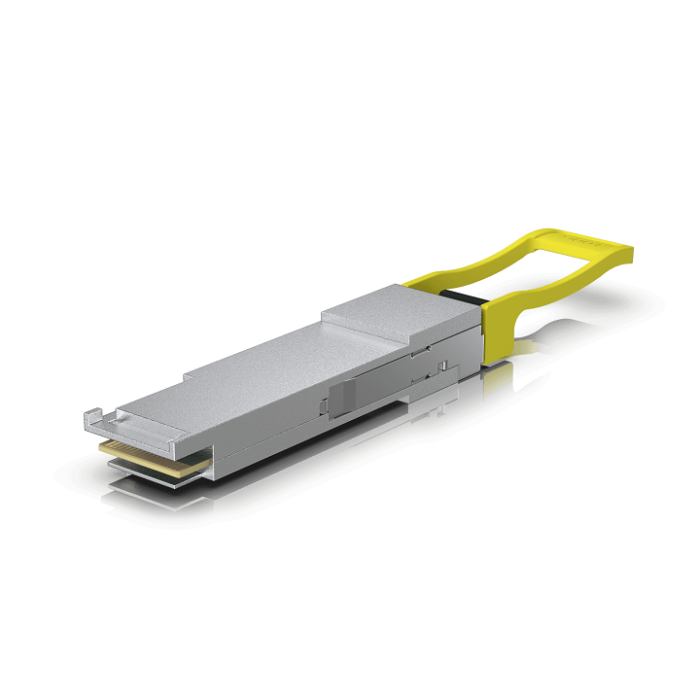

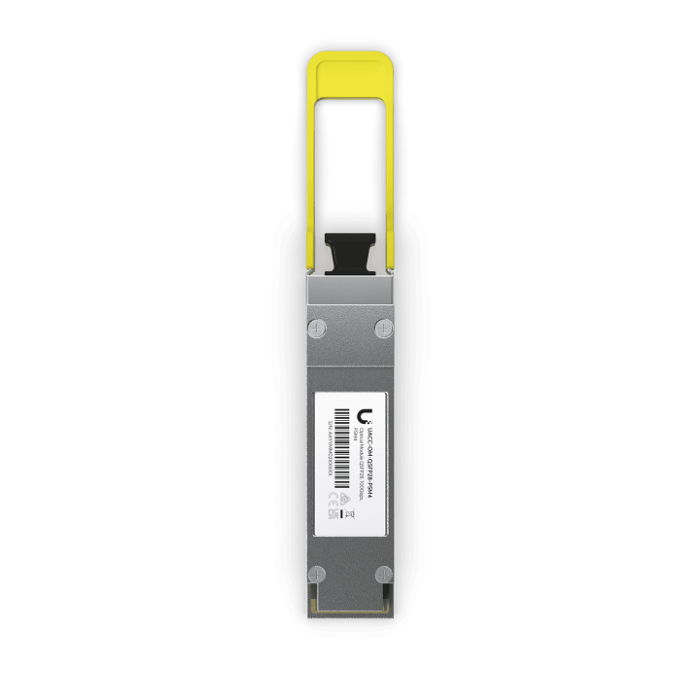

Ubiquiti 100G PSM4 Single-Mode Optical Module - UACC-OM-QSFP28-PSM4
QSFP28 transceiver that supports 100G connections up to 2 km using single-mode fiber with an MPO-12 APC connector.
Max data rate: 100 Gbps
Compatible with QSFP28 and QSFP+ interfaces
MPO-12 Type B APC connector
Supports single-mode fiber connections up to 2 km
| Specification | Details |
|---|---|
| Form Factor | QSFP |
| Connector | MPO-12 Type B UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Supported Data Rate | 100 Gbps |
| Supported Cable Distance | 2 km (1.2 mi) |
| Max. Power Consumption | 3.5 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70 C (32 to 158 F) |
| Warning |
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
