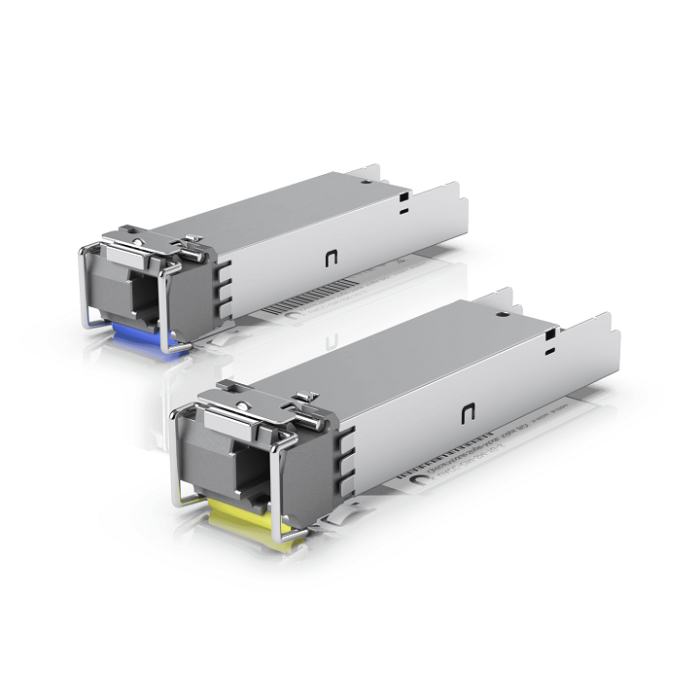

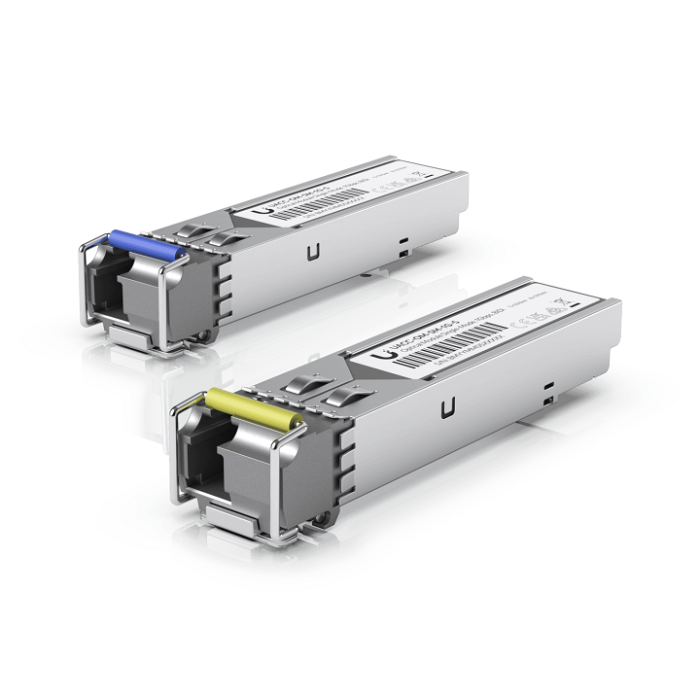

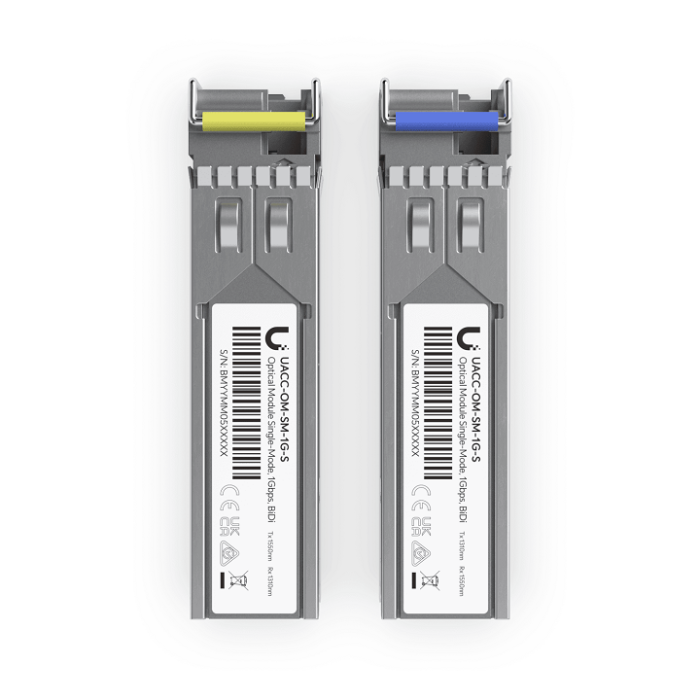

Ubiquiti 1G Bidirectional Single-Mode Optical Module - UACC-OM-SM-1G-S-20
SFP transceiver that supports 1G connections up to 3 km using single-mode fiber with a simplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 3 km
| Specification | Details |
|---|---|
| Form Factor | SFP |
| Connector | Simplex LC UPC |
| Supported Media | Single-Mode Fiber |
| BiDi | Yes |
| TX Wavelength | 1310 / 1550 nm |
| RX Wavelength | 1550 / 1310 nm |
| Supported Data Rate | 1 Gbps |
| Supported Cable Distance | 3 km (1.9 mi) |
| Max. Power Consumption | 0.66 W |
| Pack Options | 2-Pack, 20-Pack |
| Ambient Operating Temperature | 0 to 70 C (32 to 158 F) |
| Warning |
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
