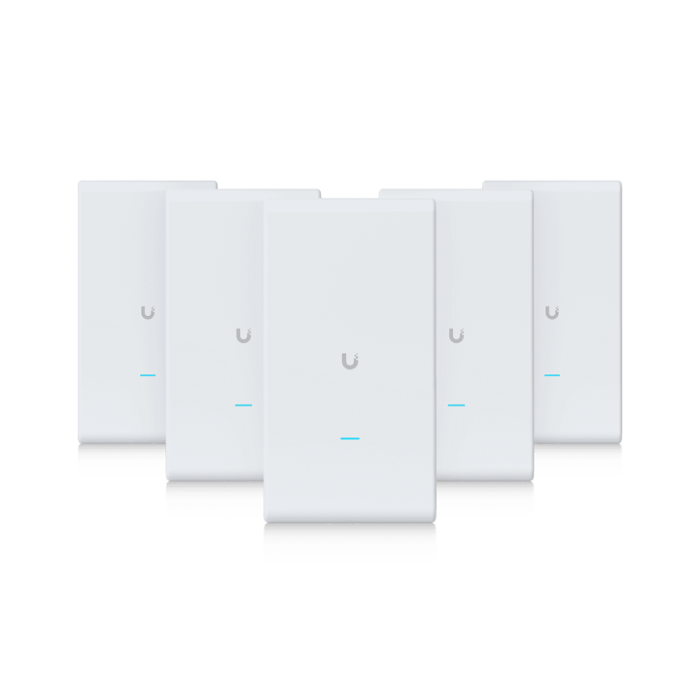

Ubiquiti AC Mesh Pro Access Point - UAP-AC-M-PRO-5 - 5 Pack
Indoor/outdoor WiFi 5 AP with 6 spatial streams and extended signal range for maximum coverage.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 6 |
| Coverage Area | 185 m (2,000 ft) |
| Max. Client Count | 250+ |
| Uplink | GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX4 |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 3 x 3 (DL MU-MIMO) 2.4 GHz: 3 x 3 (DL MU-MIMO) |
| Max. Data Rate | 5 GHz: 1.3 Gbps (BW80) 2.4 GHz: 450 Mbps (BW40) |
| Antenna Gain | 5 GHz: 8 dBi 2.4 GHz: 8 dBi |
| Max. TX Power | 5 GHz: 22 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ac (WiFi 5): 6.5 Mbps–1300 Mbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80) 802.11n: 6.5 Mbps–300 Mbps (MCS0–MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | ✓ |
| Custom Branding Landing Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 9W |
| Includes PoE Adapter | ✓ |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Weight | 633 g (1.4 lb) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate |
| LEDs | System, Status |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
| NDAA Compliant | ✓ |
| Certifications & Environment | |
| Certifications | CE, FCC, IC, Anatel: 01653-18-08356 |
| Operating Frequency | US/CA: 2400–2472 MHz U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz Worldwide: 2400–2483.5 MHz 5150–5725 MHz |
| Operating Temperature | -40 to 70C (-40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network 6.0.45 and later |
