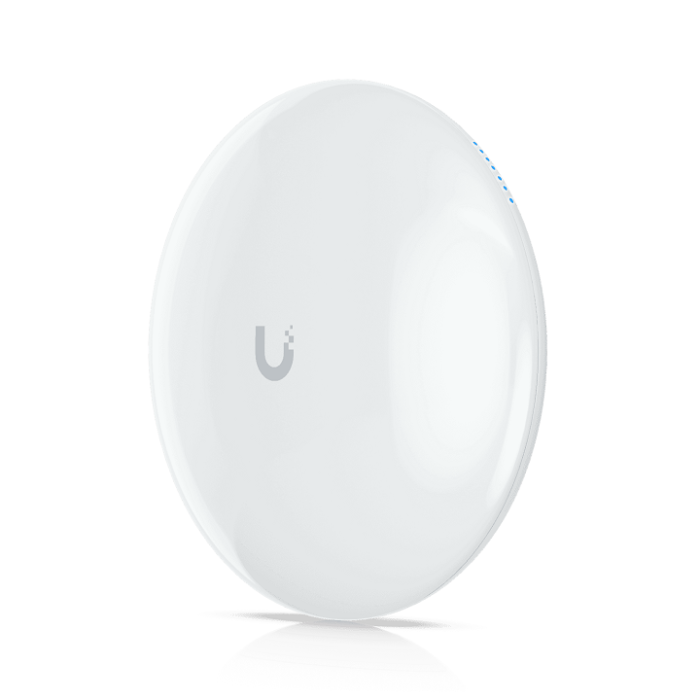

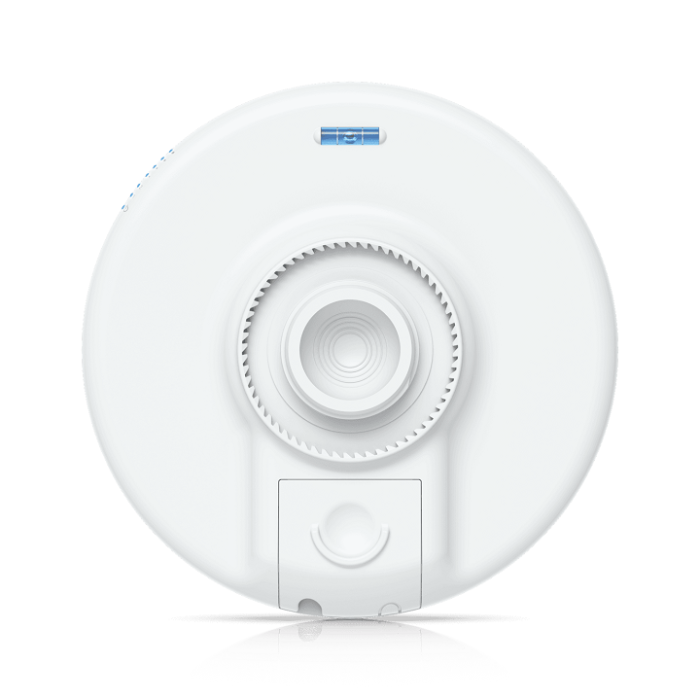

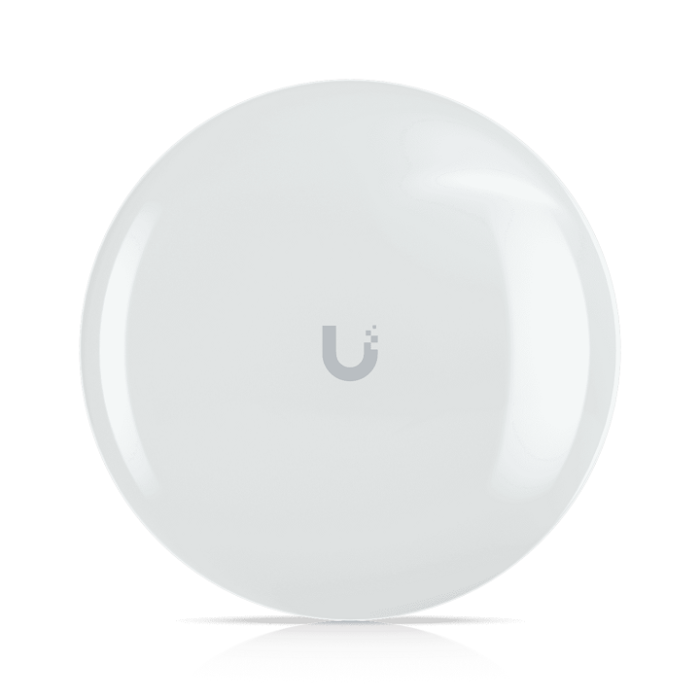

Ubiquiti Device Bridge Pro Access Point - UDB-Pro-UK
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
| Mechanical | |
|---|---|
| Dimensions | 189.5 x 64.3 mm (7.4 x 2.5") |
| Enclosure Material | UV-resistant polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Pole Mount Diameter | 20–53.1 mm (0.8–2.1") on pipe outer diameter |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |

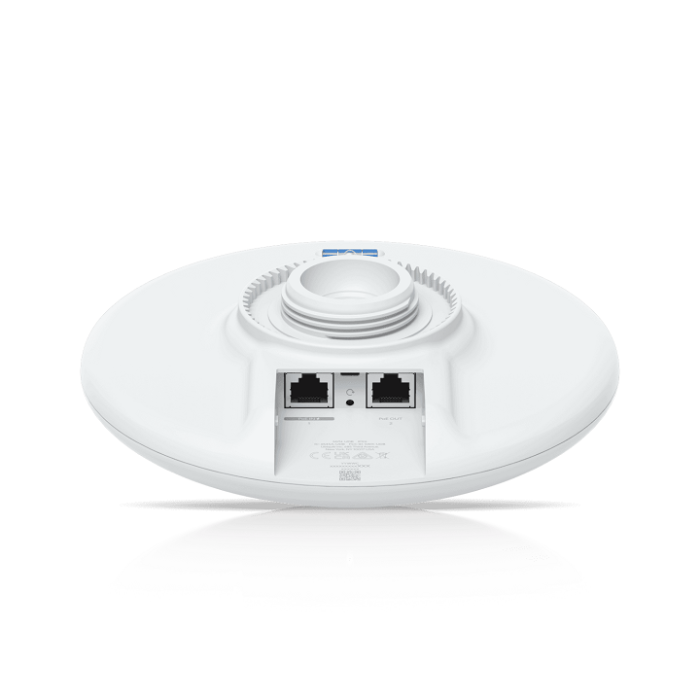

| Networking Interface | (2) GbE RJ45 ports |
| Management Interface | Ethernet |
| WiFi | Supported |
| PoE Interface | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Power Method | PoE, PoE+ (Required for PoE output) |
| Power Supply | UniFi PoE switch 48V, 0.32A PoE adapter (Included) |
| Supported Voltage Range | 42.5–57V DC |
| Max. Power Consumption | 9W |
| Max. TX Power | 2.4 GHz – 5 GHz: 25 dBm 6 GHz – |
| Max. Data Rate | 2.4 GHz – 5 GHz: 867 Mbps (BW80) 6 GHz – |
| MIMO | 2.4 GHz – 5 GHz: 2 x 2 6 GHz – |
| Antenna Gain | 2.4 GHz – 5 GHz: 19 dBi 6 GHz – |
| Antenna | Internal |
| Range | 5+ km |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Button | Factory reset |
| Mounting | Pole (Included) |
| Ambient Operating Temperature | -40 to 60 C (-40 to 140 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 802.11a/n/ac |
| Wireless Security | WPA2 AES (Always On) |
| Operating Frequency | U-NII-1: 5150 - 5250 MHz US/CA U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz Depends on regulatory region. |
| Channel Bandwidth | 20/40/80 MHz |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
