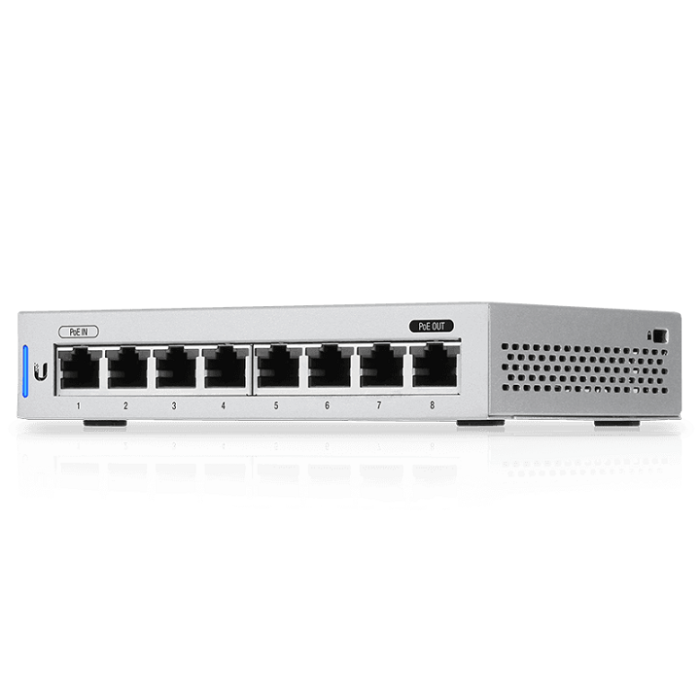

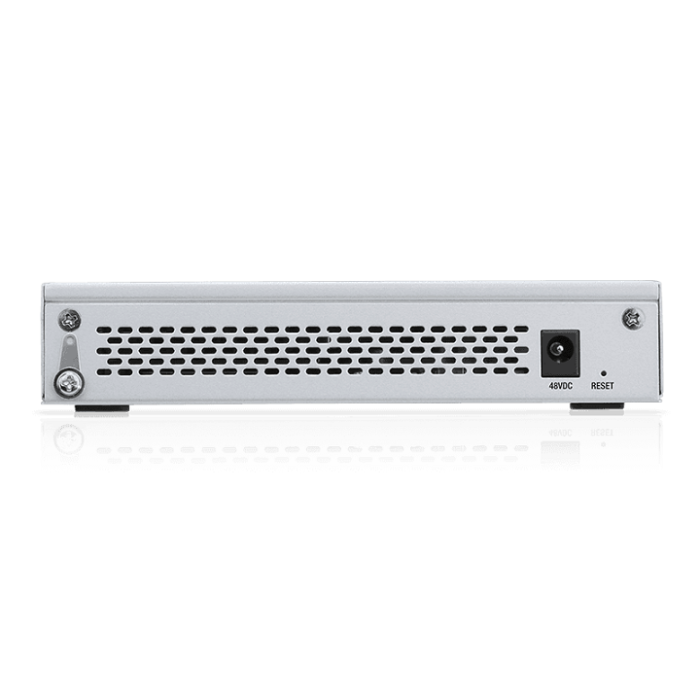

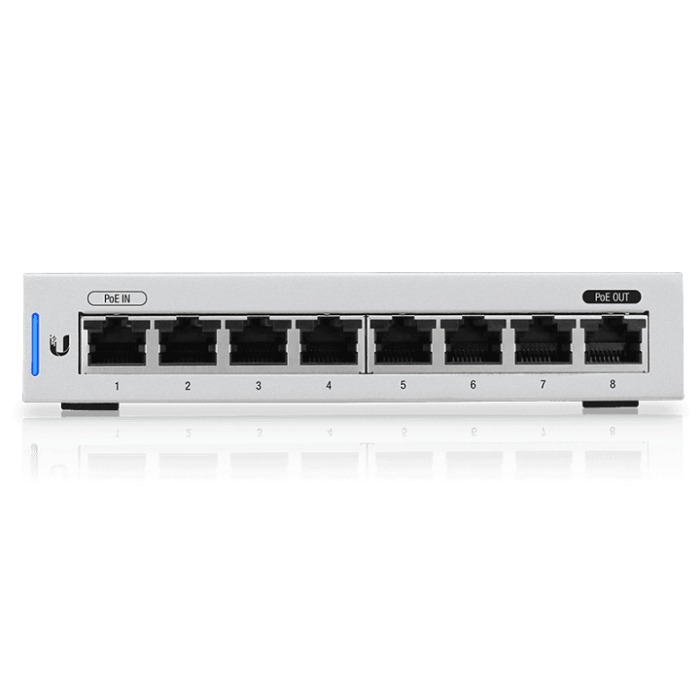

Ubiquiti US-8-EU 8 (Gen1) 8-port Layer 2 PoE Switch
An 8-port, Layer 2 PoE switch with a Gigabit PoE passthrough output.
| Hardware Specifications | |
|---|---|
| Dimensions | 148 x 99.5 x 30.7 mm (5.8 x 3.9 x 1.2") |
| Port Layout | |
| 1 GbE RJ45 | 8 (1G/100M/10M) |
| Performance | |
| Access Lists (IPv4) | 128 |
| Access Lists (MAC) | 128 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Power Method | (1) AC/DC adapter (Included) |
| Power Input Method | DC input / PoE |
| Supported Voltage Range | 44—57V DC / PoE |
| Mount Material | SGCC steel |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | UniFi Network (Version 6.3.51 and later) |
