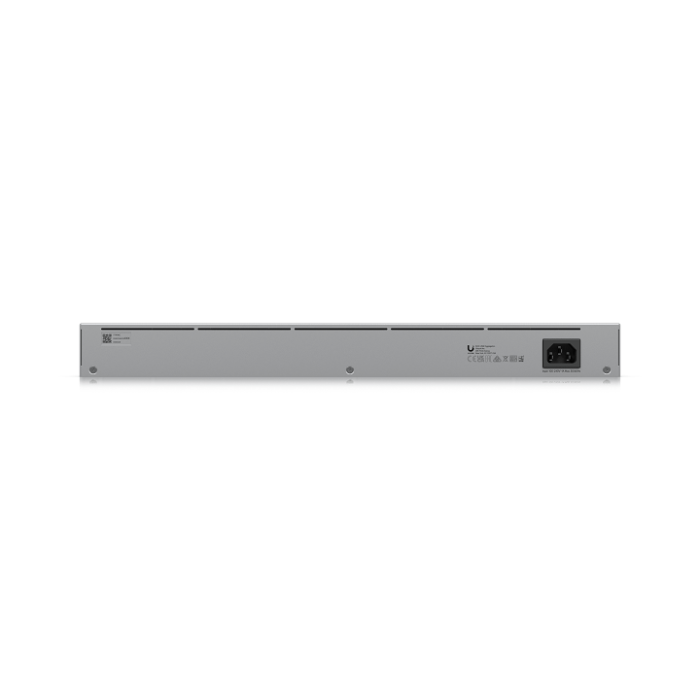

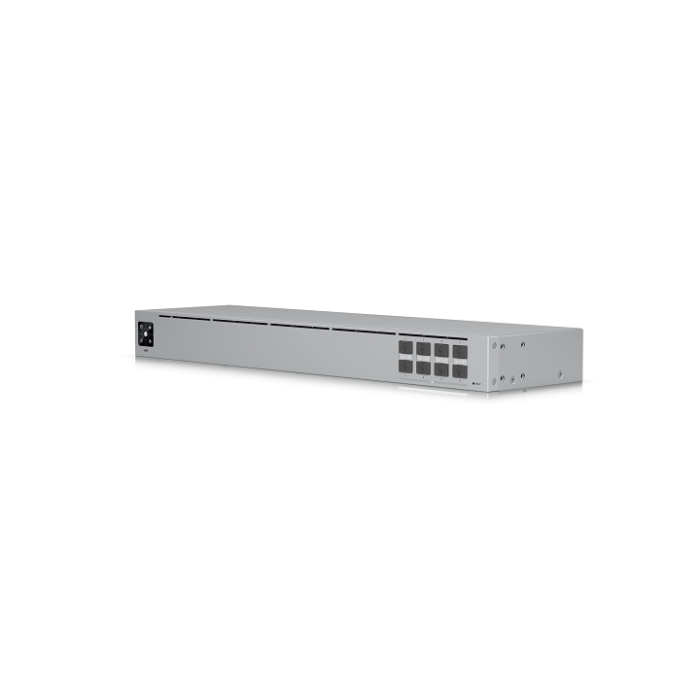

Ubiquiti USW-Aggregation-UK Aggregation 8-port Layer 2 Switch
An 8-port, Layer 2 switch made for 10G SFP+ connections.
| Dimensions | |
|---|---|
| Size | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
| Port Layout | |
| 10G SFP+ | 8 (10G/1G) |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 160 Gbps |
| Total Non-Blocking Throughput | 80 Gbps |
| Forwarding Rate | 119 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists | IPv4: 128, MAC: 128 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP Configuration | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Max. Power Consumption | 36W (Including SFP modules) |
| Power Method | Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet, AR |
| Heat Dissipation (Excluding PoE Output) | 102.36 BTU/hr |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: + 16kV, Contact: + 12kV |
| Ambient Operating Temperature | -5 to 40 C (23 to 104 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 5.14.12 and later |
