Ubiquiti Flex Mini 2.5G Switch - USW-Flex-2.5G-5
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
| Hardware Specifications | |
|---|---|
| Dimensions | 117.1 × 90 × 21.2 mm (4.6 × 3.5 × 0.8") |

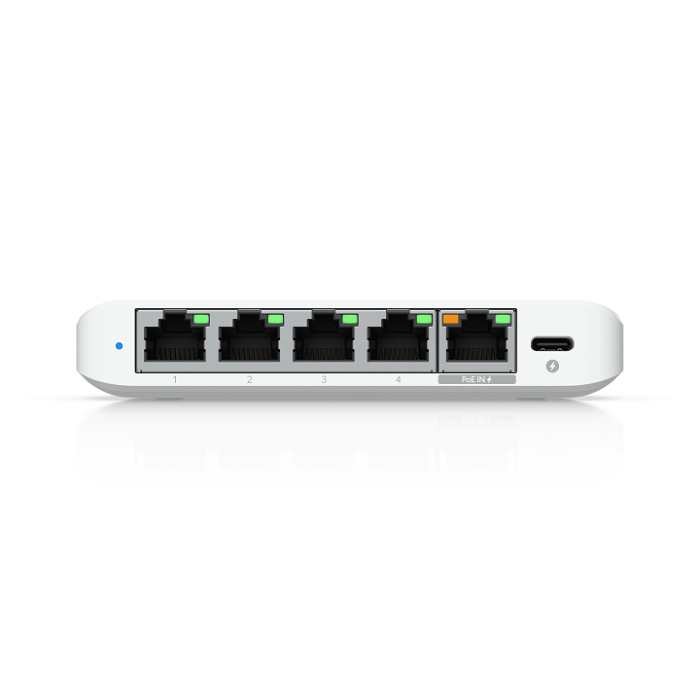

| Port Layout | 2.5 GbE RJ45 × 5 (2.5G/1G/100M/10M) |
| Form Factor | Compact desktop |
| Performance | |
| Switching Capacity | 25 Gbps |
| Total Non-Blocking Throughput | 12.5 Gbps |
| Forwarding Rate | 19 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Loop Protection | ✓ |
| Power & Hardware | |
| Max Power Consumption |
• 5W (AC/DC input) • 6.4W (PoE input) |
| Power Method |
• USB Type-C, 5V DC, 1A • PoE |
| Power Input Method |
• USB Input • PoE |
| Power Supply | AC/DC external, 5W |
| Supported Voltage Range |
• 4.8—5.2V DC/USB • 44—57V PoE |
| Management | Ethernet |
| Weight | 206 g (7.3 oz) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 45°C (-4 to 113°F) |
| Ambient Operating Humidity | 10% to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network (Version 8.6.9 and later) |
