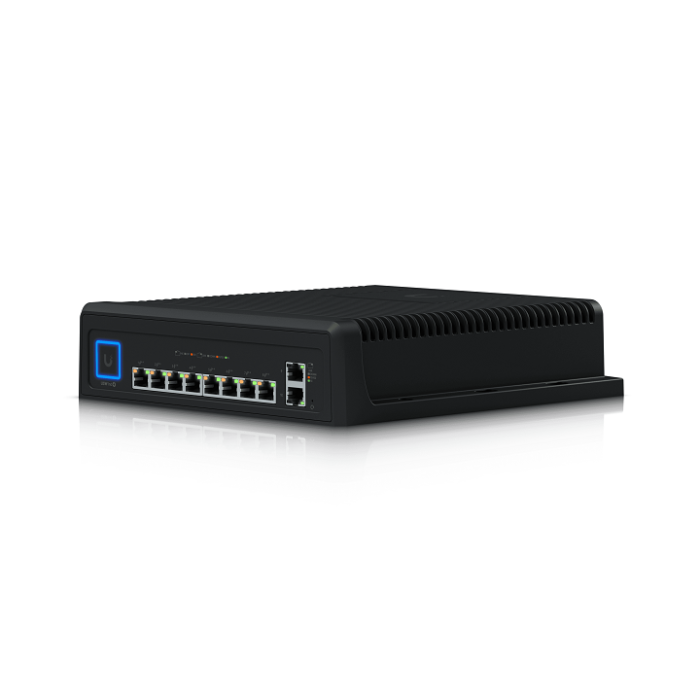

Ubiquiti Industrial 8-port Layer 2 PoE Switch - USW-Industrial
An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.
| PoE Switch Specifications | |
|---|---|
| Physical | |
| Dimensions | 252.5 x 238 x 60 mm (9.9 x 9.4 x 2.4") |
| Form Factor | Compact desktop, wall-mountable |
| Enclosure Material | Die-cast aluminum, black powder-coated |
| Port Layout | |
| 1 GbE RJ45 | 10 (8 × PoE++) |
| Max. PoE Standard | PoE++ |
| Total PoE Availability | 430W |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Loop Protection | ✓ |
| Hardware & Power | |
| PoE Ports | 8 × PoE++ |
| Max PoE Power per Port | 64W (PoE++) |
| Max Power Consumption (No PoE) | 20W |
| Max Power Consumption (Full PoE) | 450W |
| Power Method | Universal 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | Internal AC/DC, 450W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 68.2 BTU/hr (Excluding PoE output) |
| Protection | |
| ESD Protection | Air: +24 kV, Contact: +24 kV |
| Environmental | |
| Operating Temp (450W) | -40 to 50C (-40 to 122F) |
| Operating Temp (240W) | -40 to 60C (-40 to 140F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Software Requirements | |
| Application | UniFi Network |
| Minimum Version | 7.2.94 or later |
