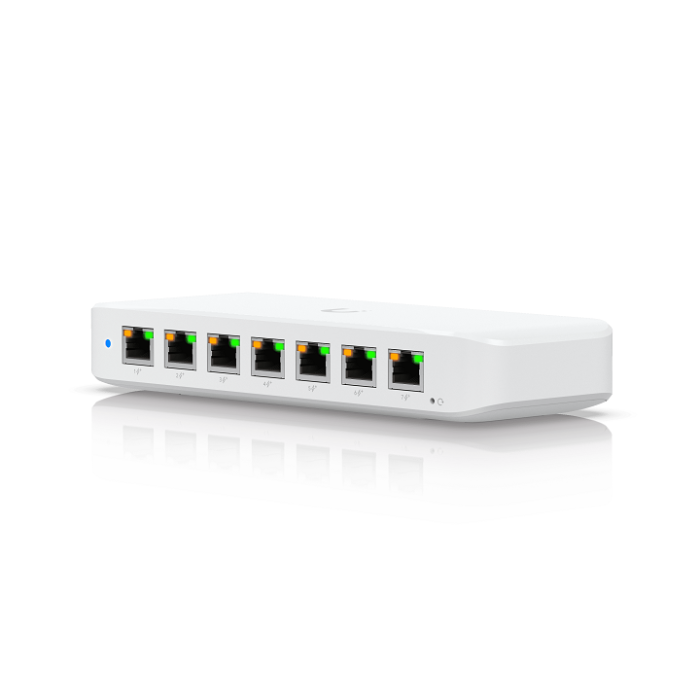

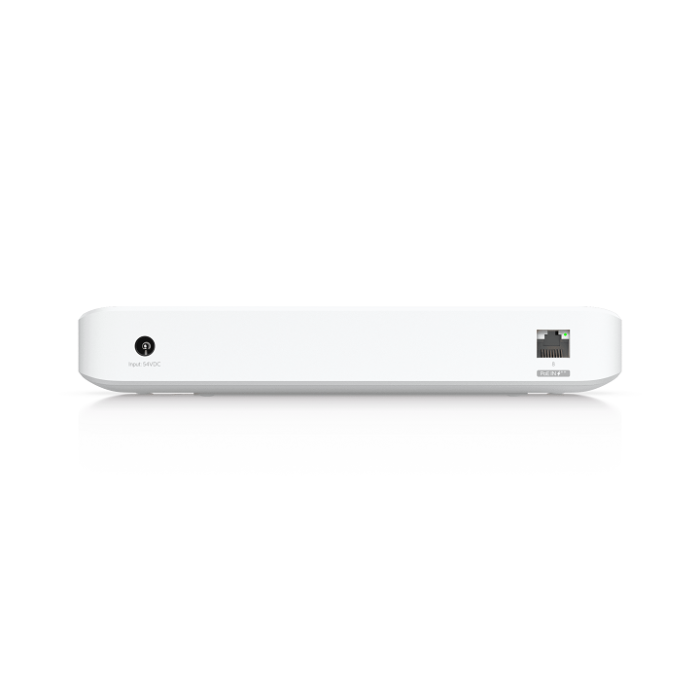

Ubiquiti Ultra 60W Layer 2 8-port GbE PoE Switch - USW-Ultra-60W-EU
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
#1: (7) GbE PoE+ output ports
#2: (1) GbE port with optional PoE++ input*
#3: 52W PoE availability with the included AC power adapter
| Hardware Specifications | |
|---|---|
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Port Layout | 1 GbE RJ45, 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W |
| Form Factor | Compact desktop, wall, magnetic |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| Loop Protection | Yes |
| Hardware | |
| PoE Ports | 7 x PoE+ 1 x PoE++ |
| Max. PoE Wattage per Port (PSE) | PoE+: 30W |
| Max. Power Consumption | 9W (Excl. PoE Output) with PoE input 8W (Excl. PoE Output) with adapter input 210W (Incl. PoE Output) with 210W AC adapter input |
| Power Method | (1) AC/DC adapter (Included), (1) PoE++ |
| Power Input Method | DC Input, PoE |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50—57V DC/PoE |
| Management | Ethernet |
| Heat Dissipation (Excl. PoE Output) | 30.708 BTU/hr 27.296 BTU/hr |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | PoE++ input: -30 to 60 C (-22 to 140F) 60W AC adapter input: -20 to 45C (-4 to 113F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 8.0.7 and later |
