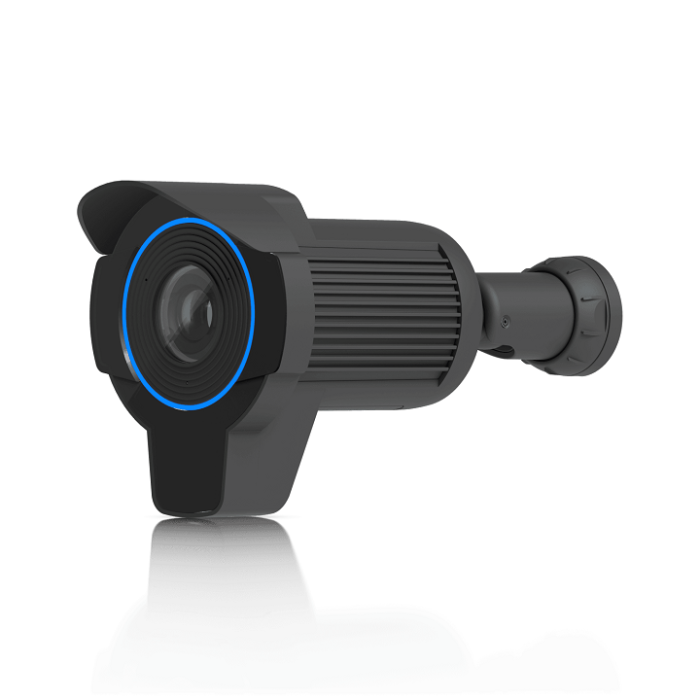

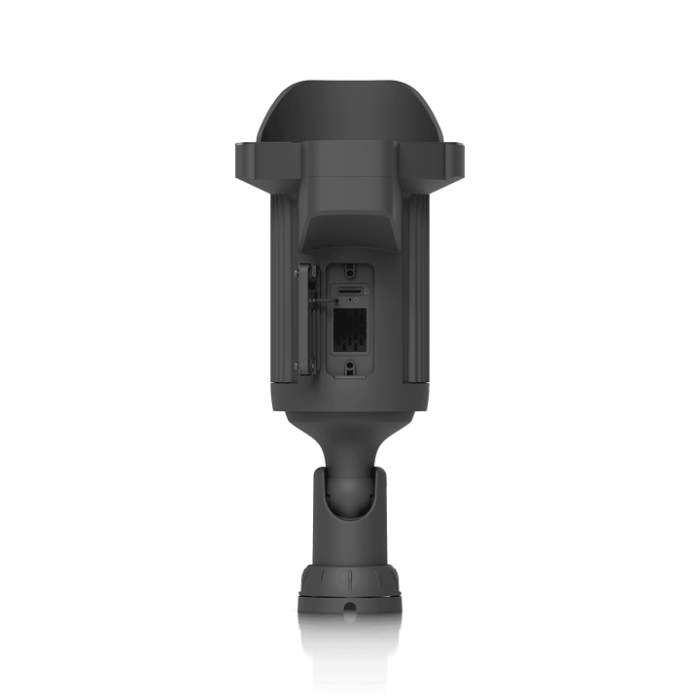

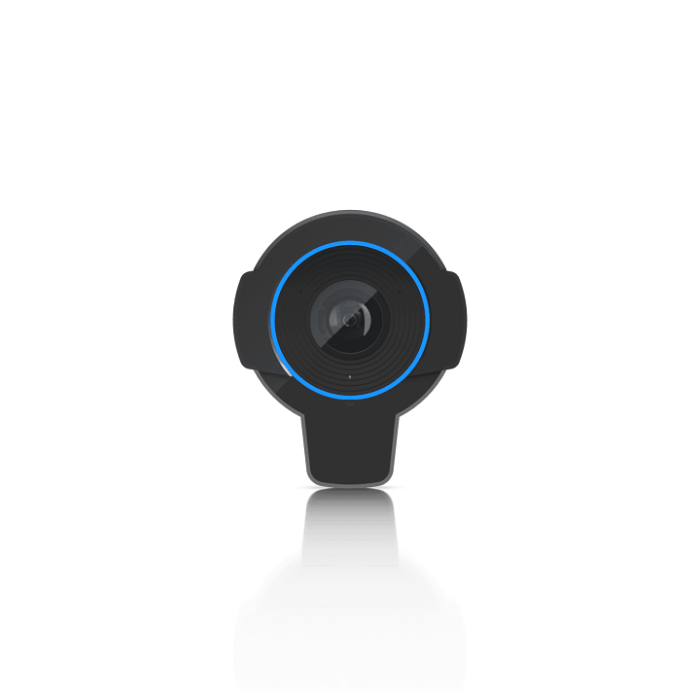

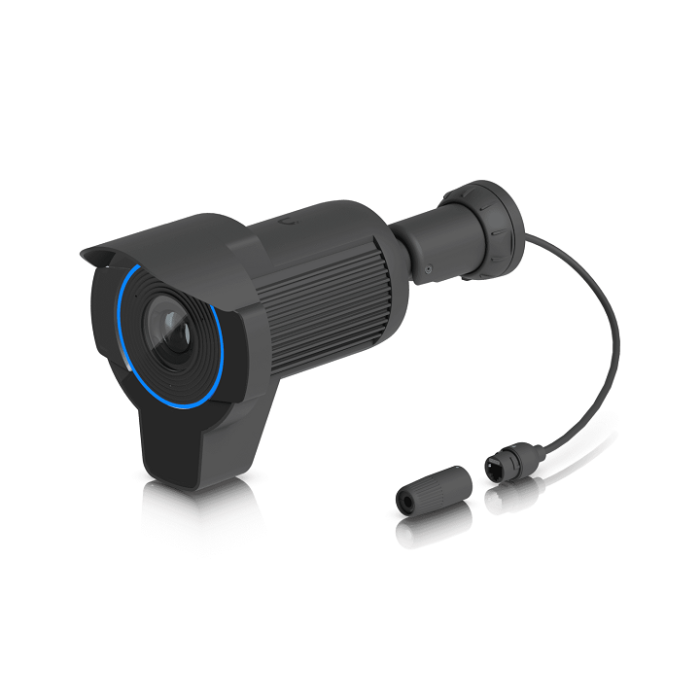

Ubiquiti AI LPR Specialized 4K Camera With 3x Optical Zoom - UVC-AI-LPR-B
Specialized 4K camera with 3x optical zoom and long-range IR night vision optimized for recognizing license plates on vehicles moving up to 90 km/h.
| Specifications | |
|---|---|
| Physical | |
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Aluminum alloy |
| Mounting | Wall, ceiling, pole mount (Included); Junction box, angled base (Optional) |
| Imaging | |
| Resolution | 4K / 8MP 3840 x 2160 (16:9) |
| Max Frame Rate | 30 FPS |
| Field of View |
Wide: H 109.9, V 60, D 127.7 Tele: H 35, V 19.8, D 40 |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| Zoom Mode | 3x Optical |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| IR Night Vision | 15 m (50 ft) |
| IR Capture Distance | 15 m (50 ft) |
| LPR Night Mode | LPR optimization filter |
| Smart Features | |
| License Plate Recognition | Yes |
| Smart Detections | People, Vehicles, Animals |
| Audio | Microphone |
| Networking | |
| Interface | GbE RJ45 port |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Max Power Consumption | 25.5W |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Durability | |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Operating Temperature | -20 to 50C (-4 to 122F) |
| Operating Humidity | 10 to 90% noncondensing |
| Storage / Expansion | |
| Expansion Slot | Micro SD memory card |
| Cable | |
| Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | 20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Other | |
| Button | (1) Factory-reset |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
