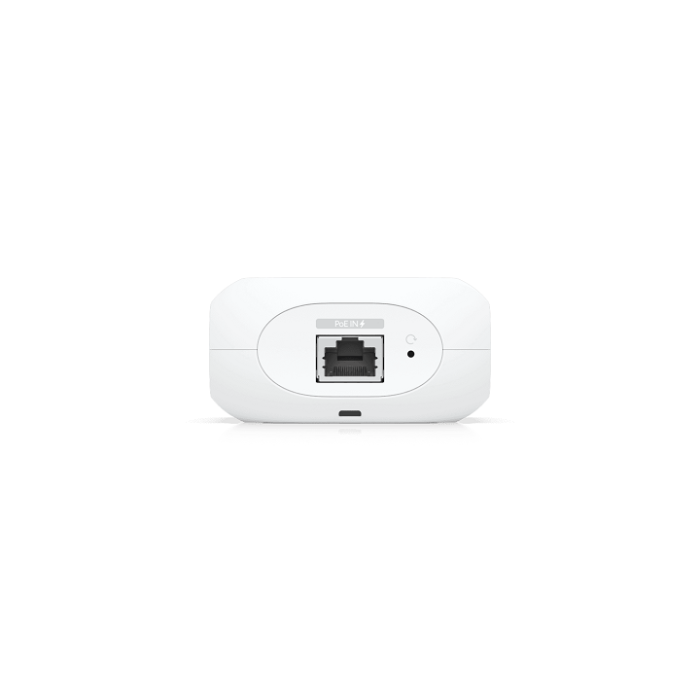

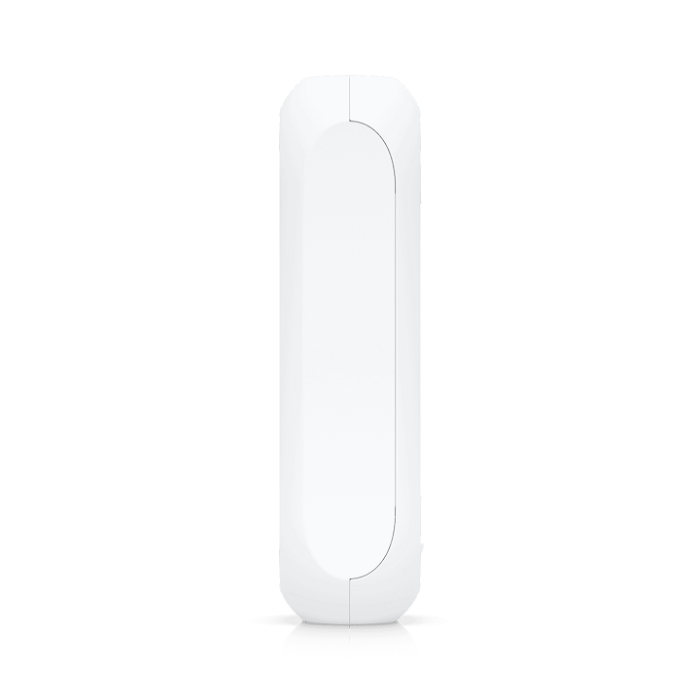

Ubiquiti AI Theta Hub - UVC-AI-Theta-Hub
Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.
| UVC-AI-Theta Hub Specifications | |
|---|---|
| Dimensions | |
| Dimensions | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5") |
| Mounting | |
| Mounting Options | Wall, ceiling mount (included) |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Theta Ports | Theta audio port, Theta lens port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Hardware | |
| Processor | Quad-core Arm Cortex-A53 |
| Enclosure Material | Aluminum alloy |
| Mount Material | Aluminum alloy |
| Power | |
| Power Method | PoE |
| Supported Voltage Range | 37–57 V DC |
| Max Power Consumption | 12.5 W |
| Power Output | 5 V DC, 1 A per port |
| Controls & Display | |
| LCM Display | 0.96" display |
| Button | Factory reset (1) |
| Environment | |
| Operating Temperature | -20 to 40C (-4 to 104F) |
| Operating Humidity | 10–90% non-condensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
