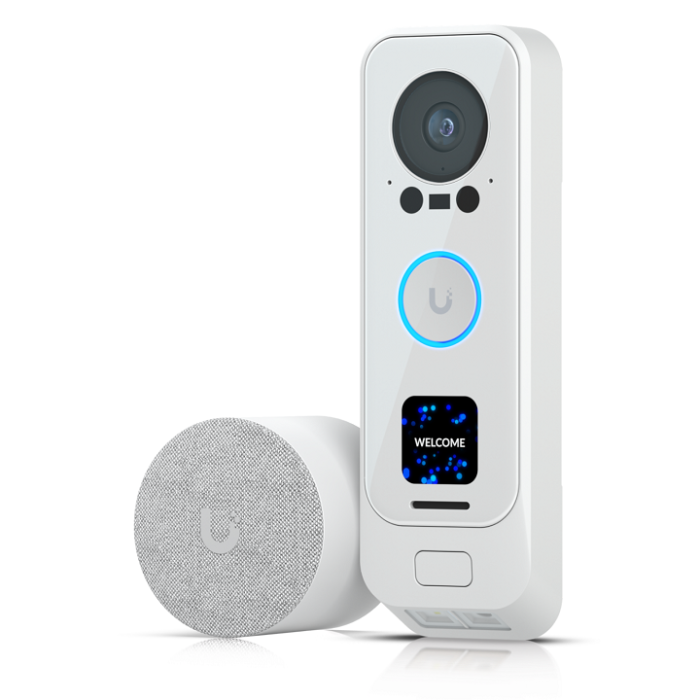

Ubiquiti G4 Doorbell Pro PoE Kit Premium UniFi Doorbell - UVC-G4 Doorbell Pro PoE Kit-White
Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
| UniFi Protect Doorbell (PoE) Specifications | |
|---|---|
| Physical | |
| Dimensions (Device) | 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") |
| Dimensions (Wall Mount) | 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") |
| Dimensions (Wedge) | 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") |
| Dimensions (On-wall Mount) | 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material |
Flat wall mount: Aluminum alloy 20 wedge mount: Polycarbonate |
| Weatherproofing | IPX4 |
| Video & Imaging | |
| Resolution | FHD |
| Output Resolution |
Main camera: 2MP (1600 x 1200, 4:3) Package camera: 2MP (1600 x 1200, 4:3) |
| Max Frame Rate | 30 FPS |
| Image Sensor |
Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| Field of View |
Main camera (LDC On): H 138, V 114, D 155 Main camera (LDC Off): H 160, V 117, D 160 Package camera: H 97.5, V 79.4, D 118.2 |
| Night Vision | |
| IR Night Vision | Up to 6 m (20 ft) |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Audio & Intercom | |
| Audio | Two-way audio |
| Intercom | Two-way intercom & doorbell access |
| Smart & Access Features | |
| Smart Detections | People, Vehicles, Animals |
| NFC Access | NFC card & keyfob access |
| Networking & Power | |
| Networking Interface | GbE RJ45 port |
| Power Method | PoE |
| Supported Voltage Range | 37–57 V DC |
| Max Power Consumption | 7 W |
| Hardware | |
| Processor | Quad-core Arm Cortex-A53 |
| Buttons |
Ring button (1) Factory reset (1) |
| Mounting | |
| Included Mounts | Wall mount, wedge |
| Optional Mounts | Gang box, junction box |
| Environment | |
| Operating Temperature | -30 to 40C (-22 to 104F) |
| Operating Humidity | 0–90% non-condensing |
| Software & Compliance | |
| Application | UniFi Protect (iOS & Android) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, SRRC |
