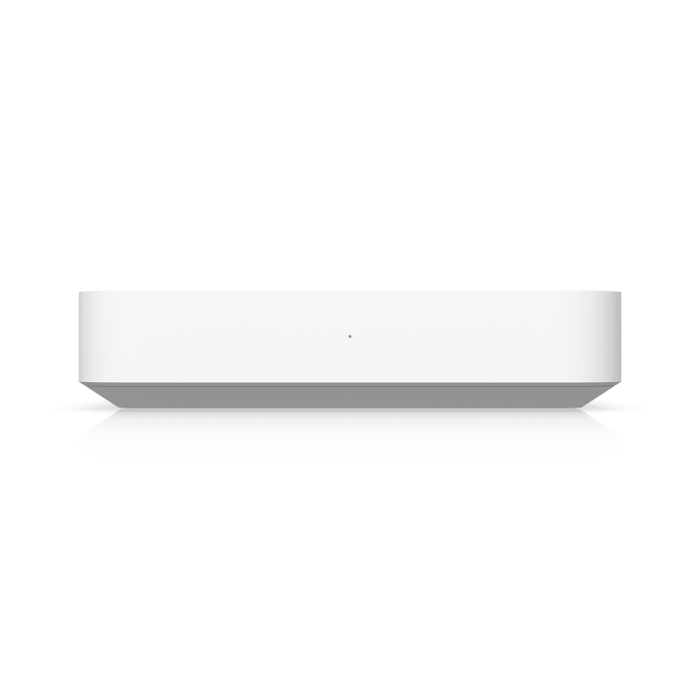

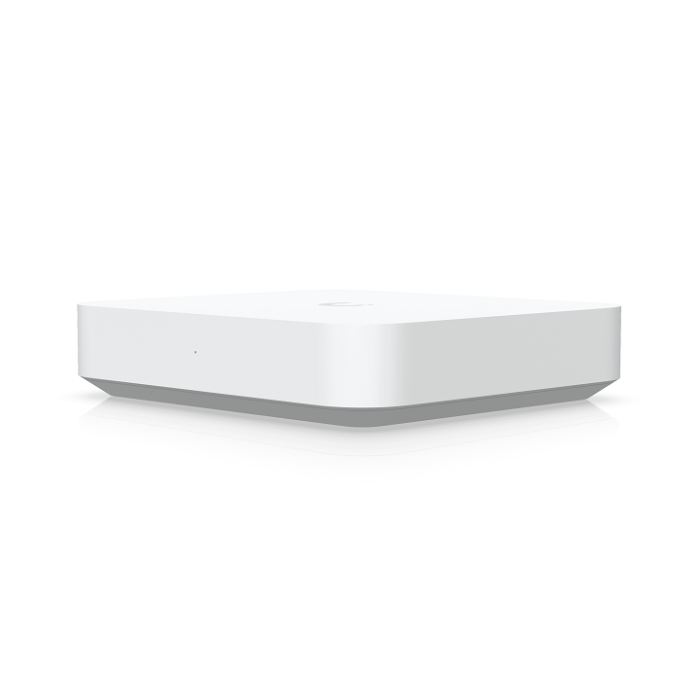

Ubiquiti Gateway Max - UXG-Max

Name: Ubiquiti Gateway Max - UXG-Max
Brand: Ubiquiti
SKU: UXG-Max
Availability: OutOfStock
Rating: 4 (1 reviews)

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.

Technical Specifications
Mechanical
Dimensions	141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Enclosure Material	Polycarbonate
Resistance	IK04
Hardware
Processor	Quad-core ARM Cortex-A53 at 1.5 GHz
Memory Information	2 GB DDR4
Management Interface	Ethernet, Bluetooth

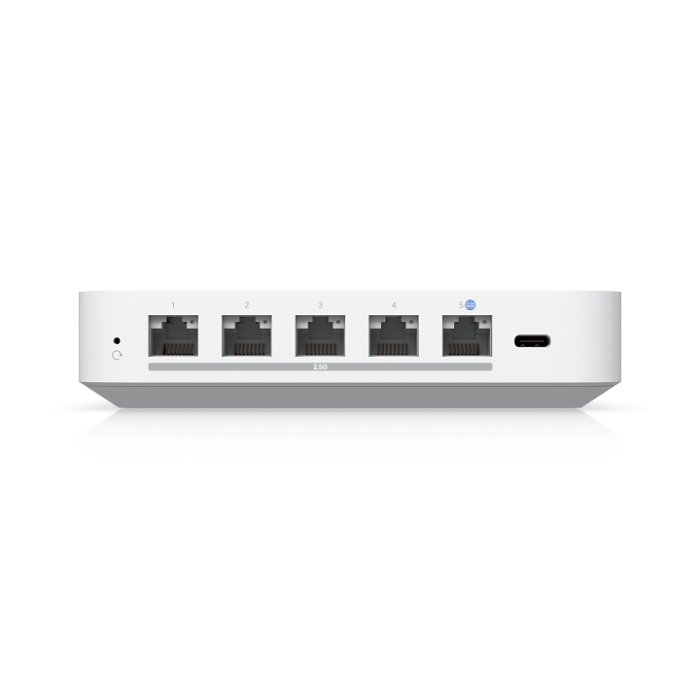

Networking Interface	LAN: (4) 2.5 GbE RJ45 ports WAN: (1) 2.5 GbE RJ45 port
Power Method	USB Type-C (5V/3A)
Supported Voltage Range	100–240V
Max. Power Consumption	9.6W
LED	Ethernet – White: link/activity
Button	(1) Factory Reset
Ambient Operating Temperature	-10 to 40C (14 to 104F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Gateway Features
Performance	WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Internet quality and outage reporting
Next-generation Security	Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall
Advanced Networking	License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IPv6 ISP support
Application Requirements	UniFi Network Version 8.1.113 and later
