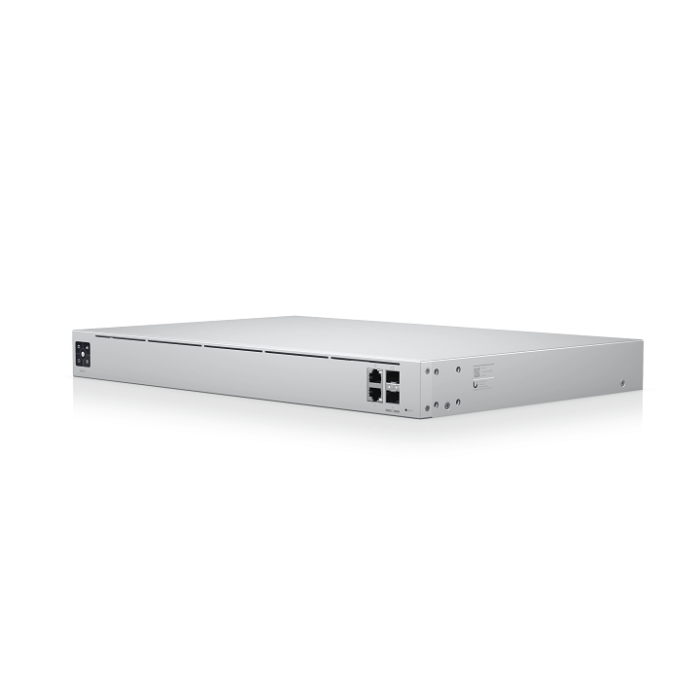

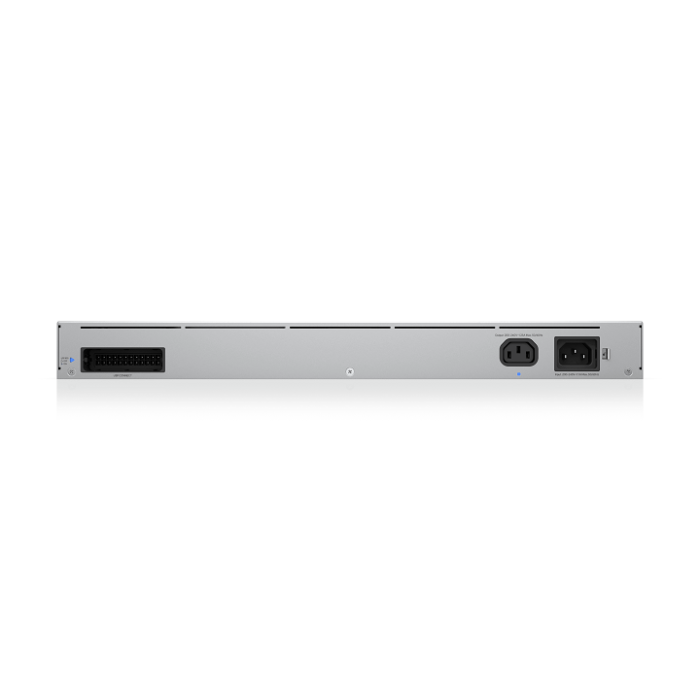

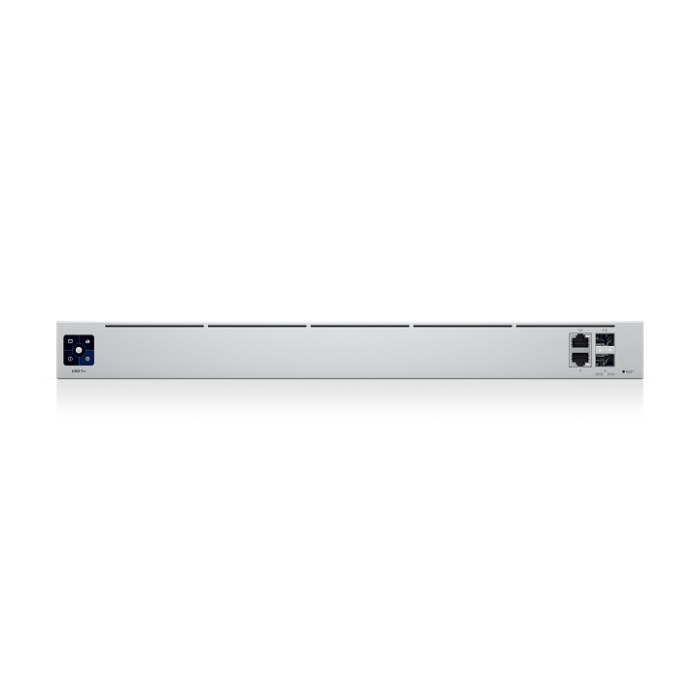

Ubiquiti Gateway Pro - UXG-Pro
10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
| Technical Specifications | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Max. WAN Port Count | 3 |
| Default WAN Ports | (1) 10G SFP+ (1) GbE RJ45 |
| Port Layout | 10G SFP+ – 2 (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | DC Power Backup |
| Security | Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures: 55,000+ (With CyberSecure) |
| VPN & SD-WAN | License-Free SD-WAN ✓ Site-to-Site VPN Site Magic ✓ IPsec ✓ OpenVPN ✓ VPN Server Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ VPN Client OpenVPN ✓ WireGuard ✓ |
| Networking | Multi-WAN Load Balancing ✓ Dynamic Routing (OSPF) ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality and Outage Reporting ✓ |
| Hardware | Max. Power Consumption: 30W Power Method US: (1) Universal AC input, 125V AC, 2.7A Max., 60 Hz (1) RPS DC input, 11.5V DC, 2.87A Worldwide: (1) Universal AC input, 200–240V AC, 1.7A Max., 50/60 Hz (1) RPS DC input, 11.5V DC, 2.87A Power Supply: AC/DC, internal, 50W Supported Voltage Range: 100–240V AC Processor: Quad-core ARM Cortex-A53 at 1.5 GHz System Memory: 2 GB Enclosure Material: Front panel – Aluminum CNC; Top cover/base – SGCC steel LCM Display: 1.3" touchscreen Management: Ethernet LEDs: Ethernet ✓, SFP+ ✓, RPS ✓, AC Outlet ✓ Button: (1) Factory Reset ESD/EMP Protection: Air +15kV, Contact +8kV Ambient Operating Temperature: -10 to 40C (14 to 104F) Ambient Operating Humidity: 5 to 95% noncondensing NDAA Compliant ✓ Certifications: CE, FCC, IC |
| Software | Application Requirements: UniFi Network Version 8.3.32 and later |
