H3C 9801A2K2 Best price in Dubai UAE
Supports flexible CloudAP, FitAP, and AnchorAP modes for versatile network deployments.
Enables unified wired and wireless management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to improve network efficiency and high-density connectivity.
Features BSS Coloring and Target Wake Time to reduce interference, improve spectrum reuse, and save power.
Provides WPA2/WPA3 security, rogue device monitoring, and encrypted CAPWAP links.
Optimizes wireless performance with intelligent RF management, fault diagnosis, traffic control, and fast roaming.
Supports application identification, traffic prioritization, secure boot protection, and energy-saving features.
H3C 9801A2K2 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6636 – Wi-Fi 6 Triple-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.05 kg |
| Dimensions (W × D × H) | 225 × 225 × 46 mm (without mounting brackets) |

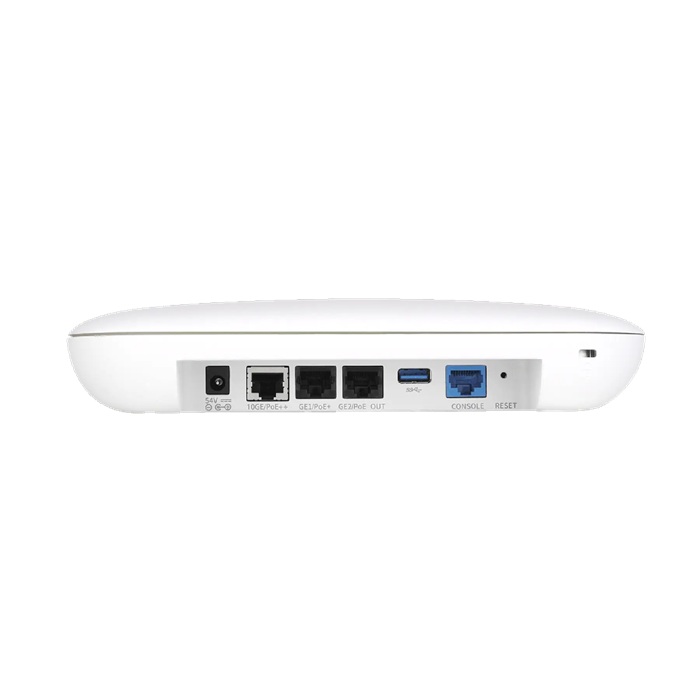

| Ethernet Interfaces | 1 × 100/1000M/2.5G/5G/10G Multigigabit RJ-45 PoE input; 1 × 100/1000M RJ-45 PoE input; 1 × 100/1000M RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console port |
| USB Port | 1 × USB 2.0, 2.5 W |
| PoE Input | Multigigabit Ethernet: 802.3bt/at/af; 100/1000M Ethernet: 802.3at/af |
| PoE Output | 1 × 100/1000M Ethernet, 802.3af |
| Local Power Supply | 54 V DC, center-positive circular plug (adapter sold separately) |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | Peak gain: 5 dBi at 5 GHz and 2.4 GHz; equivalent gain: 3 dBi at both bands |
| Built-in IoT Module | Bluetooth Low Energy (BLE) 5.1 |
| Frequency Bands | 2.4 GHz: 2.400–2.4835 GHz; 5 GHz: 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz and 5.725–5.850 GHz. Availability depends on the regulatory domain |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: up to 64-QAM; 802.11ac: up to 256-QAM; 802.11ax: up to 1024-QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 26 dBm; 2.4 GHz: 26 dBm. Actual power depends on local regulations and excludes antenna gain |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; mounting bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs for boot, association, operation and fault states |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | Operating and storage: 5%–95%, non-condensing |
| Protection Class | IP42 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 40 W (including PSE and USB); 22.5 W (excluding PSE and USB) |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440; FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU; (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 603,245 hours |
Software Specifications
| Product Type | Indoor tri-radio Wi-Fi 6 access point supporting 802.11a/b/g/n/ac/ac Wave 2/ax |
| Operating Modes | Fit AP, Cloud AP and Anchor AP; switching via CLI, wireless controller, Cloudnet platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Tri-Radio Configuration | 5.2 GHz: 4×4:4, 4.8 Gbps; 5.8 GHz: 2×2:2, 1.2 Gbps; 2.4 GHz: 4×4:4, 1.15 Gbps |
| Channel Widths | 5.2 GHz: 20/40/80/160 MHz; 5.8 GHz: 20/40/80 MHz; 2.4 GHz: 20/40 MHz |
| Maximum Transmission Speed | 7.15 Gbps |
| Maximum Clients | 1,536 total; up to 512 per radio, depending on the environment |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO, OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Basics | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, AC discovery, NAT, DTLS encryption, IPv4/IPv6, time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF and WLAN Management | Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; centralized, local and policy forwarding; VLAN binding; user isolation; traffic-, user- and band-based load balancing; band steering; 802.11k/v/r roaming |
| Additional WLAN Features | Multicast enhancement, BLE/RSSI location in Fit AP mode, IoT gateway support, Mesh, wireless probing, Hotspot 2.0 and Bonjour gateway |
| User Authentication | 802.1X, MAC, Portal, PSK, Private-PSK/PPSK and social media authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, AES, TKIP and CCMP |
| Forwarding Security | Packet and MAC filtering, broadcast storm suppression, EAD, management frame protection, WIPS and IP source guard (IPSG) |
| Layer 2 and Layer 3 | Static/DHCP IP configuration; DHCP server/client/relay; NAT, NAT66 and NAT logging; LLDP; STP; IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization and software recovery |
| QoS | WMM, QoS mapping and prioritization, packet filtering, traffic classification, CAR, user bandwidth management, ATF, CAC, application identification, SQA and UCC |
| Power Saving | Green AP mode, U-APSD and SM Power Save |
| Management and Maintenance | Web GUI via HTTP/HTTPS, SNMP v1/v2c/v3, MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF |
| IEEE Standards | 802.11a/b/g/n/ac/ac Wave 2/ax; 802.11d/e/h/i/w/u; 802.11k/v/r; 802.3af/at/bt; 802.15.1 |
| Wi-Fi Certifications | Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE) |
