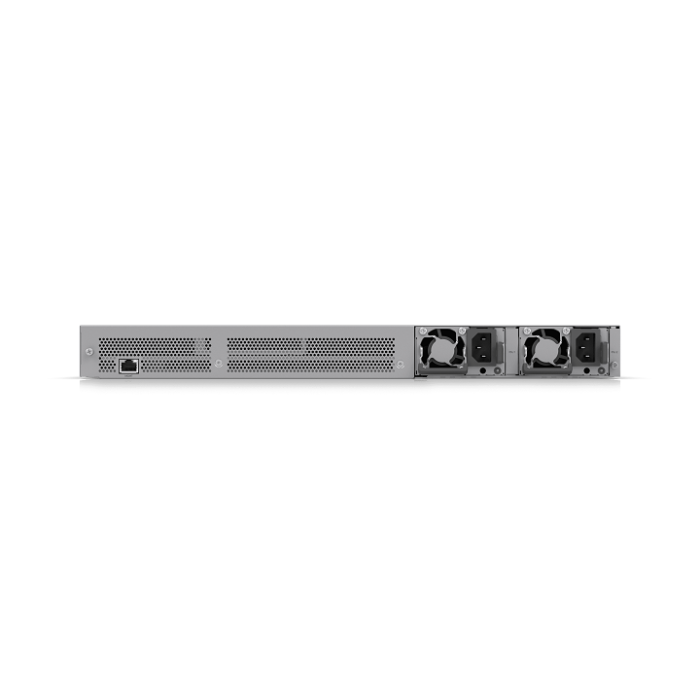

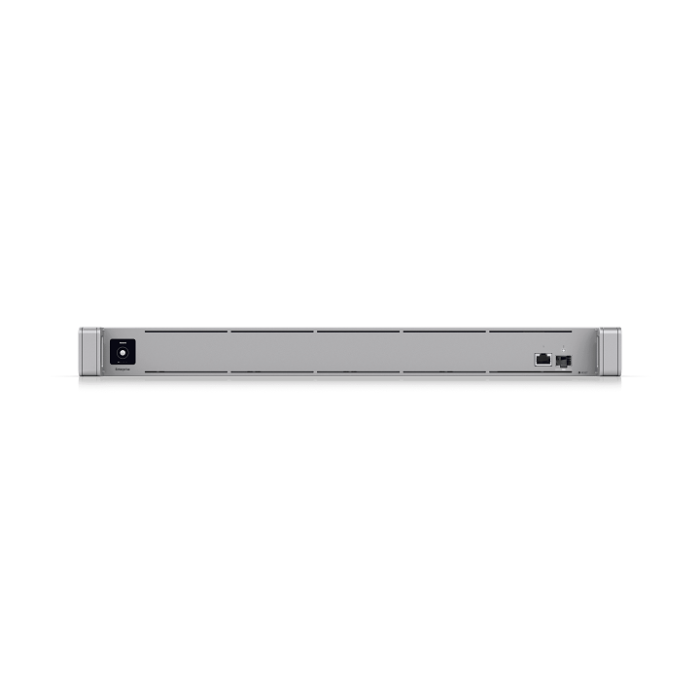

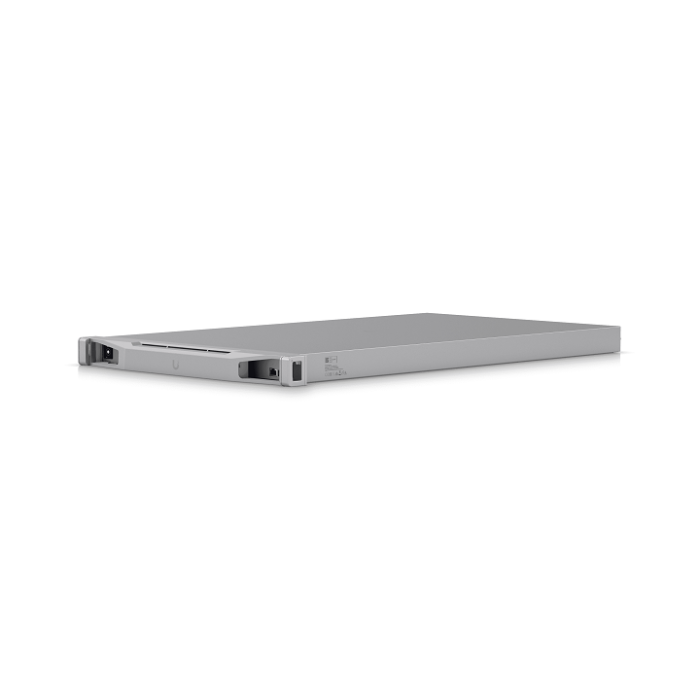

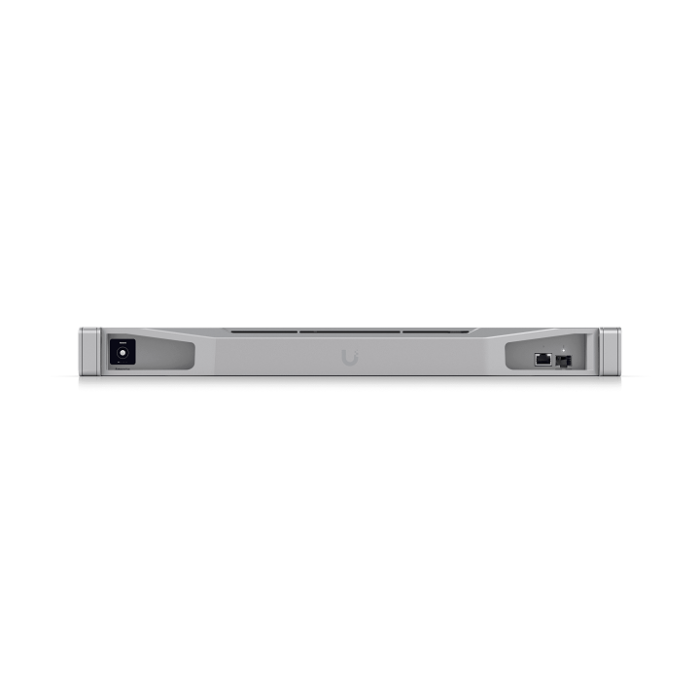

Ubiquiti CloudKey Enterprise - CK-Enterprise-EU
A UniFi Network Console platform specifically designed for massive scale.
Manage 1000+ UniFi Network devices and 10,000+ clients
(1) 10G SFP+ and (1) GbE RJ45 LAN port
(2) 550W redundant power supply units (PSUs)
Full 1U form-factor
Bluetooth for instant setup
| UniFi Network Controller / Server | |
|---|---|
| Dimensions | 787 x 43.7 x 481.4 mm (31 x 1.7 x 19") |
| Enclosure Material | Front panel: aluminum Chassis: SGCC steel |
| Mount Material | SGCC steel |
| Processor | 16-core Intel Xeon-SP Gold 5218 2.3 GHz |
| Memory | (2) 16 GB DDR4 ECC RDIMM |
| On-board Storage | (1) 256 GB, M.2 2280 SATA |
| Management Interface | Ethernet, Bluetooth |
| Networking Interface | LAN: (1) GbE RJ45, (1) 10G SFP+ MGMT LAN: (1) GbE RJ45 |
| Power Method | Universal AC input, 100—240V AC, 7A Max, 50/60 Hz |
| Power Supply | (2) Hot-swappable AC/DC PSU, 550W |
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient Operating Temperature | 0 to 35° C (32 to 95° F) |
| Ambient Operating Humidity | 8 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | Ethernet: White: link/activity SFP+: White: link/activity Power Supply: Off: no AC power present Steady green: AC power and DC output active Flashing green: AC power present and DC output inactive Steady amber: AC power lost/failure events Flashing amber: warning events |
| Application Requirements | UniFi Network: Version 7.3.83 and later |
