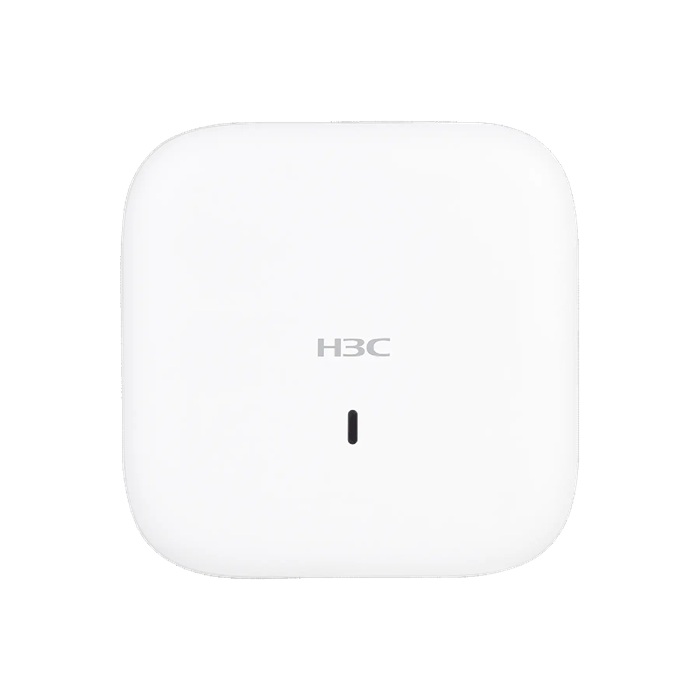

H3C 9801A2RE Best price in Dubai UAE
Supports CloudAP, FitAP, and AnchorAP modes for flexible deployment across diverse network environments.
Enables unified wired and wireless management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to reduce latency, improve spectrum efficiency, and support high-density connectivity.
Features BSS Coloring and Target Wake Time to minimize interference and improve power efficiency.
Provides WPA2/WPA3 security, WIPS rogue device monitoring, and encrypted CAPWAP links.
Optimizes wireless performance through intelligent RF management, fault diagnosis, traffic optimization, and fast roaming using 802.11k/v/r.
Supports Layer 4–7 application identification, traffic prioritization, secure boot protection, and energy-saving technologies.
H3C 9801A2RE Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6528i – Wi-Fi 6 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.05 kg |
| Dimensions (W × D × H) | 225 × 225 × 40 mm (without mounting brackets) |

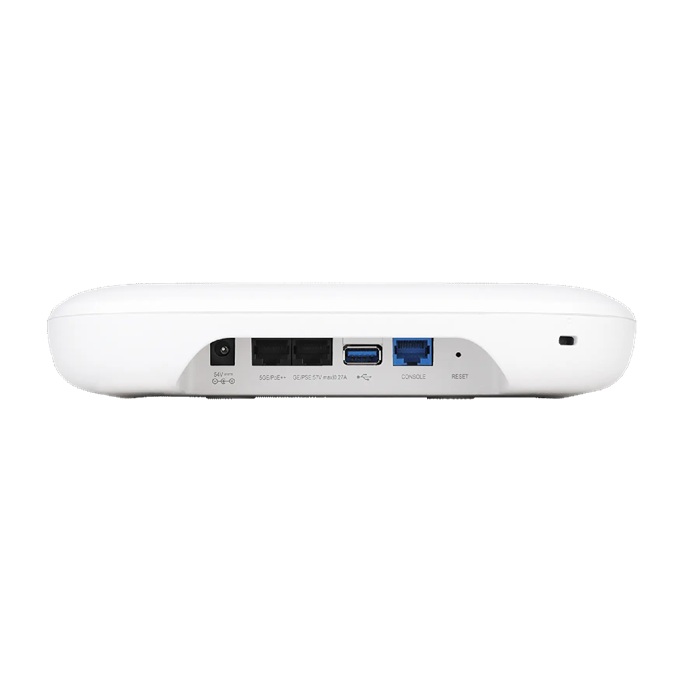

| Ethernet Interfaces | 1 × 100/1000M/2.5G/5G RJ-45 PoE input; 1 × 100/1000M RJ-45 PoE output |
| Other Interfaces | 1 × RJ-45 console port; 1 × USB 2.0 port (2.5 W) |
| PoE Input | 802.3bt/at |
| PoE Output | 802.3af |
| Local Power Supply | 54 V DC center-positive adapter (sold separately) |
| Antenna | Built-in omnidirectional antenna; peak gain: 6 dBi (5 GHz), 4 dBi (2.4 GHz); equivalent gain: 5 dBi (5 GHz), 3 dBi (2.4 GHz) |
| Built-in IoT Module | BLE 5.1 |
| Frequency Bands | 2.400–2.4835 GHz ISM; 5.150–5.250 GHz U-NII-1; 5.250–5.350 GHz U-NII-2A; 5.470–5.725 GHz U-NII-2C; 5.725–5.850 GHz U-NII-3/ISM |
| Modulation Technology | DSSS (802.11b), OFDM (802.11a/g/n/ac), OFDMA (802.11ax) |
| Modulation Modes | BPSK, QPSK, CCK, 16QAM, 64QAM, 256QAM and 1024QAM, depending on Wi-Fi standard |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 26 dBm on both 5 GHz and 2.4 GHz bands |
| Power Adjustment | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; bracket preinstalled |
| LED Indicators | Yellow, green and blue status indicators |
| Operating Temperature | −10°C to +55°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Rating | IP42 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 42.5 W including PSE and USB; 25 W excluding PSE and USB |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU, (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 1,859,450 hours |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 6 AP supporting 802.11a/b/g/n/ac, AC Wave 2 and ax |
| Operating Modes | Fit AP, Cloud AP and Anchor AC modes; configurable through CLI, controller, cloud platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Radio and MIMO | 5 GHz: 4×4:4, up to 4.8 Gbps; 2.4 GHz: 4×4:4, up to 1.15 Gbps; additional 1×1:1 scanning radio |
| Channel Bandwidth | 5 GHz: 20/40/80/160 MHz; 2.4 GHz: 20/40 MHz |
| Maximum Transmission Speed | 5.95 Gbps |
| Maximum Clients | 1,024 total (512 per radio) |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP discovery, NAT, DTLS encryption, IPv4/IPv6, AC time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF Management | Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; band steering; load balancing and roaming |
| Forwarding and VLAN | Centralized, local and policy forwarding; SSID/VLAN-based forwarding and binding; VLAN- and SSID-based user isolation |
| Roaming and Multicast | 802.11k/v smart roaming, 802.11r fast roaming, IGMP/MLD snooping and multicast-to-unicast conversion |
| Location and IoT | BLE and RSSI location, third-party RFID/Zigbee gateway support through PSE port, multi-hop Mesh, wireless probing and Hotspot 2.0 |
| User Authentication | 802.1X, MAC, Portal, guest/captive portal, PSK, Private PSK/PPSK and supported social media authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, EAP-GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, TKIP, CCMP and AES |
| Network Security | Packet and MAC filtering, broadcast storm suppression, wireless EAD, management frame protection, WIPS and IP source guard |
| Layer 2/Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66, NAT logging, LLDP, IPv4/IPv6, ICMP, ACL, TFTP, FTP and DNS |
| Service Assurance | Remote AP operation, Doctor AP diagnostics, spectrum analysis, 802.11ax-only access, intelligent bandwidth guarantees, port aggregation and broadcast suppression |
| Client Optimization | Weak-signal client blocking, roaming guidance, client relinking, channel reuse adjustment, fast data forwarding, shorter client sleep times and automatic software recovery |
| QoS | WMM, priority and policy mapping, L2–L4 filtering and traffic classification, CAR, per-client and SSID bandwidth management, ATF, CAC and application identification |
| Application Optimization | L2–L7 application identification, SIP-based audio/video service identification and prioritization through SQA and UCC |
| Power Saving | Green AP mode, U-APSD and Spatial Multiplexing Power Save |
| Management | Cloud AP web management over HTTP/HTTPS, controller-based SNMP v1/v2c/v3, MIB-II, SSH v2.0, Telnet, FTP, TFTP, CLI, Syslog and NETCONF |
| Secure Boot | Firmware protection and trusted boot chain |
| IEEE Standards | 802.11a/b/g/n/ac/AC Wave 2/ax, 802.11d/e/h/i/w/u/k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certification | Wi-Fi Alliance Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE) |
