H3C 9801A2VC Best price in Dubai UAE
Supports flexible CloudAP and FitAP deployment modes.
Enables unified network management through Cloudnet and AD-Campus.
Uses Wi-Fi 6 OFDMA and MU-MIMO for faster, low-latency connectivity.
Improves network capacity with BSS Coloring and TWT.
Provides WPA2/WPA3 security and rogue device protection.
Optimizes performance with intelligent RF management and fault diagnosis.
Supports fast roaming with 802.11k/v/r.
Enables application identification and traffic prioritization.
Protects firmware with H3C Secure Boot.
Reduces power consumption with energy-saving technologies.
H3C 9801A2VC Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6526 – Wi-Fi 6 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.05 kg |
| Dimensions (W × D × H) | 185 × 185 × 35 mm (without mounting brackets) |

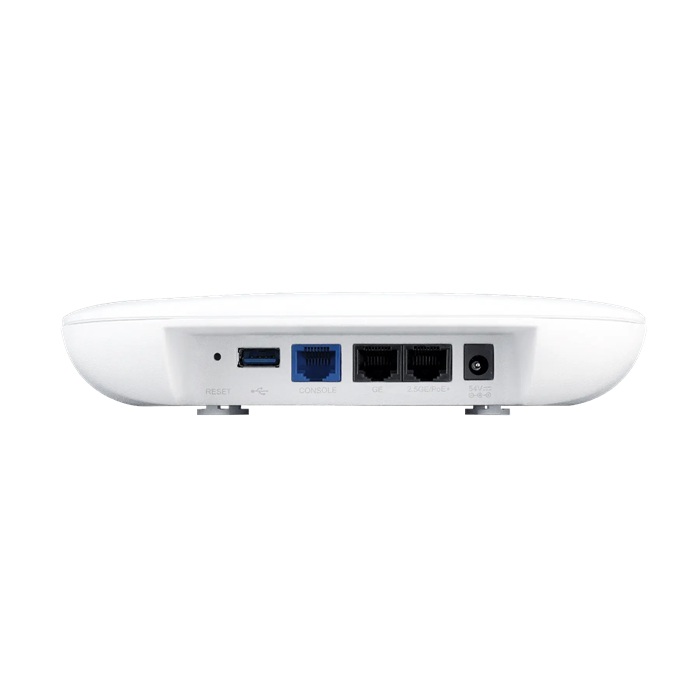

| Ethernet Interfaces | 1 × 100/1000M/2.5G RJ-45 PoE input; 1 × 100/1000M RJ-45 |
| Console Port | 1 × RJ-45 management console port |
| USB Port | 1 × USB 2.0 (2.5 W) |
| PoE Input | 100/1000M/2.5G Ethernet, IEEE 802.3af |
| Local Power Supply | 54 V DC center-positive adapter (sold separately) |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | Peak: 5 dBi on 5 GHz and 2.4 GHz; equivalent: 4 dBi on both bands |
| Built-in IoT Module | BLE 5.1 |
| Frequency Bands | 2.400–2.4835 GHz ISM; 5.150–5.250 GHz U-NII-1; 5.250–5.350 GHz U-NII-2A; 5.470–5.725 GHz U-NII-2C; 5.725–5.850 GHz U-NII-3/ISM |
| Modulation Technology | DSSS (802.11b), OFDM (802.11a/g/n/ac), OFDMA (802.11ax) |
| Modulation Modes | BPSK, QPSK, CCK, 16QAM, 64QAM, 256QAM and 1024QAM, depending on Wi-Fi standard |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 26 dBm; 2.4 GHz: 23 dBm |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Rating | IP41 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 20.1 W including USB; 17.6 W excluding USB |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU, (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 542,776 hours |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 6 AP supporting 802.11a/b/g/n/ac, AC Wave 2 and ax |
| Operating Modes | Fit AP and Cloud AP; configurable through CLI, wireless controller, cloud platform or reset button |
| Supported Wireless LAN Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Radio and MIMO | 5 GHz: 4×4:4, up to 4.8 Gbps; 2.4 GHz: 2×2:2, up to 575 Mbps |
| Channel Bandwidth | 5 GHz: 20/40/80/160 MHz; 2.4 GHz: 20/40 MHz |
| Maximum Transmission Speed | 5.375 Gbps |
| Maximum Number of Clients | 640 total: 512 on 5 GHz and 128 on 2.4 GHz |
| Maximum BSSIDs | 16 on 5 GHz; 8 on 2.4 GHz |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP discovery, NAT, DTLS encryption, IPv4/IPv6, AC time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF Management | Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; band steering; load balancing and roaming |
| Forwarding and VLAN | Centralized, local and policy forwarding; SSID/VLAN-based forwarding and binding; VLAN- and SSID-based user isolation |
| Roaming and Multicast | 802.11k/v smart roaming, 802.11r fast roaming and multicast-to-unicast conversion |
| Wireless Location and Mesh | BLE/RSSI location, secure multi-hop Mesh, wireless probing and Hotspot 2.0 |
| User Authentication | 802.1X, MAC, Portal, guest/captive portal, PSK, Private PSK/PPSK and social media authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, EAP-GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, TKIP, CCMP and AES |
| Network Security | Packet and MAC filtering, broadcast storm suppression, wireless EAD, management frame protection, WIPS and IP source guard |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66, NAT logging, LLDP, IPv4/IPv6, ICMP, ACL, TFTP, FTP and DNS |
| Service Assurance | Remote AP operation, Doctor AP diagnostics, spectrum analysis, 802.11ax-only access, intelligent bandwidth guarantees, broadcast suppression and automatic software recovery |
| Client Optimization | Weak-signal client blocking, roaming guidance, client relinking, channel reuse adjustment, fast data forwarding and client sleep optimization |
| QoS | WMM, priority and policy mapping, L2–L4 filtering and traffic classification, CAR, per-client and SSID bandwidth management, ATF and CAC |
| Power Saving | Green AP mode, U-APSD and Spatial Multiplexing Power Save |
| Management and Maintenance | Cloud AP web management over HTTP/HTTPS, controller-based SNMP v1/v2c/v3, MIB-II, SSH v2.0, Telnet, FTP, TFTP, CLI, Syslog and NETCONF |
| Secure Boot | Firmware protection and trusted boot chain |
| IEEE Standards | 802.11a/b/g/n/ac/AC Wave 2/ax, 802.11d/e/h/i/w/u/k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certification | Wi-Fi Alliance Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE) |
