H3C EWP-WA7320i-FIT Best price in Dubai UAE
Supports Wi-Fi 7 with tri-band 2×2 MIMO and speeds up to 8.647 Gbps.
Features 320 MHz channels, 4096-QAM, MLO, and enhanced OFDMA.
Provides 10GbE and 10G SFP+ uplinks with redundant connectivity and PoE+ support.
Supports dual 5 GHz operation through flexible 6 GHz radio switching.
Includes Bluetooth, USB, and PoE-out for IoT connectivity.
Supports CloudAP, FitAP, and AnchorAP modes with Cloudnet and AD-Campus management.
Offers WPA2/WPA3 security, intelligent RF optimization, fast roaming, and AI-powered power saving.
H3C EWP-WA7320i-FIT Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7320i – Wi-Fi 7 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 790 g |
| Dimensions (W × D × H) | 205 × 205 × 35 mm |

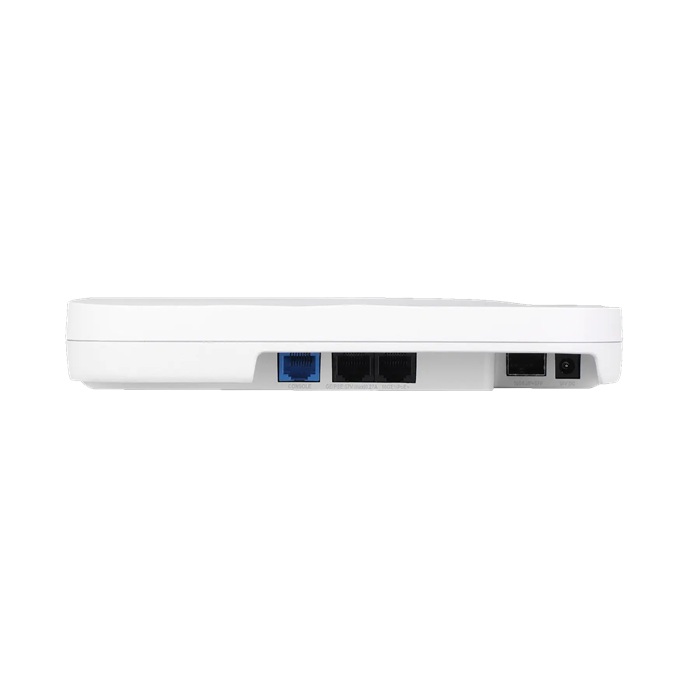

| Interfaces | 1 × 10G Multigigabit RJ-45 PoE input; 1 × 10G SFP+ PoE input; 1 × 2.5G RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console |
| USB Port | 1 × USB 2.0, 2.5W |
| PoE Input | 802.3at/af via RJ-45 or SFP+ |
| PoE Output | 802.3af via Ethernet |
| Local Power | 54V DC power adapter, sold separately |
| Antenna | Built-in omni-directional; peak gain up to 5.6dBi |
| IoT | BLE 5.4 |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Maximum Transmit Power | 6GHz: 23dBm; 5GHz: 23dBm; 2.4GHz: 23dBm |
| Power Adjustment | 1dBm increments |
| Installation | Wall or ceiling mounting; bracket preinstalled |
| Operating Temperature | –10°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Protection | IP42; 4KV common-mode surge protection |
| Maximum Power Consumption | 20.6W via 802.3at; 11.5W via 802.3af; 35.6W via DC |
| Security | Kensington security slot; factory reset/AP mode button |
| LED Indicators | Yellow, green and blue status LEDs |
| MTBF | 2,795,745 hours at 25°C |
| Safety Standards | IEC/EN 62368-1; GB 4943.1 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, EN 303 687; FCC Part 15E |
| RoHS | EN IEC 63000:2018 |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AC |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 2×2:2 dual-radio configurations supporting 6GHz, 5GHz and 2.4GHz combinations |
| Channel Bandwidth | 6GHz up to 320MHz; 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 8.647Gbps (6GHz + 5GHz); 6.453Gbps (6GHz + 2.4GHz); 5.764Gbps (dual 5GHz); 3.57Gbps (5GHz + 2.4GHz) |
| Maximum Clients | 1,024, up to 512 per radio |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, MLO, preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring/Spatial Reuse, MU-MIMO and OFDMA |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| CAPWAP & Tunnel | CAPWAP, DTLS, IPv4/IPv6, dual tunnels, PPPoE and IPsec |
| Forwarding | Centralized, local and policy forwarding; VLAN binding and user isolation |
| RF Management | Automatic channel, power and bandwidth adjustment |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Load Balancing | Traffic-, user- and frequency-based load balancing |
| Band Steering | Steers compatible Wi-Fi 6E/7 clients toward the 6GHz radio |
| Wireless Location | BLE and RSSI-based location in Fit AP mode |
| IoT | Third-party RFID or Zigbee gateway support through the PSE port |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK, EAP and cloud social login |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, CCMP, WIPS, IPSG and management frame protection |
| Layer 2/3 | DHCP, NAT/NAT66, LLDP, STP, IPv4/IPv6 ACL, DNS, FTP and TFTP |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| Hotspot | Hotspot 2.0 support in Fit AP mode |
| Bonjour Gateway | mDNS forwarding across VLANs |
| QoS | WMM, QoS mapping, user bandwidth management, ATF, CAC and application identification |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, intelligent bandwidth guarantee, roaming optimization and fast forwarding |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Management | Web GUI, SNMP v1/v2c/v3, CLI, SSH, Telnet, FTP/TFTP and Syslog |
| Secure Boot | Firmware integrity protection through a trusted boot chain |
| NETCONF | Supported in Cloud AP mode |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.11d/e/h/i/w/u/k/v/r; 802.3af/at; 802.3bz/az; 802.15.1 |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 |
