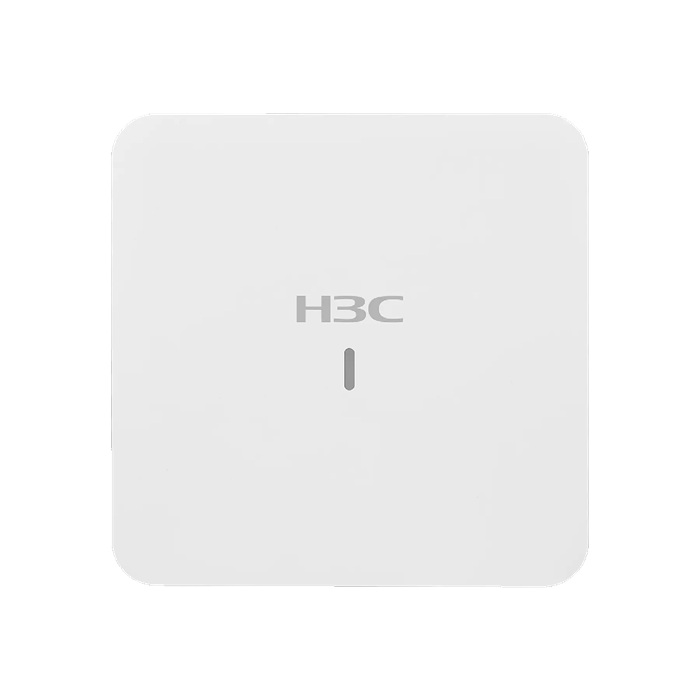

H3C 9801A5S1 Best price in Dubai UAE
Supports CloudAP and FitAP modes for flexible deployment across different network environments.
Enables unified wired and wireless management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to reduce latency, improve spectrum efficiency, and support high-density connectivity.
Features BSS Coloring and Target Wake Time to minimize interference and improve power efficiency.
Provides WPA2/WPA3 security, WIPS rogue device monitoring, and encrypted CAPWAP links.
Enhances network performance with intelligent RF optimization, wireless fault diagnosis, traffic management, and fast roaming using 802.11k/v/r.
Supports Layer 4–7 application identification, traffic prioritization, secure boot protection, and energy-saving technologies.
H3C 9801A5S1 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6520 Wi-Fi 6 Dual-Radio Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 0.5 kg |
| Dimensions (W × D × H) | 180 × 180 × 32 mm (without mounting brackets) |

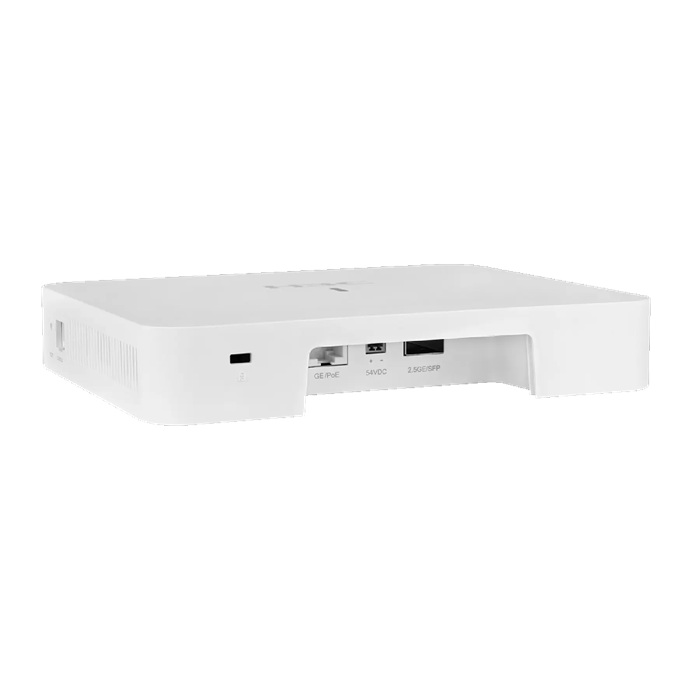

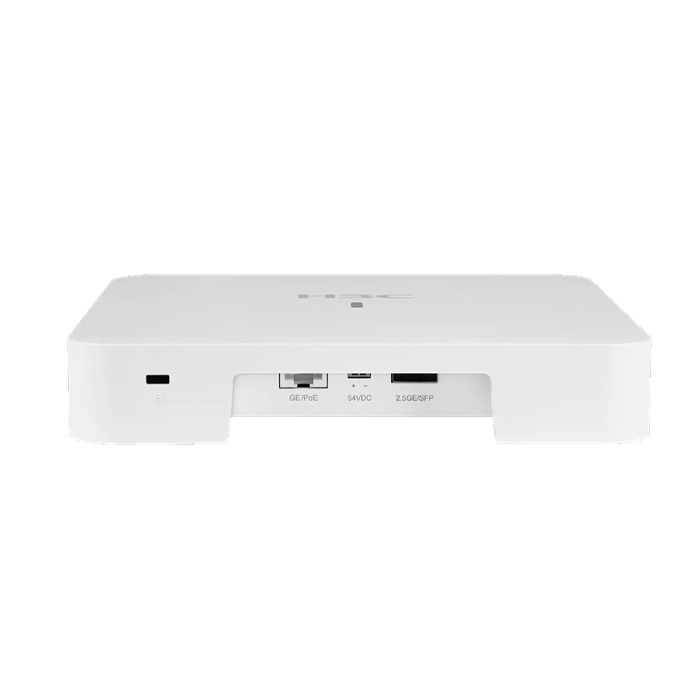

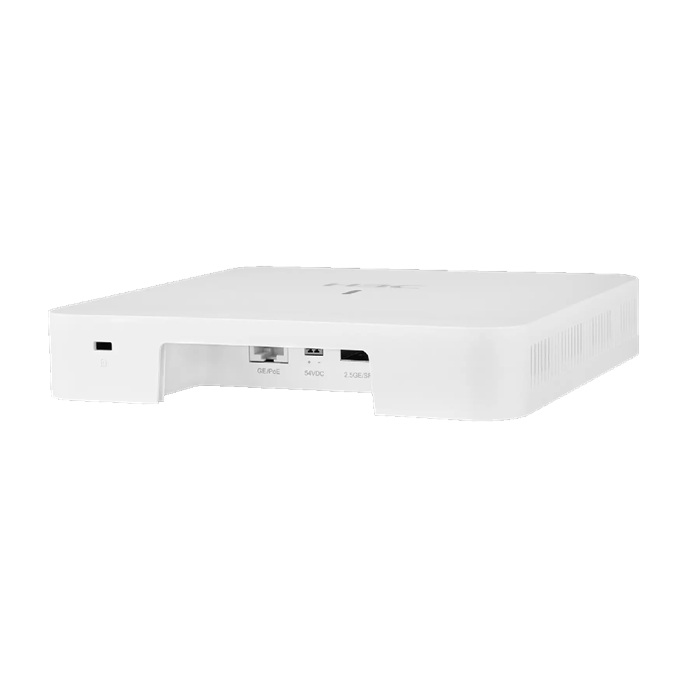

| Interfaces | 1 × 100/1000M RJ-45 Ethernet PoE input; 1 × 1000M/2.5G optical port; 1 × RJ-45 management console port |
| PoE Input | 100/1000M Ethernet, IEEE 802.3af |
| Local Power Supply | 54V DC Phoenix connector (adapter sold separately) |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | Peak gain: 5 dBi at 5GHz and 4 dBi at 2.4GHz; equivalent gain: 4 dBi at 5GHz and 3 dBi at 2.4GHz |
| Built-in IoT Module | BLE 5.1 |
| Frequency Bands | 2.400–2.4835GHz ISM; 5.150–5.250GHz U-NII-1; 5.250–5.350GHz U-NII-2A |
| Modulation Technology | 802.11b DSSS; 802.11a/g/n/ac OFDM; 802.11ax OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5GHz: 23 dBm; 2.4GHz: 23 dBm. Combined multi-chain power, excluding antenna gain; actual power depends on local regulations. |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and CloudAP/FitAP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; bracket preinstalled on the AP |
| LED Indicators | Yellow, green and blue status LEDs for bootloader, association, operation and fault states |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Rating | IP41 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 12.95 W |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU and (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 864,581 hours |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 6 AP supporting 802.11a/b/g/n/ac/AC Wave 2/ax |
| AP Operating Modes | Fit AP (wireless controller-managed) and Cloud AP (H3C intelligent O&M platform); modes switchable via CLI, controller, platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Dual-Radio Configuration | 5GHz: 2×2:2, 2.4Gbps; 2.4GHz: 2×2:2, 575Mbps |
| Supported Bandwidth | 5GHz: 20/40/80/160MHz; 2.4GHz: 20/40MHz |
| Maximum Transmission Speed | 2.975Gbps (2×2 at 160MHz on 5GHz and 2×2 at 40MHz on 2.4GHz) |
| Maximum Clients | 256 total; 128 per band |
| Maximum BSSIDs | 8 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP with unicast, broadcast, DNS, DHCP or static IP AC discovery; NAT; DTLS encryption; IPv4/IPv6; AC time synchronization; dual AC tunnels; PPPoE client; IPsec in Cloud AP mode |
| RF Management | Automatic channel, transmit power and bandwidth adjustment |
| SSID and Forwarding | SSID hiding; client limits by SSID/RF; centralized, local and policy forwarding; local forwarding by SSID/VLAN; VLAN binding by interface, SSID or MAC |
| Isolation and Load Balancing | VLAN/SSID user isolation; traffic-, user- and frequency-band-based load balancing; band steering to prioritize 5GHz clients |
| Roaming | 802.11k/v smart roaming and 802.11r fast transition roaming |
| Multicast Enhancement | Multicast-to-unicast conversion to reduce network congestion |
| Wireless Location | BLE and RSSI location in Fit AP mode |
| Mesh and Hotspot | Mesh links, link security and multi-hop Mesh; wireless probing; Hotspot 2.0 in Fit AP mode |
| Authentication | Local/remote 802.1X, MAC and Portal authentication; guest/captive portal; portal MAC-trigger; PSK, Private-PSK and PPSK; Google, Facebook and Twitter authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP v0/MSCHAPv2, EAP-FAST, PEAP v1/GTC and EAP-SIM |
| Wireless Security | TKIP, CCMP, AES, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise and Enhanced Open (OWE) |
| Security Features | Packet and MAC filtering, broadcast storm suppression, EAD, management frame protection, WIPS and IP Source Guard (IPSG) |
| Layer 2/Layer 3 | Static/DHCP IP; DHCP server/client/relay; NAT, NAT66 and NAT logging; LLDP; IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Continued client service during AC tunnel disconnection; Doctor AP diagnostics in Fit AP mode; spectrum analysis; 802.11ax-only access; intelligent bandwidth guarantee; port aggregation; broadcast suppression; weak-signal client blocking; roaming navigation and relinking; RF channel reuse optimization; fast client-data forwarding; reduced client sleep time; automatic software recovery |
| QoS | WMM/EDCA; TOS/DSCP priority marking and mapping; QoS policies by SSID/VLAN; Layer 2–4 filtering and classification; CAR; per-client and per-SSID bandwidth management; dynamic bandwidth; ATF; CAC; Layer 2–7 application identification; SIP-based SQA and UCC audio/video prioritization |
| Power Saving | Green AP mode, U-APSD and SM Power Save |
| Management and Maintenance | Cloud AP web management via HTTP/HTTPS; SNMP v1/v2c/v3 in Fit AP mode via controller; MIB RFC 1213 and RFC 3418; SSH v2, Telnet, FTP and TFTP; CLI; Syslog in Cloud AP mode; secure boot; NETCONF in Cloud AP mode |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/AC Wave 2/ax, 802.11d/e/h/i/w/u, 802.11k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certification | Wi-Fi 6, WMM, WPA/WPA2/WPA3 Enterprise and Personal (SAE), Enhanced Open (OWE) |
