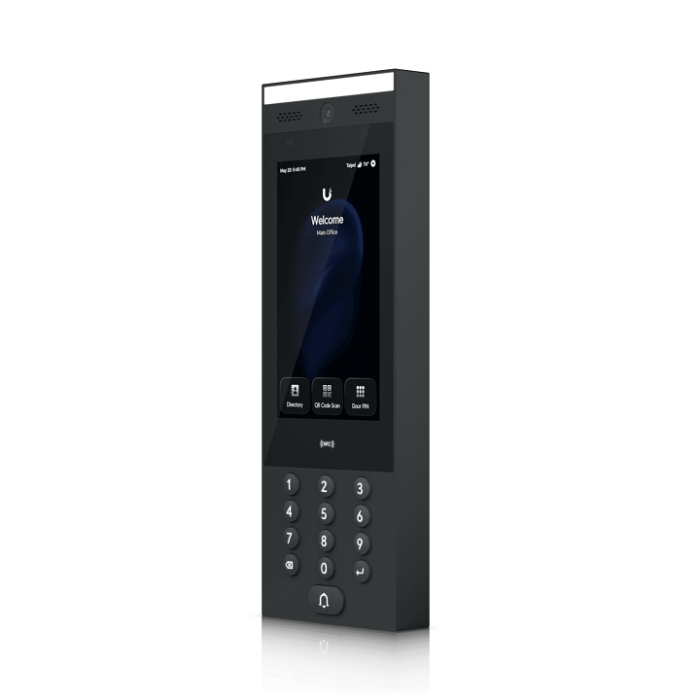

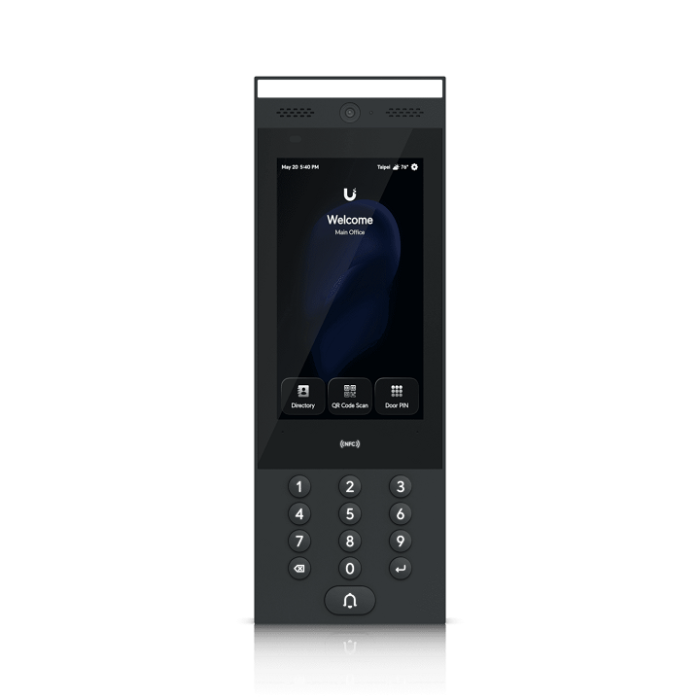

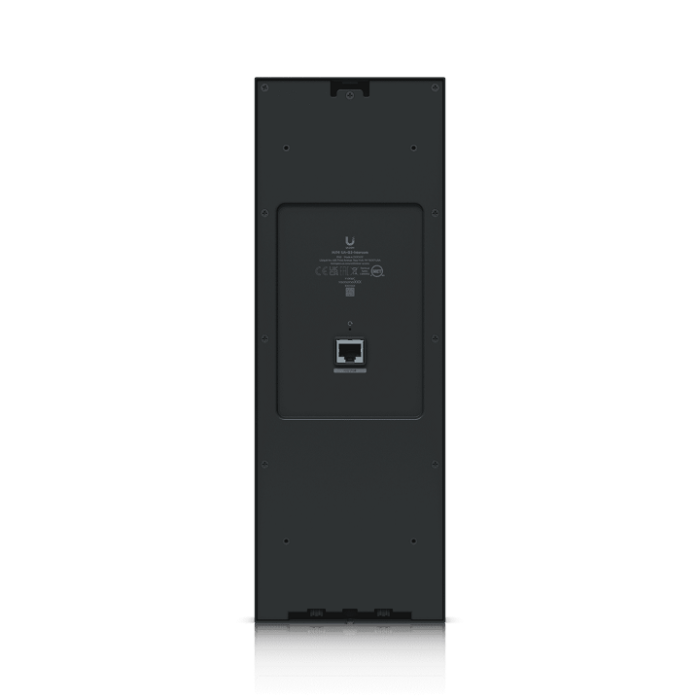

Ubiquiti G3 Intercom Indoor/Outdoor Intercom - UA-G3-Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
| G3 Intercom Specifications | |
|---|---|
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1 in) |
| Integrated Camera | Yes |
| Access Methods | NFC Card & Keyfob, PIN, Apple/Google Wallet, Mobile Unlock |
| Two-Way Intercom & Doorbell Access | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
| Weatherproofing | IP65 |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting Options | Wall mount (included), gooseneck pedestal adapter, surface angle, flush mount, sunshield kit (optional) |
| Indoor / Outdoor Use | Yes |
| Device Operating Temperature | -30 to 60C (-22 to 140F) |
| Display Operating Temperature | -25 to 60C (-13 to 140F) |
| Operating Humidity | 5–90% non-condensing |
| Networking Interface | 1 x GbE RJ45 |
| Connectivity | Bluetooh BLE 4.2, NFC |
| Power Method | PoE (48V DC, Class 2 PSU, LPS/PS2 PSU) |
| Max Power Consumption | 13W |
| Sensors | Proximity sensor, ALS sensor |
| Display Size | 177 mm (7") diagonal |
| Screen Technology | Capacitive multi-touch |
| Luminance | Max 1000 nits (typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| Microphone | Yes |
| Speaker | Yes |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A/B, 15693, 18092, MIFARE Classic / DESFIRE, Sony FeliCa ID, NFC Forum T1T–T5T, ECP 2.0 |
| LEDs | Amber |
| Buttons | 1 x Factory-reset |
| PoE Cabling Requirements | Cat 5e minimum; 26 AWG for patch cords, 24 AWG for horizontal/riser cable |
| UL 294 Statement | Compliance with IEEE 802.3 not verified; complies with NEC ANSI/NFPA 70 Article 725.121 for Class 2 & 3 circuits |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Software Management | UniFi Access |
| Software Version | Check at https://unifi.ui.com |
