H3C 9801A71B Best price in Dubai UAE

Name: H3C 9801A71B Best price in Dubai UAE
Brand: H3C
SKU: 9801A71B
Availability: InStock
Rating: 4 (1 reviews)

Supports Wi-Fi 7 with 2×2 MIMO and speeds up to 3.57 Gbps.

Supports 160 MHz channels, 4096-QAM, MLO, and enhanced OFDMA.

Provides 1×2.5GE, 1×5G optical, and 1×GE ports for flexible connectivity.

Supports CloudAP, FitAP, and AnchorAP modes with Cloudnet and AD-Campus management.

Features AI-powered dynamic power saving to reduce energy consumption.

Offers WPA2/WPA3 security, rogue device detection, and secure boot.

Supports intelligent RF optimization, fast roaming, and wireless fault diagnosis.

Enquire on Whatsapp

Description

H3C 9801A71B Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7320 – Wi-Fi 7 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai

Hardware Specifications

Weight	0.55 kg
Dimensions (W × D × H)	205 × 205 × 35 mm (without mounting brackets)

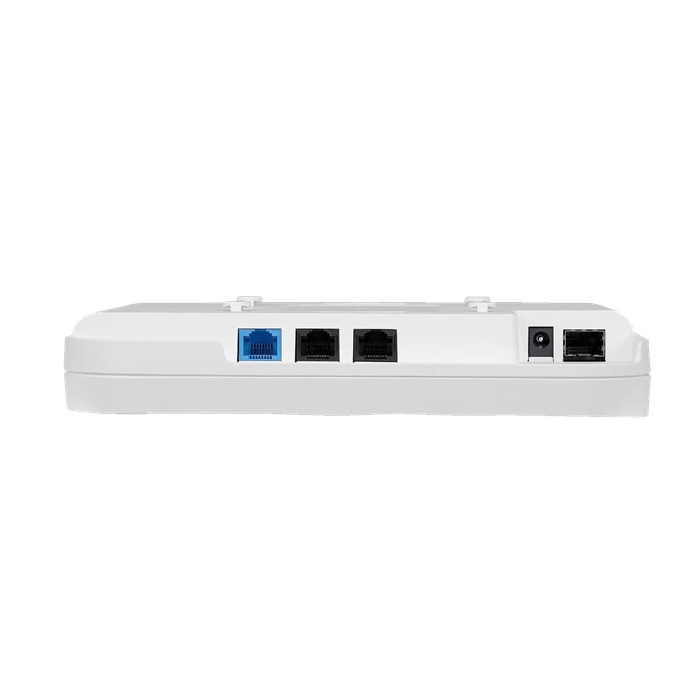

Interfaces	1 × 100/1000M/2.5G RJ-45 PoE input; 1 × 1G/2.5G/5G SFP+ optical PoE input; 1 × 10/100/1000M Ethernet RJ-45
Console Port	1 × RJ-45 management console port
USB Port	1 × USB 2.0, 2.5 W
PoE Input	RJ-45 Ethernet and SFP+ optical ports; IEEE 802.3af/at
Local Power Supply	54 V DC adapter or PoE injector (sold separately)
Antenna Type	Built-in omnidirectional antenna
Antenna Gain	6 GHz: 4.6 dBi; 5 GHz: 5.0 dBi; 2.4 GHz: 4.0 dBi; BLE 2.4 GHz: 4.0 dBi
Built-in IoT Module	BLE 5.3
Frequency Bands	2.4 GHz: 2.400–2.4835 GHz; 5 GHz: 5.150–5.895 GHz; 6 GHz: 5.925–7.125 GHz, subject to regulatory domain
Modulation Technology	DSSS, OFDM and OFDMA
Modulation Modes	BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM and 4096-QAM
Data Rates	802.11b: up to 11 Mbps; 802.11a/g: up to 54 Mbps; 802.11n: up to 600 Mbps; 802.11ac: up to 6,933 Mbps; 802.11ax: up to 9,608 Mbps; 802.11be: up to 23,059 Mbps
Maximum Transmit Power	6 GHz: 23 dBm; 5 GHz: 23 dBm; 2.4 GHz: 23 dBm
Adjustable Power Granularity	1 dBm increments
Reset Button	Factory reset and Cloud AP/Fit AP mode control
Security Slot	Kensington security slot
Installation	Wall or ceiling mounting; mounting bracket preinstalled
LED Indicators	Yellow, green and blue status LEDs
Operating Temperature	–10°C to +50°C
Storage Temperature	–40°C to +70°C
Humidity	5%–95%, non-condensing
Protection Class	IP41
Surge Protection	4 kV common-mode
Maximum Power Consumption	802.3at with USB: 17.3 W; 802.3at without USB: 14.8 W; 802.3af: 12 W; DC: 17.3 W
Safety Standards	IEC/EN 62368-1, GB 4943.1
EMC Standards	EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/9254.2, GB 17625.1/17625.2, IEC/EN 61000-3-2/-3-3 and IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11
Radio Standards	ETSI EN 300 328, EN 301 893, EN 300 440, EN 303 687, FCC Part 15E
RoHS Standards	EN IEC 63000:2018
Health Standards	EN 50385:2017, EN IEC 62311:2020
MTBF (25°C)	688,292 hours

Software Specifications

Product Type	Indoor dual-radio Wi-Fi 7 access point supporting IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be
Operating Modes	Fit AP, Cloud AP and Anchor AC
Supported Controllers	H3C WX2800X, WX3800X and WX5800X Series Wireless LAN Controllers
Radio Configuration	Dual-radio mode: 5 GHz 2×2:2 at 2.882 Gbps + 2.4 GHz 2×2:2 at 0.688 Gbps; alternative 6 GHz and 2.4 GHz configuration listed in the source
Channel Bandwidth	6 GHz: up to 160 MHz; 5 GHz: up to 160 MHz; 2.4 GHz: up to 40 MHz
Maximum Transmission Speed	3.57 Gbps using 2×2 160 MHz on 5 GHz or 6 GHz and 2×2 40 MHz on 2.4 GHz
Maximum Clients	1,024 clients listed: 512 on 6 GHz/5 GHz and 512 on 2.4 GHz, as specified in the source
Maximum BSSIDs	16 per radio
Wi-Fi 7 Features	4096-QAM, Multi-Link Operation (MLO), preamble puncturing, Multi-RU, uplink/downlink MU-MIMO and OFDMA
Wi-Fi 6 Features	Target Wake Time (TWT), BSS Coloring, spatial reuse, MU-MIMO and OFDMA
WLAN Technologies	A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, transmit beamforming, cellular coexistence, MRC and CDD/CSD
Tunnel Management	CAPWAP, DTLS encryption, IPv4/IPv6, AC discovery, NAT, time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode
WLAN Management	Automatic RF adjustment, SSID hiding, client limits, centralized/local/policy forwarding, VLAN binding, user isolation, load balancing, band steering and 802.11k/v/r roaming
Additional WLAN Features	Multicast enhancement, BLE/RSSI location, Mesh, wireless probing, Hotspot 2.0 and Bonjour gateway
User Authentication	802.1X, MAC, Portal, PSK, Private-PSK/PPSK, EAP and social-media authentication in Cloud AP mode
EAP Methods	EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, EAP-GTC and EAP-SIM
Wireless Security	WPA2, WPA3, OWE, AES, TKIP, WEP40/104, packet and MAC filtering, broadcast suppression, EAD, management frame protection, WIPS and IPSG
Layer 2/3 Features	Static/DHCP IP configuration, DHCP server/client/relay, NAT/NAT66, NAT logging, LLDP, STP, IPv4/IPv6 ICMP, ACL, TFTP, FTP and DNS
Service Assurance	Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, intelligent bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization and software recovery
QoS	WMM, QoS prioritization and mapping, packet filtering, traffic classification, CAR, user bandwidth management, Air Time Fairness (ATF), Call Admission Control (CAC), SQA and UCC
Power Saving	Green AP, U-APSD and Spatial Multiplexing Power Save
Management and Maintenance	Web GUI via HTTP/HTTPS, SNMP v1/v2c/v3, MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF
IEEE Standards	802.11a/b/g/n/ac/ac Wave 2/ax/be, 802.11d/e/h/i/w/u/k/v/r, 802.3af/at, 802.3az and 802.15.1
Wi-Fi Certifications	Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2, WPA3 Enterprise/Personal (SAE) and Enhanced Open (OWE)
