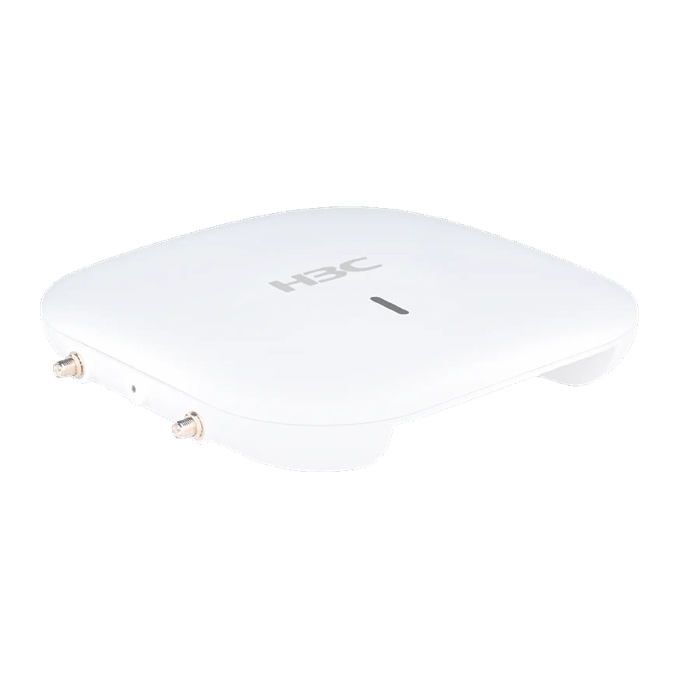

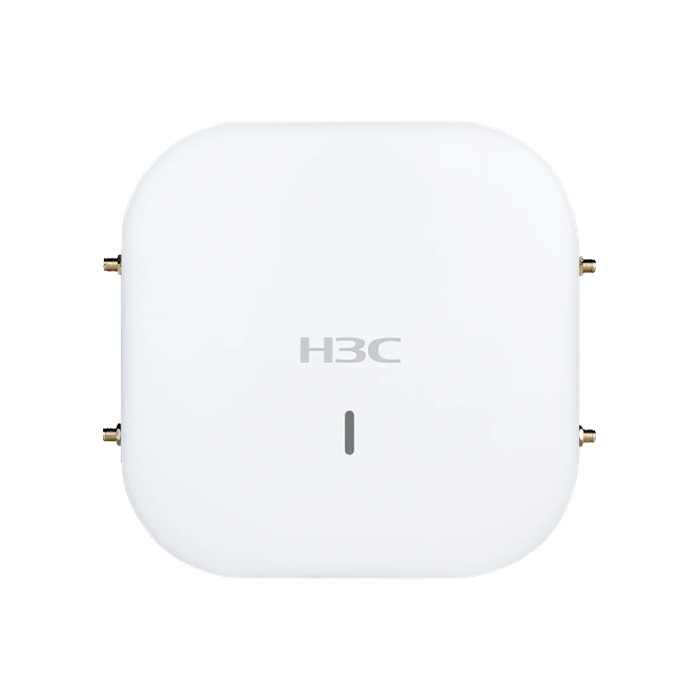

H3C 9801A2VD Best price in Dubai UAE
Supports flexible CloudAP and FitAP deployment modes.
Enables unified network management through Cloudnet and AD-Campus.
Uses Wi-Fi 6 OFDMA and MU-MIMO for efficient, low-latency connectivity.
Improves network capacity with BSS Coloring and TWT.
Provides WPA2/WPA3 security and rogue device protection.
Optimizes wireless performance with intelligent RF management and fault diagnosis.
Supports fast roaming with 802.11k/v/r.
Enables application identification and traffic prioritization.
Protects firmware with H3C Secure Boot.
Reduces power consumption with energy-saving technologies.
H3C 9801A2VD Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6526E – Wi-Fi 6 Dual-Radio Wireless Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.05 kg |
| Dimensions (W × D × H) | 185 mm × 185 mm × 35 mm (without mounting brackets) |

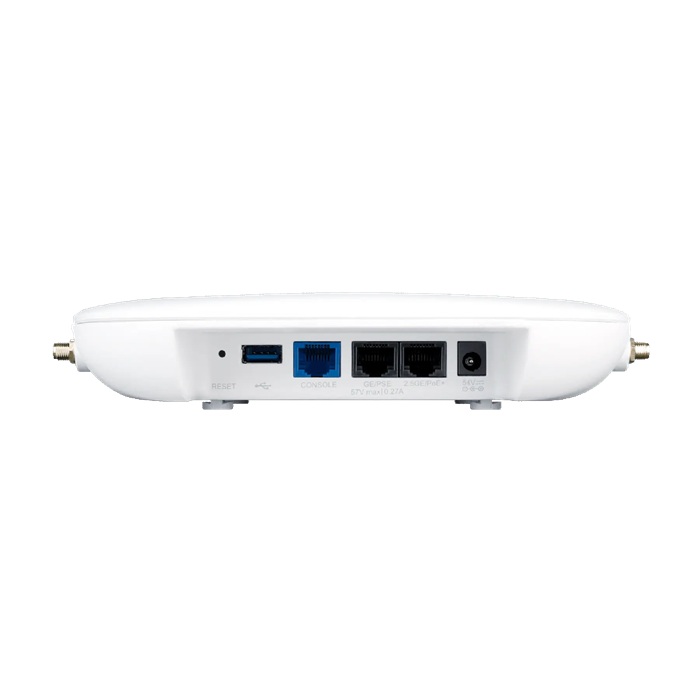

| Ethernet Interfaces | 1 × 100/1000M/2.5G RJ-45 PoE input; 1 × 100/1000M RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console port |
| USB Port | 1 × USB 2.0, 2.5 W |
| PoE Input | 802.3af/at, 100/1000M/2.5G Ethernet |
| PoE Output | 802.3af, 100/1000M Ethernet |
| Local Power Supply | 54V DC, center-positive circular plug; adapter sold separately |
| Antenna | External antenna, sold separately; gain depends on antenna |
| Built-in IoT Module | Bluetooth Low Energy (BLE) 5.1 |
| Frequency Bands | 2.400–2.4835 GHz ISM; 5.150–5.250 GHz U-NII-1; 5.250–5.350 GHz U-NII-2A; 5.470–5.725 GHz U-NII-2C; 5.725–5.850 GHz U-NII-3/ISM |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 26 dBm; 2.4 GHz: 23 dBm, excluding antenna gain |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; mounting bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Class | IP41 |
| Surge Protection | 4 kV common-mode |
| Power Consumption | 20.1 W with USB; 17.6 W without USB |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU, (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 542,776 hours |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 6 access point supporting 802.11a/b/g/n/ac, AC Wave 2 and ax |
| Operating Modes | Fit AP managed by a wireless controller; Cloud AP managed by the H3C intelligent O&M platform |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 5 GHz: 4×4:4, up to 4.8 Gbps; 2.4 GHz: 2×2:2, up to 575 Mbps |
| Channel Bandwidth | 5 GHz: 20/40/80/160 MHz; 2.4 GHz: 20/40 MHz |
| Maximum Transmission Speed | 5.375 Gbps |
| Maximum Clients | 640 total: 512 on 5 GHz and 128 on 2.4 GHz |
| Maximum BSSIDs | 16 on 5 GHz; 8 on 2.4 GHz |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO, OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Technologies | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP discovery via unicast, broadcast, DNS, DHCP or static IP; NAT, DTLS encryption, IPv4/IPv6, AC clock synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF Management | Automatic channel, transmit power and bandwidth adjustment; SSID hiding; client limits; centralized, local and policy forwarding |
| VLAN and User Management | VLAN binding by interface, SSID or MAC; VLAN/SSID user isolation; traffic-, user- and band-based load balancing; band steering |
| Roaming | 802.11k/v smart roaming and 802.11r fast transition |
| Wireless Services | Multicast-to-unicast conversion, BLE/RSSI location in Fit AP mode, Mesh and multi-hop Mesh, wireless probing, Hotspot 2.0 in Fit AP mode, Bonjour gateway and mDNS forwarding across VLANs |
| User Authentication | 802.1X, MAC and Portal authentication; guest/captive portal; MAC-triggered Portal; PSK/PPSK; Google, Facebook and Twitter login in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, TKIP, CCMP and AES; packet and MAC filtering; broadcast storm suppression; EAD, management frame protection, WIPS and IPSG |
| Layer 2 and Layer 3 | Static/DHCP IP addressing; DHCP server/client/relay; NAT, NAT66 and NAT logging; LLDP; IPv4/IPv6; ICMP, ACL, TFTP, FTP and DNS |
| Service Assurance | Remote AP operation during AC tunnel disconnection, Doctor AP diagnostics, spectrum analysis, 802.11ax-only access, bandwidth guarantees, port aggregation on supported models, broadcast suppression, weak-signal client blocking, roaming guidance, channel reuse optimization and software recovery |
| Quality of Service | WMM, priority and QoS policy mapping, Layer 2–4 packet filtering and traffic classification, CAR, per-client and per-SSID bandwidth management, Air Time Fairness (ATF) and Call Admission Control (CAC) |
| Power Saving | Green AP mode, U-APSD and Spatial Multiplexing Power Save |
| Management | Cloud AP web management via HTTP/HTTPS; SNMP v1/v2c/v3 through the controller; MIB-II; SSH v2.0, Telnet, FTP/TFTP, CLI, Syslog and NETCONF |
| Secure Boot | Firmware integrity protection using a trusted boot loader |
| IEEE Wireless Standards | 802.11a/b/g/n/ac, AC Wave 2, ax, 802.11d/e/h/i/w/u/k/v/r |
| Other IEEE Standards | 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certification | Wi-Fi Alliance Wi-Fi 6, WMM, WPA/WPA2/WPA3 Enterprise and Personal (SAE), Enhanced Open (OWE) |
