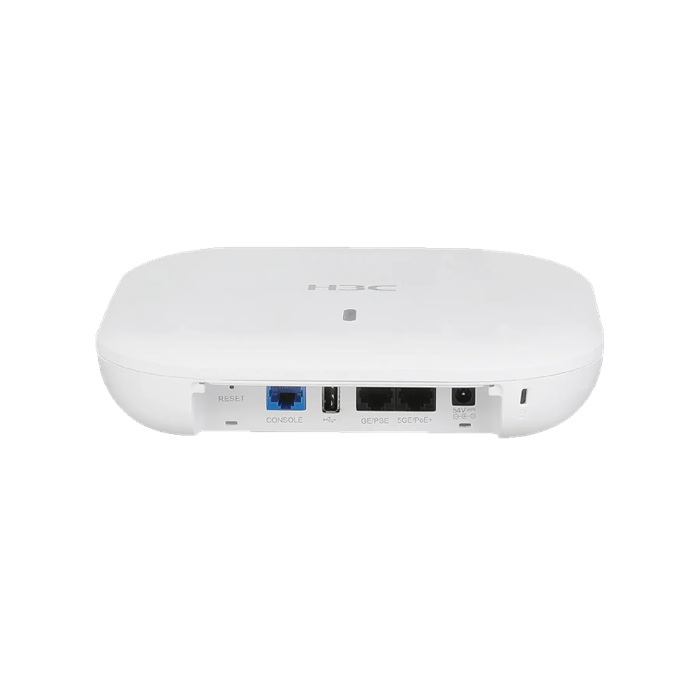

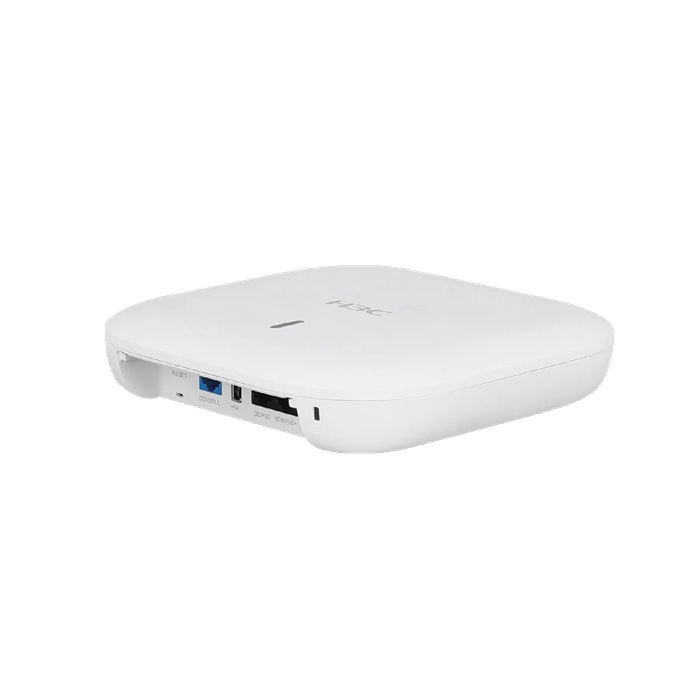

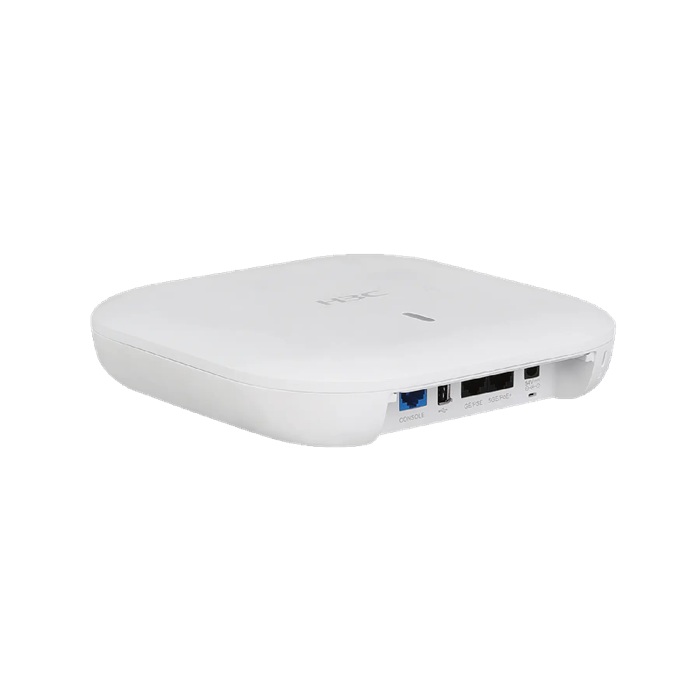

H3C WA6622 Best price in Dubai UAE
Supports CloudAP, FitAP, and AnchorAP modes for flexible deployment across different network architectures.
Provides unified wired and wireless management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to reduce latency, improve spectrum efficiency, and support high-density connectivity.
Features BSS Coloring and Target Wake Time to reduce interference and improve power efficiency.
Offers WPA2/WPA3 security, WIPS rogue device monitoring, and encrypted CAPWAP links.
Improves network performance with intelligent RF optimization, wireless fault diagnosis, traffic management, and fast roaming using 802.11k/v/r.
Supports Layer 4–7 application identification, traffic prioritization, secure boot protection, and energy-saving technologies.
H3C WA6622 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6622 Wi-Fi 6 Dual-Radio Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 0.94 kg |
| Dimensions (W × D × H) | 215 × 215 × 45 mm (without mounting brackets) |
| Interfaces | 1 × 100/1000M/2.5G/5G Multigigabit RJ-45 PoE input; 1 × 100/1000M RJ-45 PoE output; 1 × RJ-45 management console port; 1 × USB 2.0 (2.5W) |
| PoE Input | 802.3af/at, 100/1000M/2.5G/5G Multigigabit Ethernet |
| PoE Output | 802.3af, 100/1000M Ethernet |
| Local Power Supply | 54V DC, center-positive circular plug (adapter sold separately) |
| Antenna | Built-in omnidirectional antenna; peak gain: 6 dBi at 5GHz and 2.4GHz; equivalent gain: 5 dBi per band |
| Built-in IoT Module | BLE 5.0 |
| Frequency Bands | 2.400–2.4835GHz ISM; 5.150–5.250GHz U-NII-1; 5.250–5.350GHz U-NII-2A |
| Modulation Technology | 802.11b DSSS; 802.11a/g/n/ac OFDM; 802.11ax OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5GHz: 23 dBm; 2.4GHz: 20 dBm. Combined multi-chain power, excluding antenna gain; actual power depends on local regulations. |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and CloudAP/FitAP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; bracket preinstalled on the AP |
| LED Indicators | Yellow, green and blue status LEDs for bootloader, association, operation and fault states |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Rating | IP42 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 40W including PSE and USB; 22.5W excluding PSE and USB |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU and (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 316,043 hours |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 6 AP supporting 802.11a/b/g/n/ac/AC Wave 2/ax |
| AP Operating Modes | Fit AP (wireless controller-managed), Cloud AP (H3C intelligent O&M platform) and Anchor AP; modes switchable via CLI, controller, platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Dual-Radio Configuration | 5GHz: 4×4:4, 2.4Gbps; 2.4GHz: 2×2:2, 575Mbps |
| Supported Bandwidth | 5GHz: 20/40/80MHz; 2.4GHz: 20/40MHz |
| Maximum Transmission Speed | 2.975Gbps (4×4 at 80MHz on 5GHz and 2×2 at 40MHz on 2.4GHz) |
| Maximum Clients | 1,024 total; 512 per band |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP with unicast, broadcast, DNS, DHCP or static IP AC discovery; NAT; DTLS encryption; IPv4/IPv6; AC time synchronization; dual AC tunnels; PPPoE client; IPsec in Cloud AP mode |
| RF Management | Automatic channel, transmit power and bandwidth adjustment |
| SSID and Forwarding | SSID hiding; client limits by SSID/RF; centralized, local and policy forwarding; local forwarding by SSID/VLAN; VLAN binding by interface, SSID or MAC |
| Isolation and Load Balancing | VLAN/SSID user isolation; traffic-, user- and frequency-band-based load balancing; band steering to prioritize 5GHz clients |
| Roaming | 802.11k/v smart roaming and 802.11r fast transition roaming |
| Multicast Enhancement | IGMP/MLD snooping and multicast-to-unicast conversion |
| Location and IoT | BLE/RSSI location in Fit AP mode; IoT expansion through third-party RFID or Zigbee gateways via the PSE port |
| Mesh and Hotspot | Mesh links, link security and multi-hop Mesh; wireless probing; Hotspot 2.0 in Fit AP mode; Bonjour gateway for mDNS across VLANs |
| Authentication | Local/remote 802.1X, MAC and Portal authentication; guest/captive portal; portal MAC-trigger; PSK, Private-PSK and PPSK; Google, Facebook and Twitter authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP v0/MSCHAPv2, EAP-FAST, PEAP v1/GTC and EAP-SIM |
| Wireless Security | TKIP, CCMP, AES, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise and Enhanced Open (OWE) |
| Security Features | Packet and MAC filtering, broadcast storm suppression, EAD, management frame protection, WIPS and IP Source Guard (IPSG) |
| Layer 2/Layer 3 | Static/DHCP IP; DHCP server/client/relay; NAT, NAT66 and NAT logging; LLDP; STP; IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Continued client service during AC tunnel disconnection; Doctor AP diagnostics in Fit AP mode; spectrum analysis; 802.11ax-only access; intelligent bandwidth guarantee; port aggregation; broadcast suppression; weak-signal client blocking; roaming navigation and relinking; RF channel reuse optimization; fast client-data forwarding; reduced client sleep time; automatic software recovery |
| QoS | WMM/EDCA; TOS/DSCP priority marking and mapping; QoS policies by SSID/VLAN; Layer 2–4 filtering and classification; CAR; per-client and per-SSID bandwidth management; dynamic bandwidth; ATF; CAC; Layer 2–7 application identification; SIP-based SQA and UCC audio/video prioritization |
| Power Saving | Green AP mode, U-APSD and SM Power Save |
| Management and Maintenance | Cloud AP web management via HTTP/HTTPS; SNMP v1/v2c/v3; MIB RFC 1213 and RFC 3418; SSH v2, Telnet, FTP and TFTP; CLI; Syslog in Cloud AP mode; secure boot; NETCONF in Cloud AP mode |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/AC Wave 2/ax, 802.11d/e/h/i/w/u, 802.11k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certification | Wi-Fi 6, WMM, WPA/WPA2/WPA3 Enterprise and Personal (SAE), Enhanced Open (OWE) |
