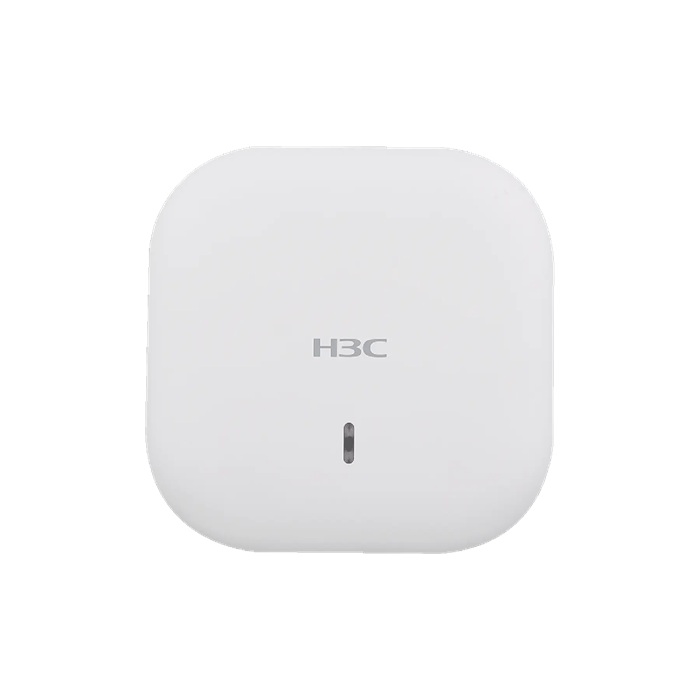

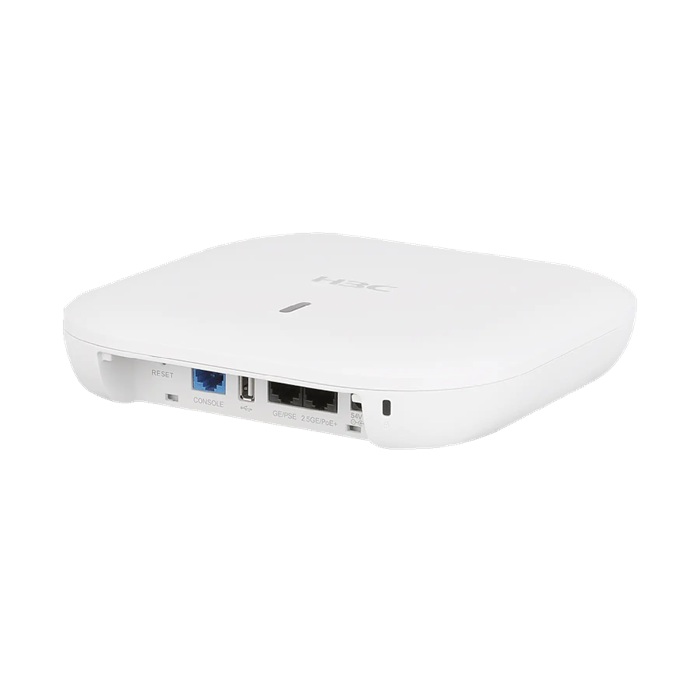

H3C WA6330 Best price in Dubai UAE
Supports CloudAP, FitAP, and AnchorAP modes for flexible deployment.
Provides unified wired and wireless management via Cloudnet and AD-Campus.
Uses Wi-Fi 6 OFDMA and MU-MIMO for efficient, low-latency connectivity.
Enhances network capacity with BSS Coloring and TWT.
Supports WPA2/WPA3 security, rogue device detection, and DTLS encryption.
H3C WA6330 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6330 Wi-Fi 6 Triple-Radio High-Performance Access Point - 9801A23V Distributor for Africa dsrtech.ae, H3C Dubai
| Weight | 0.94 kg |
| Dimensions (W × D × H) | 215 × 215 × 45 mm (without mounting brackets) |

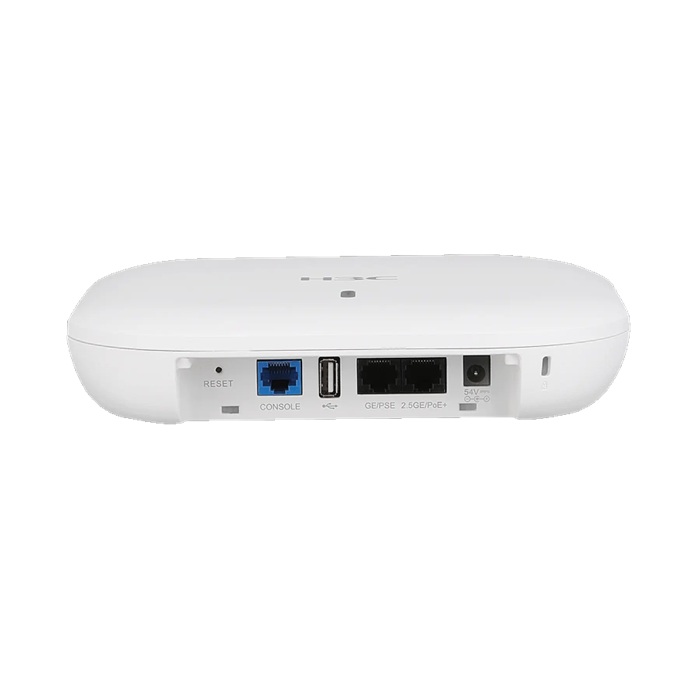

| Interfaces | 1 × 10/100/1000M/2.5G RJ-45 PoE input, 1 × 10/100/1000M RJ-45 PoE output, 1 × RJ-45 management console, 1 × USB 2.0 (2.5W) |
| PoE Input | IEEE 802.3af/at, 10/100/1000M/2.5G Ethernet |
| PoE Output | IEEE 802.3af, 10/100/1000M Ethernet |
| Local Power Supply | 54V DC center-positive adapter (sold separately) |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | Peak: 6 dBi at 5 GHz and 2.4 GHz; equivalent: 5 dBi at both bands |
| Built-in IoT Module | BLE 4.2 |
| Frequency Bands | 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.850 GHz |
| Modulation Technology | DSSS (802.11b), OFDM (802.11a/g/n/ac), OFDMA (802.11ax) |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 23 dBm; 2.4 GHz: 23 dBm |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5–95% non-condensing, operating and storage |
| Protection Class | IP42 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 34 W including PSE and USB; 16.5 W excluding PSE and USB |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU, (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 419,785 hours |
