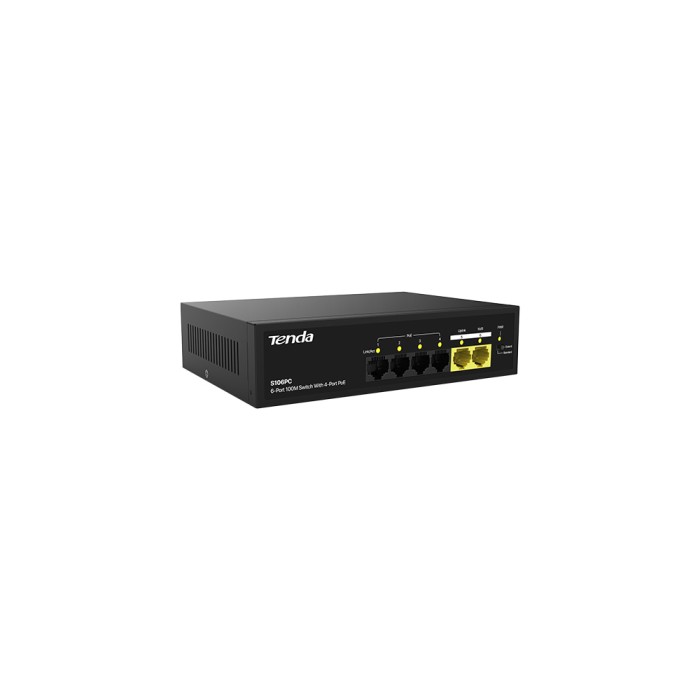

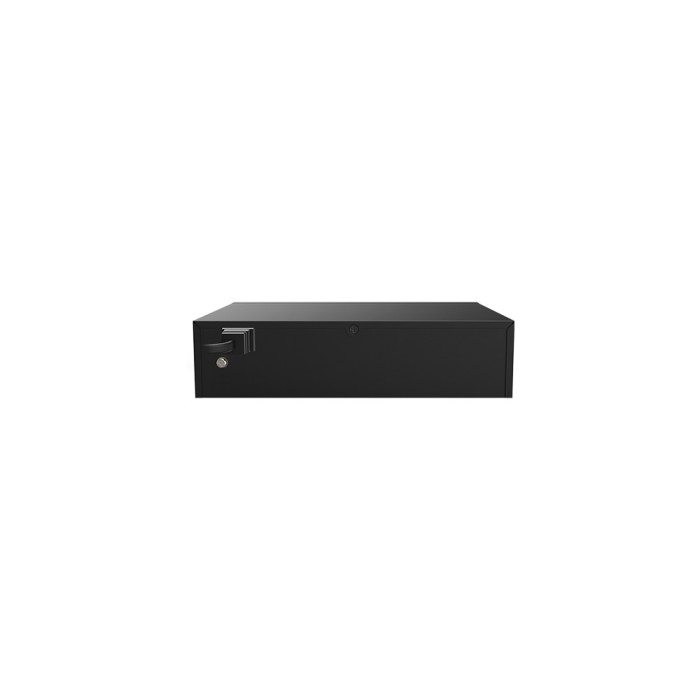

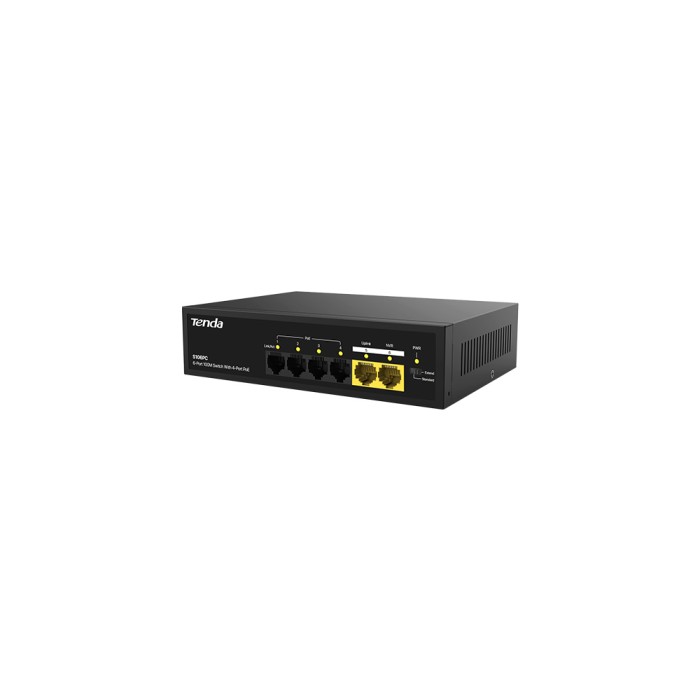

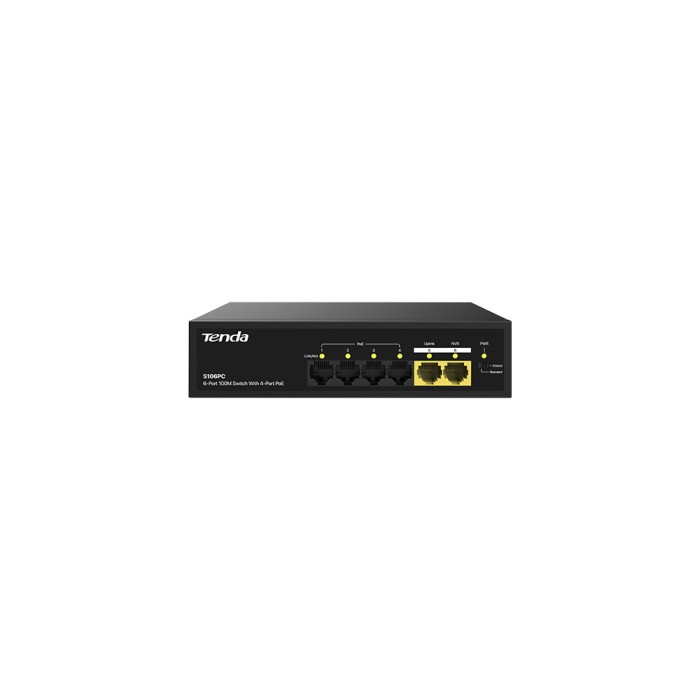

Tenda S106PC 6-Port 100M Lite PoE Switch with 4-Port PoE
- Supports desktop and wall-mounting
- Support two modes of Standard,Extend
- Single port output power 30W,maximum output power 50W
- 4xPoE+ 10/100Mbps RJ45 ports,2x10/100Mbps RJ45 ports
Hardware
Network standards
IEEE802.3, IEEE802.3u, IEEE802.3x
LED Indicator
6x Link/Act LED indicators
1 x Power LED indicator
Interfaces
4x10/100 Base-TX Ethernet Ports(Data/Power)
2x10/100 Base-TX Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
175x127x43mm(LxWxH)
Level of protection
4KV
Forwarding mode
Store-and-forward
Switch capacity
1.2G
Packet forwarding rate
0.89 Mpps
MAC address table
1K
PoE budget
Compatible with IEEE802.3af/at
Whole device: 55W
Input voltage
190－240V AC 50/60Hz
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting: Not support
Environment
Operating temperature: 0C - 40C
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%), non-condensing
Storage humidity: (5% - 90%), non-condensing
