H3C 9801A4L7 Best price in Dubai UAE
Delivers high-performance Wi-Fi 7 connectivity with a triple-radio 4×4 MIMO design across 2.4 GHz, 5 GHz, and 6 GHz bands, providing up to 18.67 Gbps aggregated throughput.
Supports 320 MHz channels, 4096-QAM, MLO, and enhanced OFDMA for faster speeds, higher capacity, and low-latency applications.
Provides reliable high-speed connectivity with 10GbE and 10G SFP+ uplinks, redundant networking, and up to 400 m PoE+ power delivery.
Supports flexible CloudAP, FitAP, and AnchorAP deployment modes with H3C Cloudnet and AD-Campus for centralized network management.
Integrates Bluetooth, USB, and PoE-out interfaces for IoT connectivity, positioning services, and smart device expansion.
Enhances wireless performance with intelligent RF optimization, application control, fast roaming, and automated wireless fault diagnosis.
Provides strong network protection with WPA2/WPA3, WIPS, CAPWAP/DTLS security, secure boot, and AI-powered dynamic power saving.
H3C 9801A4L7 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7539 – Wi-Fi 7 Triple-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.4 kg |
| Dimensions (W × D × H) | 225 × 225 × 47.2 mm |

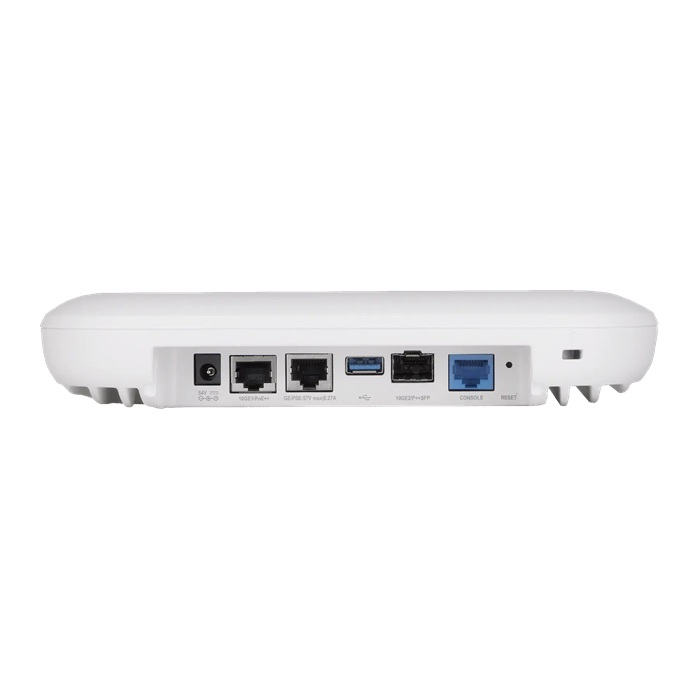

| Interfaces | 1 × 10G Multigigabit RJ-45; 1 × 10G SFP+; 1 × Gigabit RJ-45 |
| Console Port | 1 × RJ-45 management console port |
| USB Port | 1 × USB 2.0, 2.5W |
| PoE | 802.3bt/at input; 802.3af output |
| Local Power | 54V DC |
| Antenna | Built-in omni-directional; up to 6.4dBi gain |
| IoT Module | BLE 5.4 |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Maximum Transmit Power | 26dBm on 2.4GHz, 5GHz and 6GHz |
| Installation | Wall or ceiling mounting |
| Operating Temperature | –10°C to +50°C |
| Humidity | 5% to 95%, non-condensing |
| Protection | IP42; 4KV common-mode surge protection |
| Maximum Power Consumption | 29.9W via 802.3bt; 24.5W via 802.3at; 47.4W via DC |
| MTBF | 2,321,400 hours at 25°C |
Software Specifications
| Product Type | Indoor triple-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AP |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 6GHz 4×4:4, 5GHz 4×4:4 and 2.4GHz 4×4:4 |
| Channel Bandwidth | 6GHz up to 320MHz; 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 18.67Gbps |
| Maximum Clients | 1,536 |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, MLO, Multi-RU, preamble puncturing, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring, MU-MIMO and OFDMA |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Forwarding | Centralized, local and policy forwarding |
| Load Balancing | Traffic-, user- and frequency-based load balancing |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK and Private-PSK |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP and CCMP |
| Network Protocols | CAPWAP, DTLS, LACP, LLDP, STP, PPPoE and IPsec |
| RF Management | Automatic channel, power and bandwidth adjustment; spectrum analysis |
| QoS | WMM, QoS, CAC, CAR and bandwidth management |
| IoT & Location | BLE, RSSI location and RFID/Zigbee gateway support |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| Hotspot | Hotspot 2.0 support in Fit AP mode |
| Management | Web GUI, SNMP, CLI, SSH, Telnet, Syslog and Netconf |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Layer 2/3 | DHCP, NAT/NAT66, LLDP, STP, ACL, DNS, FTP and TFTP |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis and intelligent bandwidth guarantee |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.3af/at/bt; 802.3bz/az |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA2 and WPA3 |
