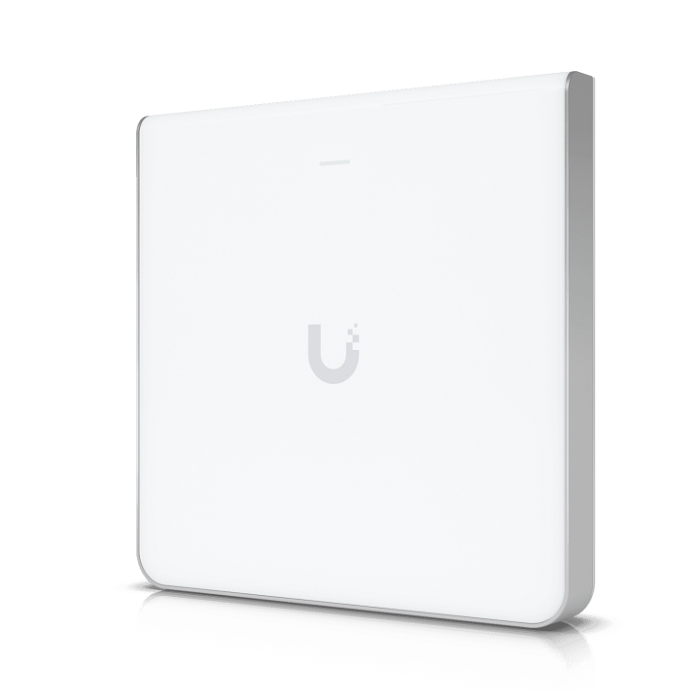

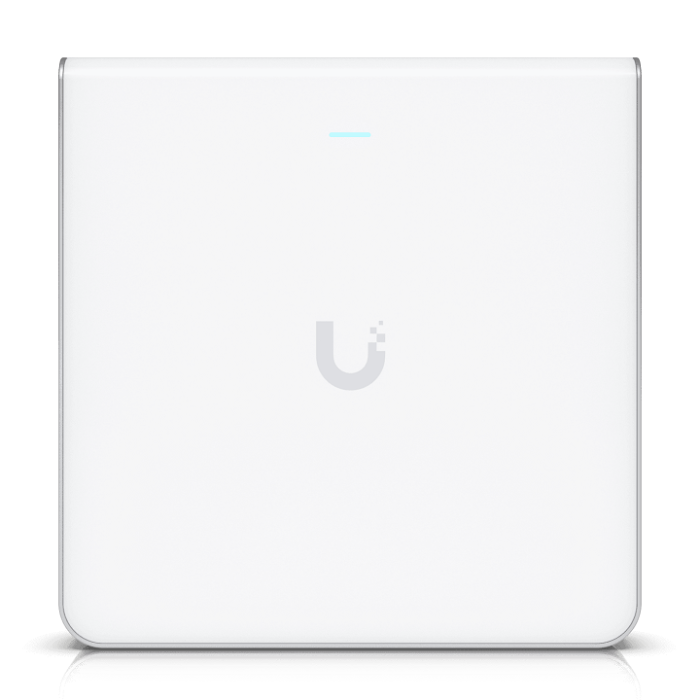

Ubiquiti U6 Enterprise In-Wall Wall-mounted WiFi 6E Access Point - U6-Enterprise-IW
Wall-mounted WiFi 6E AP with 10 spatial streams, 6 GHz support, and a built-in 4-port switch. Designed for high-density office networks.
| Device Specifications | |
|---|---|
| Dimensions | 159.7 × 156.7 × 33.8 mm (6.3 × 6.2 × 1.3") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 115 m (1,250 ft) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |

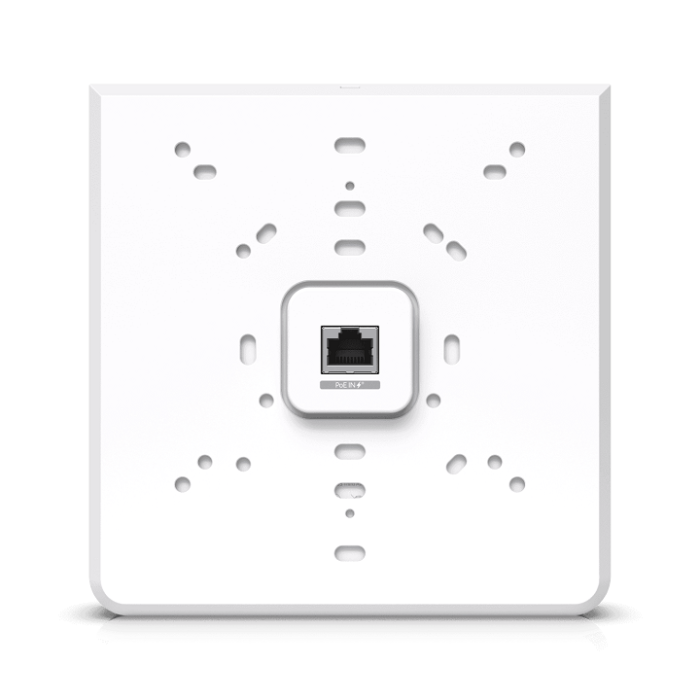

| Mounting | Wall (Mount Included) |
| Power Method | PoE+ (operation) PoE++ (required for PoE output) |
| Performance | |
| MIMO |
6 GHz: 4×4 (DL/UL MU-MIMO) 5 GHz: 4×4 (DL/UL MU-MIMO) 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz: 4.8 Gbps (BW160) 5 GHz: 4.8 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain |
6 GHz: 5.8 dBi 5 GHz: 5.8 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 26 dBm 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11ax (WiFi 6/6E) 7.3 Mbps – 4.8 Gbps (MCS0–MCS11, NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps – 3.4 Gbps (MCS0–MCS9, NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps – 600 Mbps (MCS0–MCS31, HT 20/40) |
| Wireless & Network Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal |
Custom Branding ✓ Voucher Authentication ✓ Payment Authentication ✓ External Portal Support ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 21W (excluding PoE output) |
| Supported Voltage Range | 44–57V DC |
| Networking Interfaces |

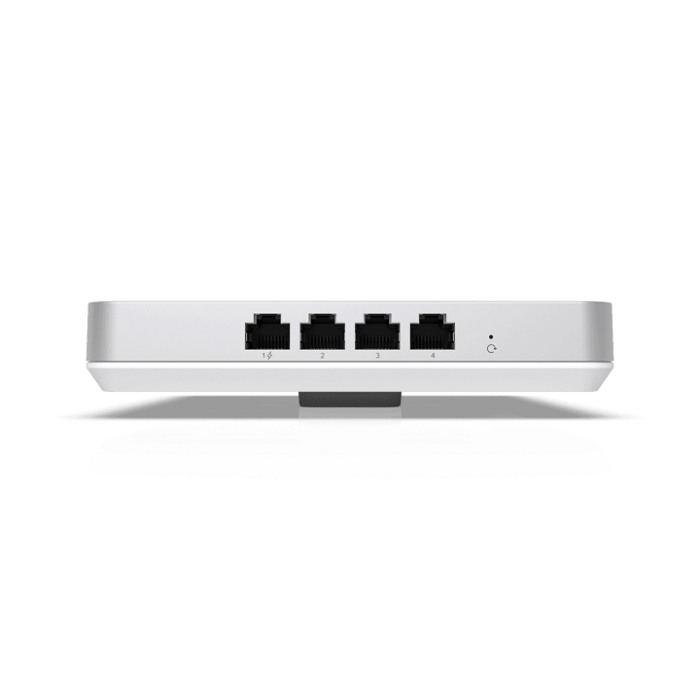

(1) Data In: 1/2.5 GbE RJ45 (4) Data Out: GbE RJ45 Built-in switch with (1) PoE output (requires PoE++) |
| Weight | 884 g (1.9 lb) |
| Management | Ethernet, Bluetooth |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| LEDs | System (White/Blue) |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 04643-24-08356 |
| Operating Frequency |
US/CA: 2400–2472 MHz 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz 6100–7125 MHz Worldwide: 2400–2483.5 MHz 5150–5725 MHz 5925–7125 MHz |
| Ambient Operating Temperature | -30 to 60C (-22 to 140F) |
| Ambient Operating Humidity | 5% to 95% noncondensing |
| Software Requirements | |
| UniFi Network Application | Version 6.0.45 and later |
