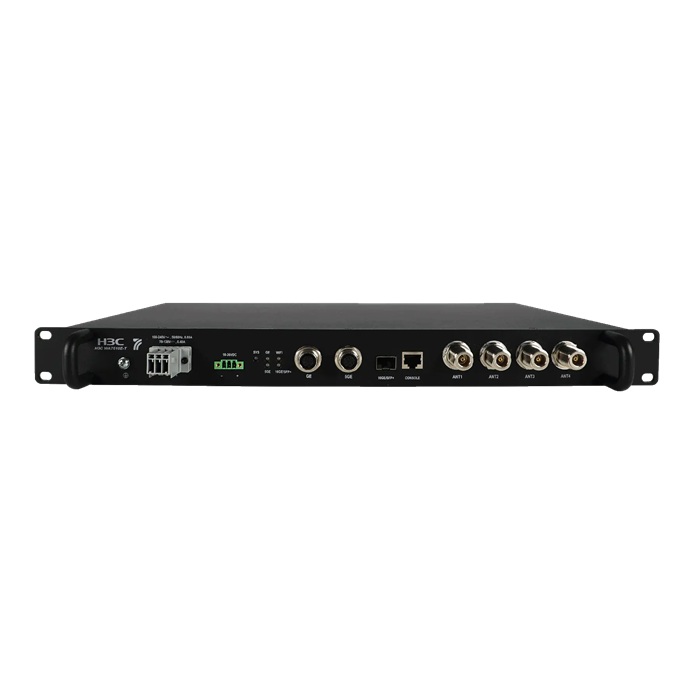

H3C WA7610E-T Best price in Dubai UAE
Supports Wi-Fi 7 with 4×4 MIMO and speeds up to 11.529 Gbps.
Features 320 MHz channels, 4096-QAM, MLO, and enhanced OFDMA.
Supports flexible switching between 2.4 GHz, 5 GHz, and 6 GHz bands.
Provides 1×5G Ethernet M12 and 1×10G SFP+ ports.
Features a full-metal enclosure for strong electromagnetic interference resistance.
Operates reliably in industrial temperatures from -40°C to 55°C.
Supports Cloudnet and AD-Campus management, WPA2/WPA3 security, intelligent RF optimization, and fast roaming.
H3C WA7610E-T Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7610E-T – Wi-Fi 7 Single-Radio Wireless Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 3.84kg |
| Dimensions (W × D × H) | 260 × 482.6 × 43.7 mm (without mounting brackets) |
| Interfaces | 1 × 100/1000M/2.5G/5G M12 Ethernet; 1 × 1000M/10G SFP+ optical port; 1 × 10/100/1000M M12 Ethernet |
| Console Port | 1 × RJ-45 management console port |
| Power Supply | 100–240VAC or 70–143VDC via 3-pin WAGO connector; 18–36VDC via 3-pin Phoenix connector |
| Antenna Type | External antenna; gain depends on the antenna used |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz; available bands and channels depend on the regulatory domain |
| Modulation Technology | DSSS, OFDM and OFDMA |
| Modulation Modes | Up to 4096-QAM (802.11be) |
| Data Rates | 802.11b: up to 11Mbps; 802.11a/g: up to 54Mbps; 802.11n: up to 600Mbps; 802.11ac: up to 6,933Mbps; 802.11ax: up to 9,608Mbps; 802.11be: up to 23,059Mbps |
| Maximum Transmit Power | 6GHz: 30dBm; 5GHz: 30dBm; 2.4GHz: 30dBm. Actual power depends on local regulations. |
| Power Adjustment | Configurable in 1dBm increments |
| Installation | Rack or slide-rail mounting; mounting bracket sold separately |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | –40°C to +55°C, depending on installation environment |
| Storage Temperature | –40°C to +85°C |
| Humidity | 0%–100%, non-condensing (operating and storage) |
| Protection Rating | IP42 |
| Surge Protection | 6kV common-mode |
| Power Consumption | 16W maximum (local power supply; actual consumption varies with usage) |
| Safety Standards | IEC/EN 62368-1, GB 4943.1 |
| EMC Standards | EN 301 489-1/-3/-17, EN 55032/55035, CISPR 32/35, AS/NZS CISPR 32, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11, IEC/EN 61000-3-2/-3, IEC/EN 61000-6-2, EN 50155, EN 50121-3-2, IEC 62236-3-2 and ETSI EN 300 386 |
| Radio Standards | ETSI EN 300 328, ETSI EN 301 893, FCC Part 15E, ETSI EN 303 687 |
| RoHS Standards | Directive 2011/65/EU, EN IEC 63000:2018 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| Vibration and Impact Standards | GB/T 2423.56-2018, GB/T 2423.5-2019, GB/T 21563-2018, IEC 61373:2010 |
| MTBF (25°C) | 836,580 hours |
Software Specifications
| Product Type | On-board access point supporting IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Operating Modes | Fit AP, Cloud AP and Anchor AP; modes can be switched through CLI, wireless controller, intelligent O&M platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | Single-radio mode: 6GHz 4×4:4 up to 11.529Gbps; 5GHz 4×4:4 up to 5.765Gbps; 2.4GHz 4×4:4 up to 1.376Gbps |
| Channel Bandwidth | 6GHz: up to 320MHz; 5GHz: up to 160MHz; 2.4GHz: up to 40MHz |
| Maximum Transmission Speed | 6GHz: 11.529Gbps; 5GHz: 5.765Gbps; 2.4GHz: 1.376Gbps |
| Maximum Clients | 512 per radio band as specified; actual capacity depends on the environment |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, Multi-Link Operation (MLO), preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | Target Wake Time (TWT), BSS Coloring/spatial reuse, MU-MIMO and OFDMA |
| WLAN Technologies | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, DTLS encryption, IPv4/IPv6, AC discovery, NAT, time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| WLAN Management | Automatic RF adjustment, SSID hiding, client limits, centralized/local/policy forwarding, VLAN binding, user isolation, load balancing, band steering, 802.11k/v/r roaming, multicast enhancement, BLE/RSSI location, Mesh, wireless probing, Hotspot 2.0 and Bonjour gateway |
| User Authentication | 802.1X, MAC, Portal, PSK, Private-PSK/PPSK and EAP; Google, Facebook and Twitter authentication in Cloud AP mode |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, WEP40/104, packet and MAC filtering, broadcast suppression, EAD, management frame protection, WIPS and IPSG |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66/NAT logging, LLDP, STP and IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, intelligent bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming navigation, client relinking, channel reuse, fast forwarding, sleep-time optimization and software recovery |
| QoS | WMM, traffic prioritization and classification, user bandwidth management, ATF, CAC, SQA and UCC |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Management and Maintenance | Web GUI (HTTP/HTTPS), SNMP v1/v2c/v3, MIB, SSH v2.0, Telnet, FTP, TFTP, CLI, Syslog, secure boot and Netconf |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be, 802.11d/e/h/i/w/u/k/v/r, 802.3bz, 802.3az and 802.15.1 |
| Wi-Fi Certifications | Wi-Fi Alliance Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE) |
