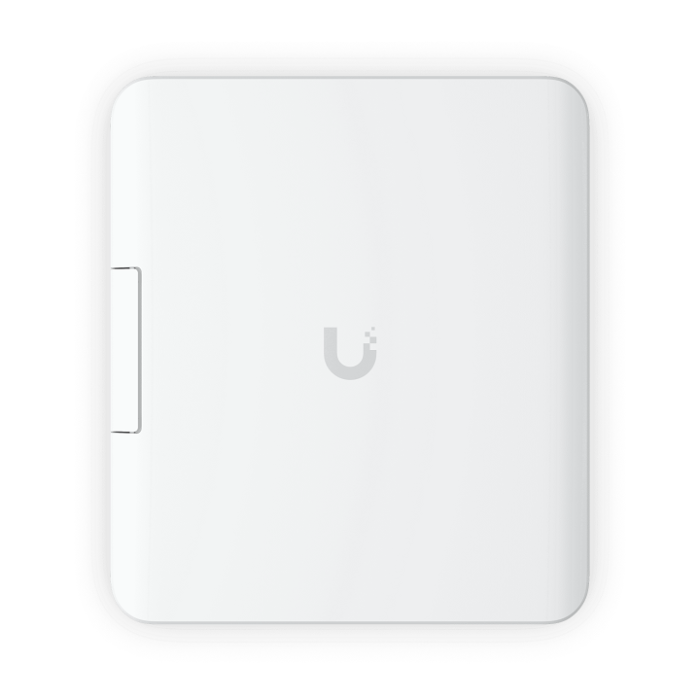

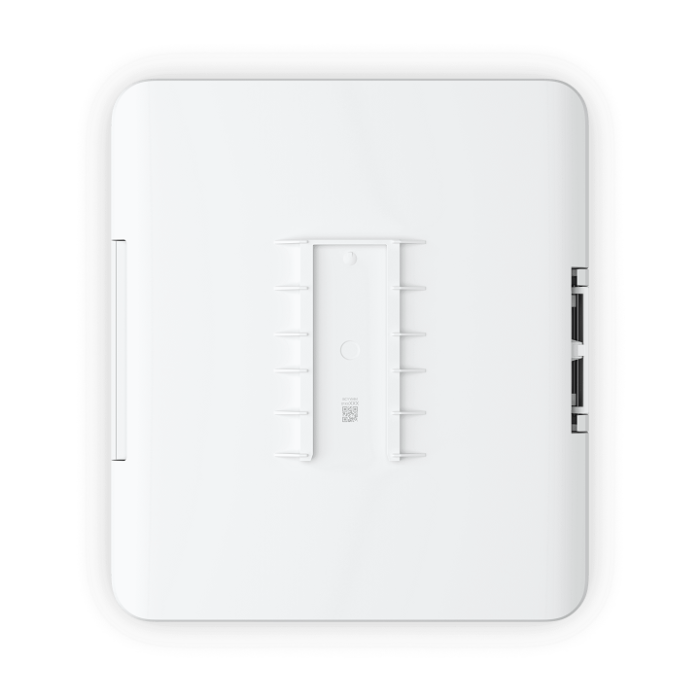

Ubiquiti Flex Utility Switch - USW-Flex-Utility

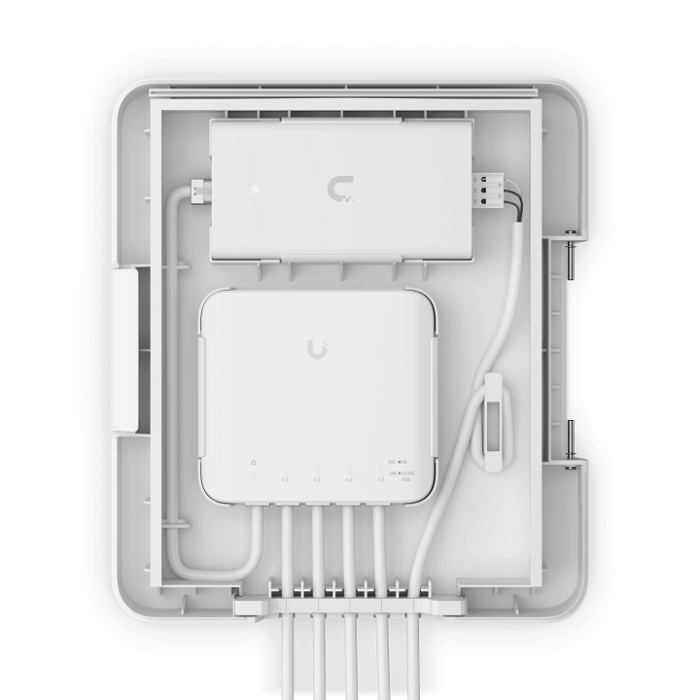

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex.
Compatibility: USW-Flex
| Device & Power Adapter Specifications | |
|---|---|
| Dimensions | |
| Enclosure | 249 x 218 x 60 mm (9.8 x 8.6 x 2.4") |
| Adapter | 118.5 x 63 x 34.7 mm (4.7 x 2.5 x 1.4") |
| Electrical Specifications | |
| Output Voltage | 54V, 1.11A |
| Rated Voltage | 100–240V AC |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (–) |
| Input Current | 1.5A Max. |
| Efficiency | 86%+ |
| Output Ripple | 200 mVpp |
| Line Regulation | < 1% |
| Load Regulation | < 3% |
| Power Supply Type | AC/DC |
| Surge Protection | 4kV Differential & Common Mode |
| Environmental Specifications | |
| Storage Temperature | -30 to 70C (-22 to 158F) |
| Operating Temperature | -20 to 60C (-4 to 140F) |
| Operating Humidity | 5% to 90% (non-condensing) |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
