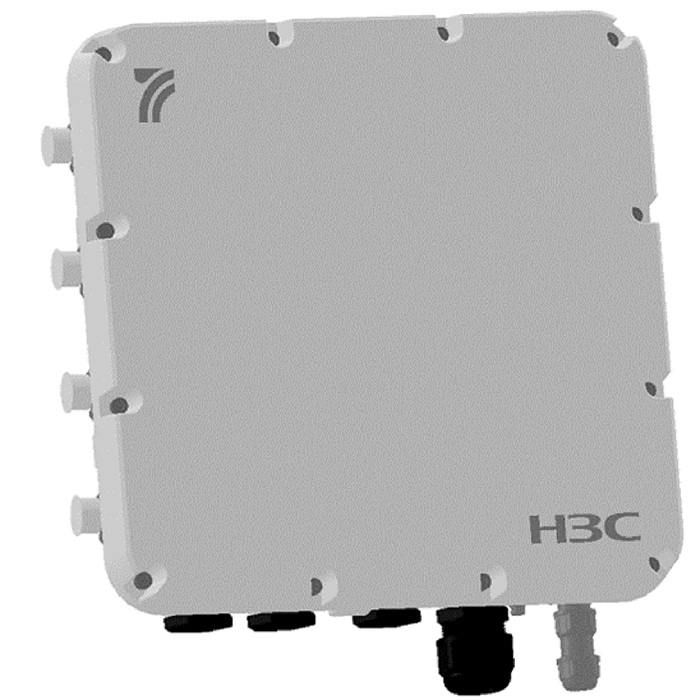

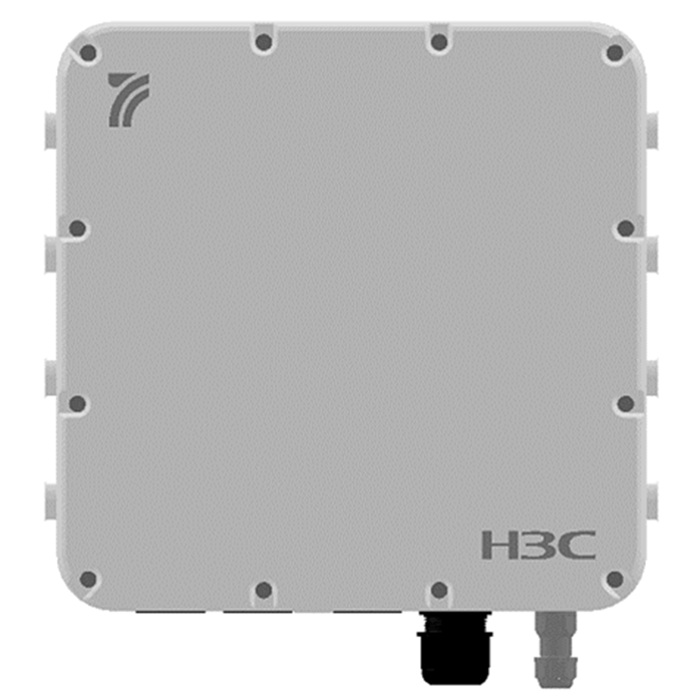

H3C WA7628XE Best price in Dubai UAE
Supports Wi-Fi 7 with 4×4 MIMO and speeds up to 17.294 Gbps.
Features 320 MHz channels, 4096-QAM, MLO, and enhanced OFDMA.
Provides 10GbE and 10G SFP+ uplinks with redundant connectivity and PoE+ support up to 400 metres.
Supports dual 5 GHz operation through flexible 6 GHz radio switching.
Enables CloudAP, FitAP, and AnchorAP modes with Cloudnet and AD-Campus management.
Includes Bluetooth connectivity and AI-powered dynamic power saving.
Offers WPA2/WPA3 security, intelligent RF optimization, fast roaming, and wireless fault diagnosis.
H3C WA7628XE Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7628XE – Wi-Fi 7 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Dimensions (W × D × H) | 282 × 282 × 90 mm (without mounting brackets) |
| Ethernet Interfaces | 1 × 100/1000M/2.5G/5G/10G RJ-45 PoE input; 1 × 1000M/2.5G/5G/10G SFP+ optical PoE input; 1 × 10/100/1000M RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console port |
| PoE Support | Input: IEEE 802.3bt/at; Output: IEEE 802.3af |
| Antenna Type | Built-in directional antenna (default); external antenna support |
| Antenna Gain | 6GHz: 10dBi; 5GHz: 11dBi; 2.4GHz: 11dBi. External antenna gain depends on the antenna used. |
| Built-in IoT Module | BLE 5.4 |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz; supported bands and channels depend on the regulatory domain. |
| Modulation Technology | DSSS, OFDM and OFDMA |
| Modulation Modes | Up to 4096-QAM (802.11be) |
| Data Rates | 802.11b: up to 11Mbps; 802.11a/g: up to 54Mbps; 802.11n: up to 600Mbps; 802.11ac: up to 6,933Mbps; 802.11ax: up to 9,608Mbps; 802.11be: up to 23,059Mbps |
| Maximum Transmit Power | 6GHz: 30dBm; 5GHz: 30dBm; 2.4GHz: 33dBm. Actual power depends on local regulations. |
| Power Adjustment | Configurable in 1dBm increments |
| Reset Button | Factory reset and CloudAP/FitAP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or pole mounting; mounting bracket sold separately |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 0%–100%, non-condensing (operating and storage) |
| Protection Rating | IP68 |
| Surge Protection | 6kV common-mode |
| Safety Standards | IEC/EN 62368-1, GB 4943.1 |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, FCC Part 15E, ETSI EN 300 440, ETSI EN 303 687 |
| RoHS Standard | EN IEC 63000:2018 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
Software Specifications
| Product Type | Outdoor dual-radio access point supporting IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Operating Modes | Fit AP, Cloud AP and Anchor AC; modes can be switched through CLI, wireless controller, H3C intelligent O&M platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | Dual-radio: 5GHz 4×4:4 (5.765Gbps) + 2.4GHz 4×4:4 (1.376Gbps); 6GHz 4×4:4 (11.529Gbps) + 5GHz 4×4:4 (5.765Gbps); dual 5GHz 4×4:4 radios (5.765Gbps each); 6GHz + 2.4GHz; tri-radio configurations also supported as specified. |
| Channel Bandwidth | 6GHz: up to 320MHz; 5GHz: up to 160MHz; 2.4GHz: up to 40MHz |
| Maximum Transmission Speed | 17.294Gbps (6GHz + 5GHz); 12.905Gbps (6GHz + 2.4GHz); 11.530Gbps (dual 5GHz); 7.141Gbps (5GHz + 2.4GHz); 15.099Gbps and 9.335Gbps in specified tri-radio configurations |
| Maximum Clients | 1,024; actual capacity depends on the environment |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, Multi-Link Operation (MLO), preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | Target Wake Time (TWT), BSS Coloring/spatial reuse, MU-MIMO and OFDMA |
| WLAN Technologies | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, DTLS encryption, IPv4/IPv6, AC discovery, NAT, time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| WLAN Management | RF adjustment, SSID hiding, client limits, centralized/local/policy forwarding, VLAN binding, user isolation, load balancing, band steering, 802.11k/v/r roaming, multicast enhancement, BLE/RSSI location, IoT gateway support, Mesh, wireless probing, Hotspot 2.0 and Bonjour gateway |
| User Authentication | 802.1X, MAC, Portal, PSK, Private-PSK/PPSK and EAP; Google, Facebook and Twitter authentication in Cloud AP mode |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, WEP, packet and MAC filtering, broadcast suppression, EAD, management frame protection, WIPS and IPSG |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66/NAT logging, LLDP, STP and IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, intelligent bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming navigation, client relinking, channel reuse, fast forwarding, sleep-time optimization and software recovery |
| QoS | WMM, QoS prioritization, traffic classification, user bandwidth management, ATF, CAC, SQA and UCC |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Management and Maintenance | Web GUI (HTTP/HTTPS), SNMP v1/v2c/v3, MIB, SSH v2.0, Telnet, FTP, TFTP, CLI, Syslog, secure boot and Netconf |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be, 802.11d/e/h/i/w/u/k/v/r, 802.3af/at/bt, 802.3az and 802.15.1 |
| Wi-Fi Certifications | Wi-Fi Alliance Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE) |
