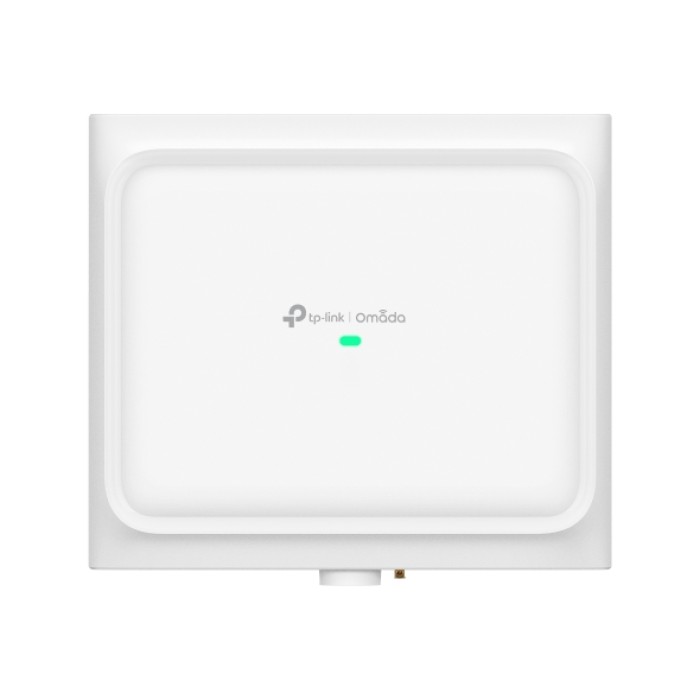

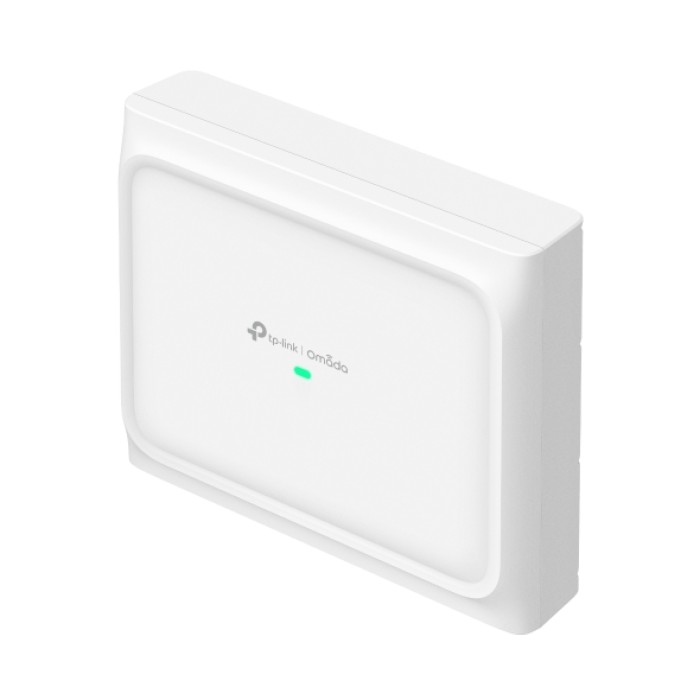

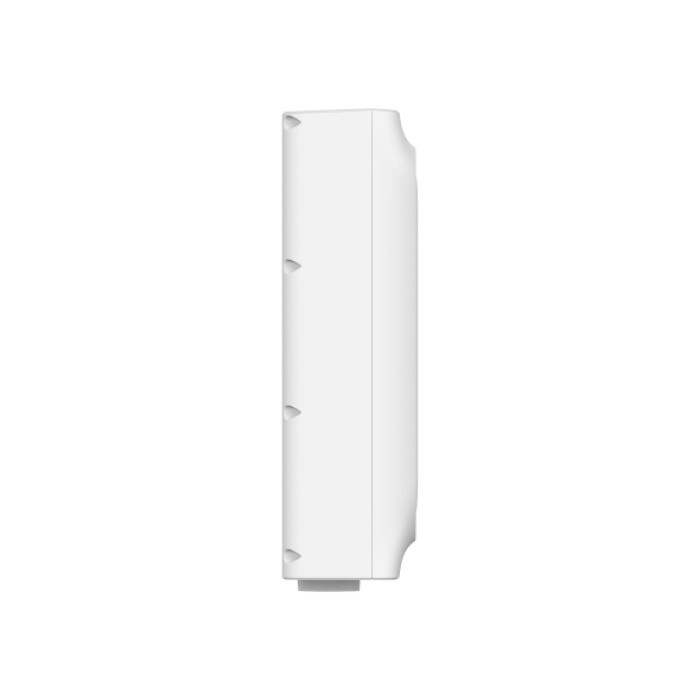

Omada by Tplink EAP650 D120-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30C to +70C operating range.
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.
| Hardware Features | |
|---|---|

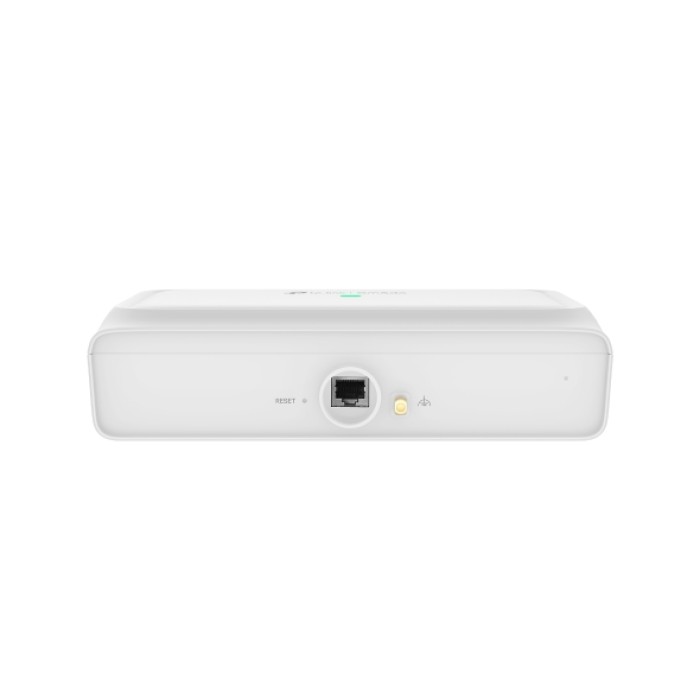

| Interface | 1x Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE • 48V Passive PoE |
| Max. Power Consumption | • EU: 12.5W (802.3at or Passive PoE) • US: 14.7W (802.3at or Passive PoE) |
| Dimensions (W x D x H) | 230 x 207.5 x 69.7 mm (9.1 x 8.2 x 2.8 in) |
| Antenna | Built-in Directional Antennas: • 2.4 GHz: 2 x 8 dBi • 5 GHz: 2 x 10 dBi Beamwidth: 120 Horizontal, 30 Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |

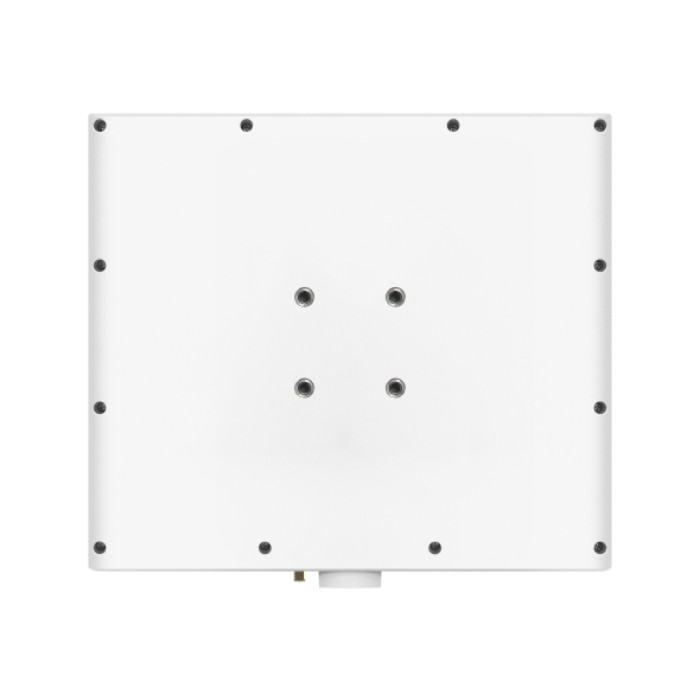

| Mounting | Optional Accessories: • APM-110: + 180 vertical, + 45 horizontal • APM-100: + 45 vertical, + 45 horizontal *Brackets sold separately |
| Wireless Features | |
| Coverage | • 2.4 GHz: 200+ m • 5 GHz: 500+ m |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | • 2.4 GHz: up to 574 Mbps • 5 GHz: up to 2402 Mbps |
| Wireless Functions | • 1024-QAM, DL/UL OFDMA • Multiple SSIDs (up to 16) • Enable/Disable Wireless Radio or SSID Broadcast • Guest Network, Automatic Channel Assignment • Transmit Power Control, MU-MIMO (2 x 2 both bands) • Omada Mesh§, Seamless Roaming (802.11k/v/r) • Band Steering, Load Balance, Airtime Fairness • Beamforming, QoS (WMM), RADIUS Accounting • MAC Authentication, Reboot/Wireless Schedule • Wireless Statistics, Static/Dynamic IP |
| Wireless Security | • Captive Portal Authentication • Access Control, MAC Filtering • Wireless Client Isolation • SSID to VLAN Mapping • Rogue AP Detection, 802.1X • WPA/WPA2/WPA3 (Personal & Enterprise) |
| Transmission Power | CE: • < 20 dBm (2.4 GHz, EIRP) • < 23 dBm (5 GHz bands 1 & 2, EIRP) • < 30 dBm (5 GHz band 3, EIRP) FCC: • < 30 dBm (2.4 GHz & 5 GHz) |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller • Omada App |
| Cloud Access | Yes, via: • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller • Omada App |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| Syslog (Local/Remote) | Yes |
| SSH | Yes |
| Web-Based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes (via Omada Cloud-Based Controller) |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | • Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide |
| System Requirements | Windows XP/7/8/10/11, Vista, Linux |
| Operating Environment | • Temperature: -30C to 70C (-22F to 158F) • Humidity: 10%–90% RH (non-condensing) |
| Storage Environment | • Temperature: -40C to 70C (-40F to 158F) • Humidity: 5%–90% RH (non-condensing) |
