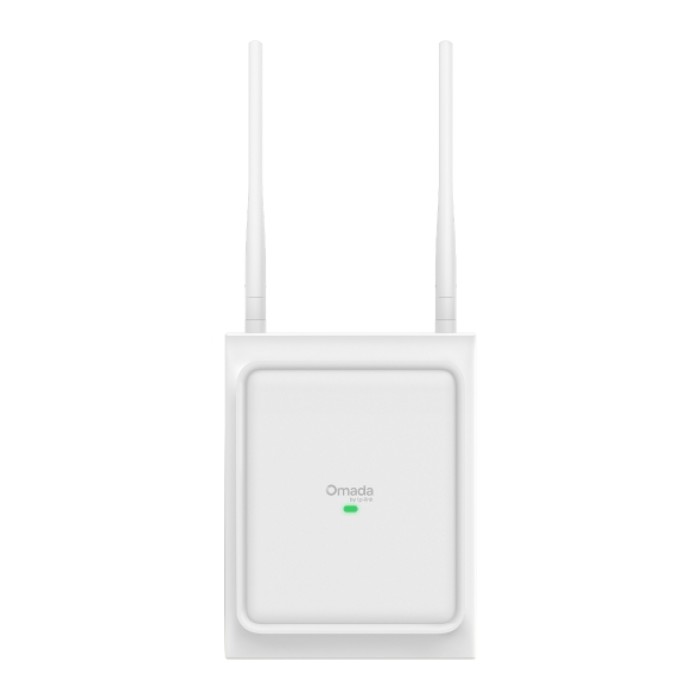

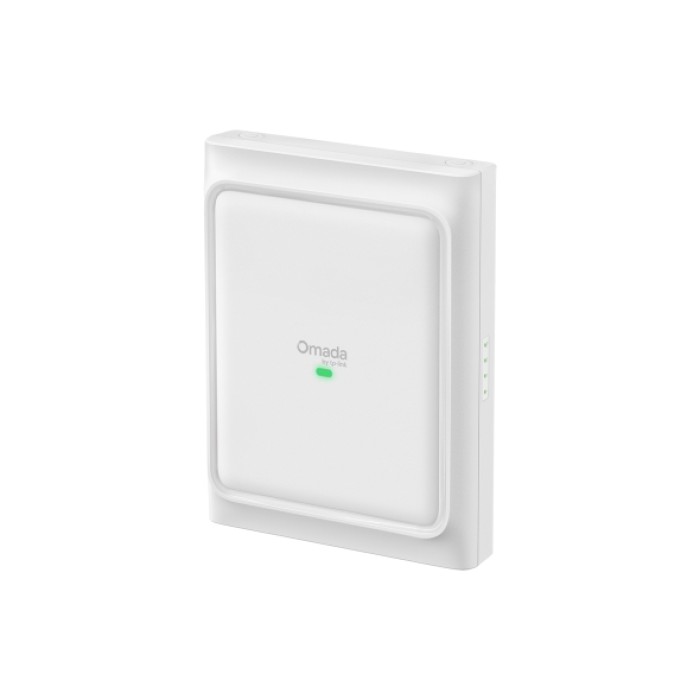

Omada by Tplink EAP725-Outdoor BE5000 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas
Directional and Omnidirectional Antennas: Freely switch between modes via software for optimal signal control.
Plug & Play Auto-Sensing Antennas: Automatically detects antenna changes and switches between internal and external antennas as needed.
4-Stream Dual-Band Wi-Fi 7: Up to 5.0 Gbps.
1X 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup.
Advanced Features: Centralized management, mesh, and seamless roaming.
| Hardware Features | |
|---|---|

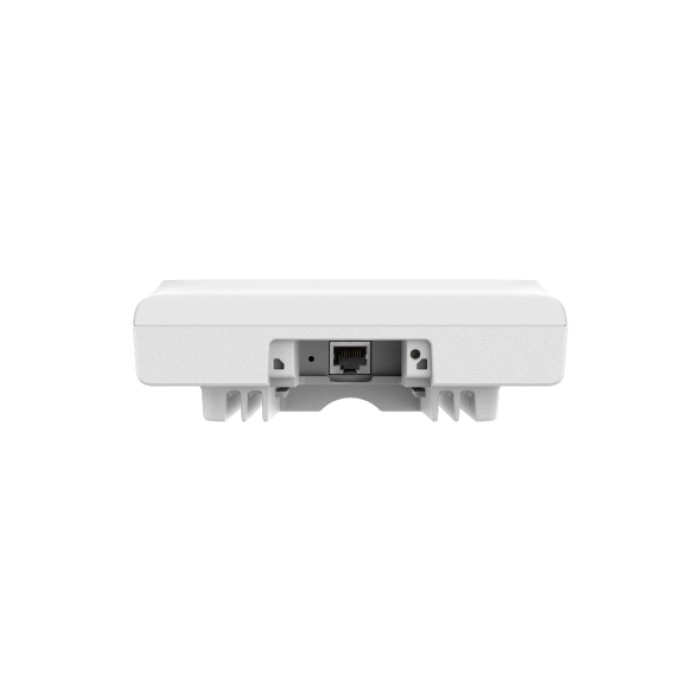

| Interface | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| Max Power Consumption | 18.4W (PoE+) |
| Dimensions (W x D x H) | 8.19 x 6.3 x 2.17 in (208 x 160 x 55 mm) |
| Antenna | 2.4 GHz: 2 x 4.5 dBi external omnidirectional antennas 2 x 8.3 dBi internal directional antennas (90° beamwidth) 5 GHz: 2 x 5.3 dBi external omnidirectional antennas 2 x 13.2 dBi internal directional antennas (45 beamwidth) Note: Gains are single-antenna peak gains. |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP66 |

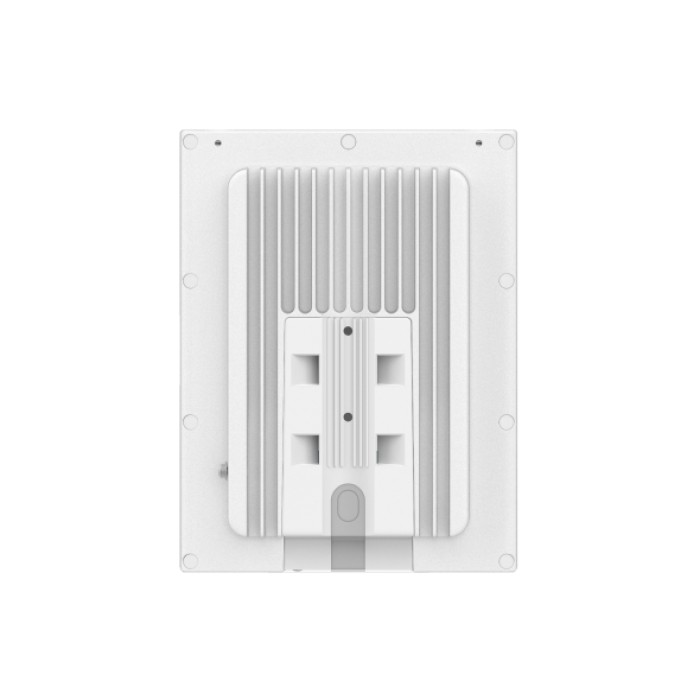

| Mounting | Pole / Wall Mounting (Kits Included) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | 4k-QAM, OFDMA, MLO, 16 SSIDs (8 per band), Radio Enable/Disable, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Omada Mesh, Seamless Roaming (802.11k/v/r), Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics (SSID/AP/Client), Static IP/Dynamic IP |
| Wireless Security | Captive Portal, Access Control, MAC Filtering, Client Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X, WPA/WPA2/WPA3 Personal & Enterprise, OWE |
| Transmission Power | CE (EIRP): 2.4 GHz: 20 dBm 5 GHz: 23 dBm (U-NII-1), 23 dBm (U-NII-2A), 30 dBm (U-NII-2C) FCC (Conducted Power): 2.4 GHz: 25 dBm 5 GHz: 26 dBm (U-NII-1), 24 dBm (U-NII-2A), 24 dBm (U-NII-2C), 26 dBm (U-NII-3) |
| Management Features | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes (Requires Omada Controller) |
| Email Alerts | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local / Remote Syslog |
| Management Access | SSH, Web-Based Management |
| Advanced Management | L3 Management, Multi-site Management, Management VLAN, Zero-Touch Provisioning |
| Others | |
| Certification | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |
| Package Content | EAP725-Outdoor Access Point Waterproof Kit Mounting Kit Installation Guide |
| System Requirements | Windows XP/Vista/7/8/10/11, Linux |
| Environment | Operating Temp: -30 to 70 C (-22 to 158 F) Storage Temp: -40 to 70 C (-40 to 158 F) Operating Humidity: 10–90% RH Storage Humidity: 5–90% RH |
